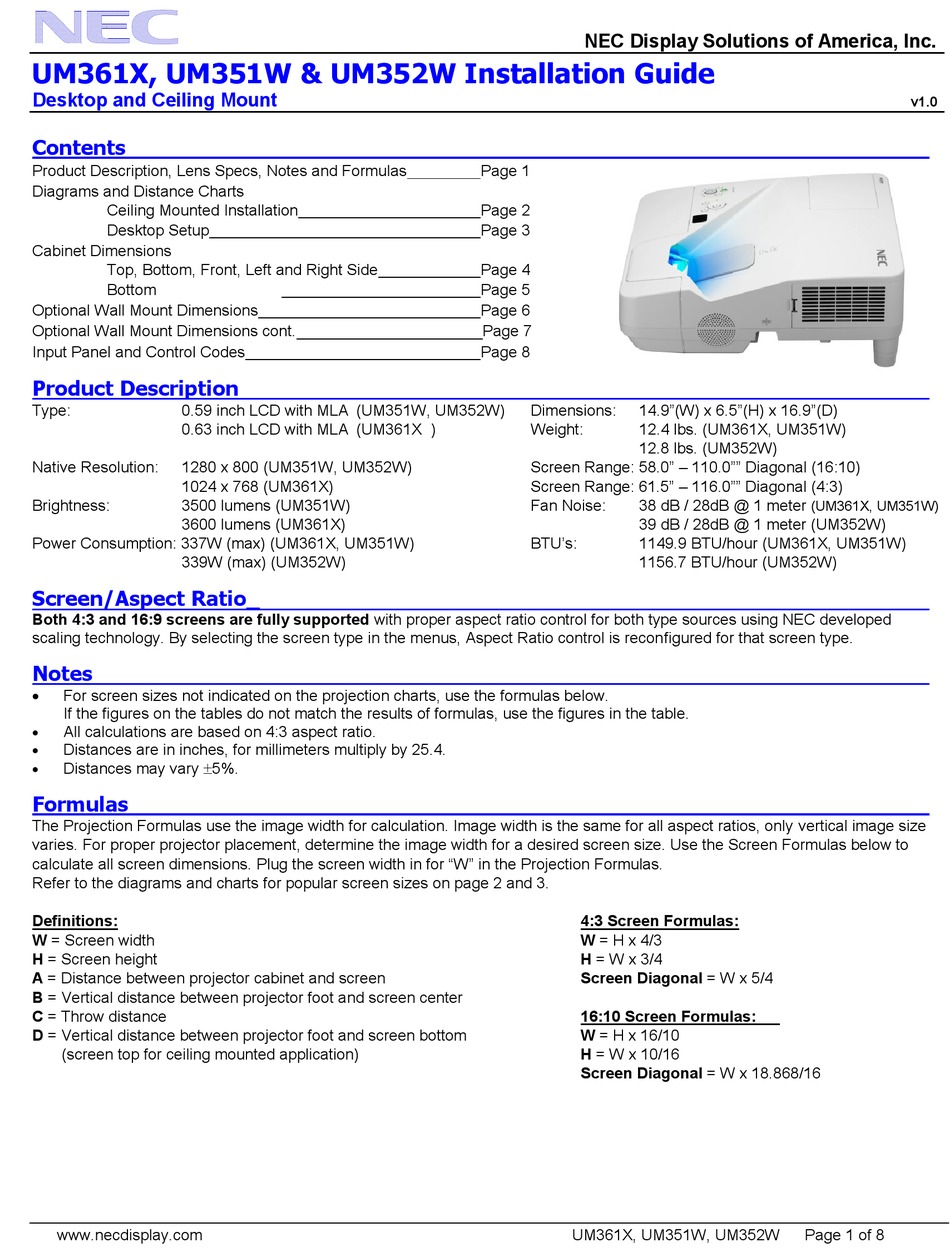

NEC UM351W Installation Manual

UM361X, UM351W & UM352W Installation Guide
Desktop and Ceiling Mount
Contents
Product Description, Lens Specs, Notes and Formulas
Diagrams and Distance Charts
Ceiling Mounted Installation
Desktop Setup
Cabinet Dimensions
Top, Bottom, Front, Left and Right Side
Bottom
Optional Wall Mount Dimensions
Optional Wall Mount Dimensions cont.
Input Panel and Control Codes

Product Description

Type: 0.59 inch LCD with MLA (UM351W, UM352W)
0.63 inch LCD with MLA (UM361X )
Native Resolution: 1280 x 800 (UM351W, UM352W)
1024 x 768 (UM361X)
Brightness: 3500 lumens (UM351W)
3600 lumens (UM361X)
Power Consumption: 337W (max) (UM361X, UM351W)
339W (max) (UM352W)
Screen/Aspect Ratio_
Both 4:3 and 16:9 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. By selecting the screen type in the menus, Aspect Ratio control is reconfigured for that screen type.
Notes

For screen sizes not indicated on the projection charts, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.
 All calculations are based on 4:3 aspect ratio.
 Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.

Formulas
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug the screen width in for "W" in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3.
Definitions:
W = Screen width
H = Screen height
A = Distance between projector cabinet and screen
B = Vertical distance between projector foot and screen center
C = Throw distance
D = Vertical distance between projector foot and screen bottom
(screen top for ceiling mounted application)
www.necdisplay.com
NEC Display Solutions of America, Inc.
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Dimensions: 14.9"(W) x 6.5"(H) x 16.9"(D)
Weight: 12.4 lbs. (UM361X, UM351W)
12.8 lbs. (UM352W)
Screen Range: 58.0" – 110.0"" Diagonal (16:10)
Screen Range: 61.5" – 116.0"" Diagonal (4:3)
Fan Noise: 38 dB / 28dB @ 1 meter
39 dB / 28dB @ 1 meter (UM352W)
BTU's: 1149.9 BTU/hour (UM361X, UM351W)
1156.7 BTU/hour (UM352W)
4:3 Screen Formulas:
W = H x 4/3
H = W x 3/4
Screen Diagonal = W x 5/4
16:10 Screen Formulas:
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
UM361X, UM351W, UM352W
v1.0
(UM361X, UM351W)
Page 1 of 8
