Green CIR-RB6000-G Owner's Manual

Light commercial recumbent bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

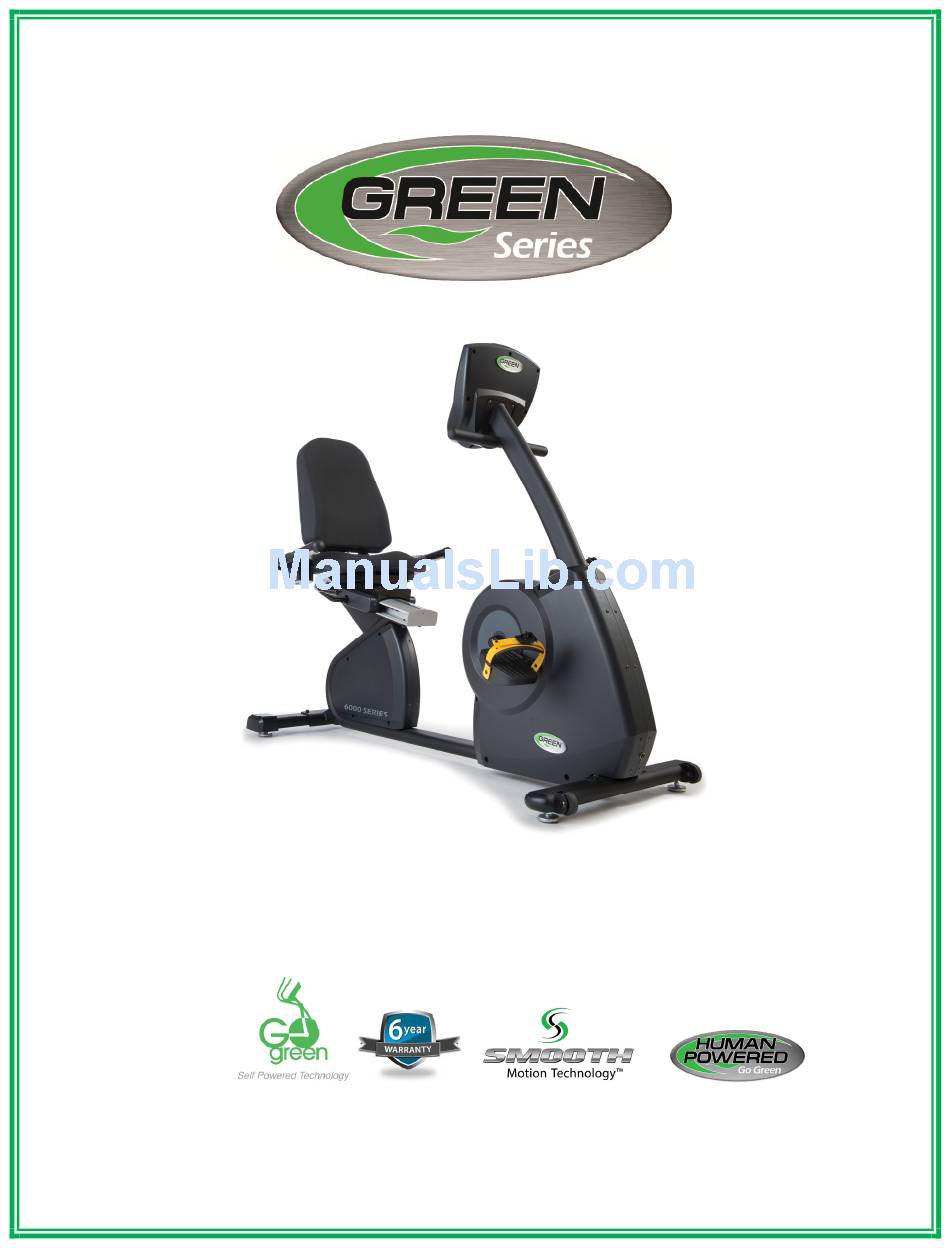

Owner's Manual
CIR-RB6000-G
Light Commercial Recumbent Bike
Light Commercial
Install Date: _________________________
Serial Number: ________________________
www.GreenSeriesFitness.com
©June 2015
Call Toll free (800) 269-7130
CIR-RB6000-G
Revision 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIR-RB6000-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Green CIR-RB6000-G

Summary of Contents for Green CIR-RB6000-G

  • Page 1 Owner's Manual CIR-RB6000-G Light Commercial Recumbent Bike Light Commercial Install Date: _________________________ Serial Number: ________________________ www.GreenSeriesFitness.com ©June 2015 Call Toll free (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 2: Table Of Contents

    Parts, hardware kit and assembly drawing WARM UP & COOL DOWN ……………………………………………………….….….…21 PANEL CONTROL & PROGRAM ………………………………………………….…..22-29 Control panel function and programs EQUIPMENT ADJUSTMENTS……………………………………………………………………………..30 CARE & MAINTENANCE …………………………………………………………....31 WARRANTY ……………………………………………………………………………..31-35 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 3: Safety Precautions

    ‧ ‧ ‧ ‧ Do not use outdoors. ‧ ‧ ‧ ‧ The appliance is intended for commercial use. ‧ ‧ ‧ ‧ Maximum user weight: 500Ibs (227 kg). www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 4: Safety Precautions

    Sustained exercise conditions your heart, lungs and muscles. The longer you are able to sustain exercise within your target heart range, the greater the aerobic benefits. To begin maintain 2~3 minutes of steady, rhythmic exercise, then check your heart rate. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 5: Technical Specifications

    Weight of product: 130lbs (59kg) Program：Manual, 6 preset programs, Fitness Test，HRCx4 Standard features: 8x16 dot matrix HR receive Resistance System：PMS(Perment Magnet System) Power source：Built-in generator & rechargeable battery 12V-1.2AH www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 6: Unpacking & Assembly

    Main frame X 1pc Front stabilizer X 1pc Console set X 1pc #4-7 #4-8 #4-9 #4-5 #4-6 Front cover X 1 set Handle bar post X 1pc Pedal set X 1set www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 7 X 1pc #4-29 #4-31 #4-32 #4-22 #4-25 Backrest frame rear Left/ Right track cover Lower hand pulse X Water bottle holder cover X 1pc X 1pc X 1set www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 8: Hardware Kit

    UNPACKING & ASSEMBLY Hardware kit #4-19 #4-20 #4-34 (seat/ backrest) (adjust pad) (Adjust lever, seat) (seat/ backrest) #4-27 (water bottle holder) www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 9 1). Using (2) M8x20mm screw and washer, fixing front stabilizer with main frame. 2). Using (2) M8x20mm screw and (2) washer, fixing rear stabilizer with main frame. #4-1 #4-2 #4-3 #4-4 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 10 UNPACKING & ASSEMBLY Step2: Assembly upright tube cover, right / left with handle bar post Using wrench, fixing pedal set with crank set. #4-5 #4-6 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 11 (4) M8 flat washers and (1) M4x10mm screw on handle bar post. 3). Take front cover joint into handle bar post. #4-7 #4-8 #4-9 #4-10 #4-11 #4-13 #4-12 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 12 1). Put the console into handle bar post, connected upper console wire with lower console wire. 2). Using (4) M5x15mm screw, tighten all screws. #4-36 Upper console wire Upper handle pulse wire #4-14 Lower console wire Lower handle pulse wire www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 13 1). Take out the backrest frame from carton box. 2). Set the backrest frame on main frame, then fasten backrest frame by (6) M10x25mm screws and (6) M10 spring washers. #4-15 #4-16 #4-17 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 14 2). Take hand pulse wire through the hole and connect hand pulse wire on the main frame. 3). Put the lower hand pulse on the backrest frame fasten by (4) M8x15mm screws and (4) M8 spring washers. #4-22 #4-23 #4-24 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 15 1). Take out seat bottom from carton box. 2). Set seat bottom on the backrest frame and fasten by (4) M6x40mm screws and (4) M6 spring washers. #4-18 #4-19 #4-20 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 16 1). Take out seat backrest from carton box. 2). Set seat backrest on backrest frame and fasten by (4) M6x40mm screws and (4) M6 spring washers. #4-21 #4-19 #4-20 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 17 2). Put the left water bottle holder on the lower hand pulse and fasten by (2) M4x12mm screws. 3). Put the right water bottle holder on the lower hand pulse and fasten by (2) M4x12mm screws. #4-25 #4-27 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 18 1). Fasten front backrest cover by (2) M4x20mm screws on the seat. 2). Fasten rear backrest cover by (2) M4x10mm screws on the seat. #4-28 #4-29 #4-30 #4-26 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 19 1). Fasten left track cover by (2) M4x10mm screws on the seat set. 2). Fasten right track cover by (2) M4x10mm screws on the seat set. #4-31 #4-32 #4-33 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 20 UNPACKING & ASSEMBLY Step12: Assemble seat adjust lever and seat set. Fasten seat adjust lever on the seat set by (2) M4x18mm screws. #4-34 #4-35 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 21: Unpacking & Assembly

    UNPACKING & ASSEMBLY Step13:Assemble adjust pad and main frame. 1). Left up the main frame. 2). Fasten the adjust pad under the main frame. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 22: Warm Up & Cool Down

    Keep your right leg straight and the left foot on the floor; try to stretch your right hand toward the toe, hold this posture for 15 seconds. Relax, and then repeat the action for left leg. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 23 C. The transportation wheels on the front foot caps allow for easy maneuvering. Simply pull back on the handle bars until the wheels touch the floor. Then roll the unit to a desired location. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 24: Panel Control & Program

    PANEL CONTROL Display & Keys Dot-matrix, display program profiles & message Message window www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 25 ▼ ▼ ▼ ▼ Select program RPM←→Watt Calories←→Distance Display Time←→Mets Level←→Heart Rate Enter Confirm value entered. Rest Reset back to idle mode while pause Program Select program directly Keypad Set value www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 26 3.1.3. Set age: use shift up or down device to set age then press『ENTER』to next settings. 3.1.4. Set workout level: use shift up or down device to set level 1~5(For RANDOM program will change the profile randomly. Press 『START』to begin workout. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 27 LEVEL 3 LEVEL4 LEVEL5 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL4 LEVEL5 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL4 LEVEL5 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL4 LEVEL5 www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 28 4.8.4 You can use any resistance level key or device to change the resistance level during your workout. 4.8.5 The program will end when the counter reaches 0. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...
  • Page 29 5.4.3. The program will end while heart rate value reach or over MHR 85% - 10 for 10 seconds. The program will show you the VO2 MAX value. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 30: Equipment Adjustments

    ‧ ‧ ‧ ‧ Body position Your handlebars should be set to a position in which you can reach them with slightly bent arms. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 31: Preventative Maintenance

    If the heart beat is too high or irregular, please have your hands out of the hand grip until the pulse display returns to " 0 ", then redoing the test. Don't do this test while running. www.GreenSeriesFitness.com ©June 2015 Call Toll free at (800) 269-7130 CIR-RB6000-G Revision 1.1...

  • Page 32: Limited Warranty

    (10) years frame, five (5) years motor, three (3) years parts, two (2) years wearables and one (1) year labor from the initial install date. During this period, GREEN SERIES™ will repair or replace defective parts or equipment with new or reconditioned parts at GREEN SERIES™ option, without charge to customer.

  • Page 33: Warranty

    3. GREEN SERIES™ shall not be held liable or responsible for any damages to the units caused during the install of any product.
  • Page 34 13. GREEN SERIES™ makes no warranty either expressed or implied regarding third-party (non-GREEN SERIES™) installed parts, accessories or modifications. 14. All GREEN SERIES™ equipment shall be properly cleaned and cared for in accordance to the procedures outlined the in the owner’s manual.
  • Page 35 (dependent on parts availability) via UPS. 3. GREEN SERIES™ will pay for shipping to and from the customer only within the time allocated under the warranty time-line following the original product installation date. Following this period all shipping fees for post warranty repairs are the sole responsibility of the customer.
