ADBE-10244 MULTI PURPOSE BENCH
ASSEMBLY INSTRUCTONS

Advertisement

loading

Related Manuals for Adidas ADBE-10244

Summary of Contents for Adidas ADBE-10244

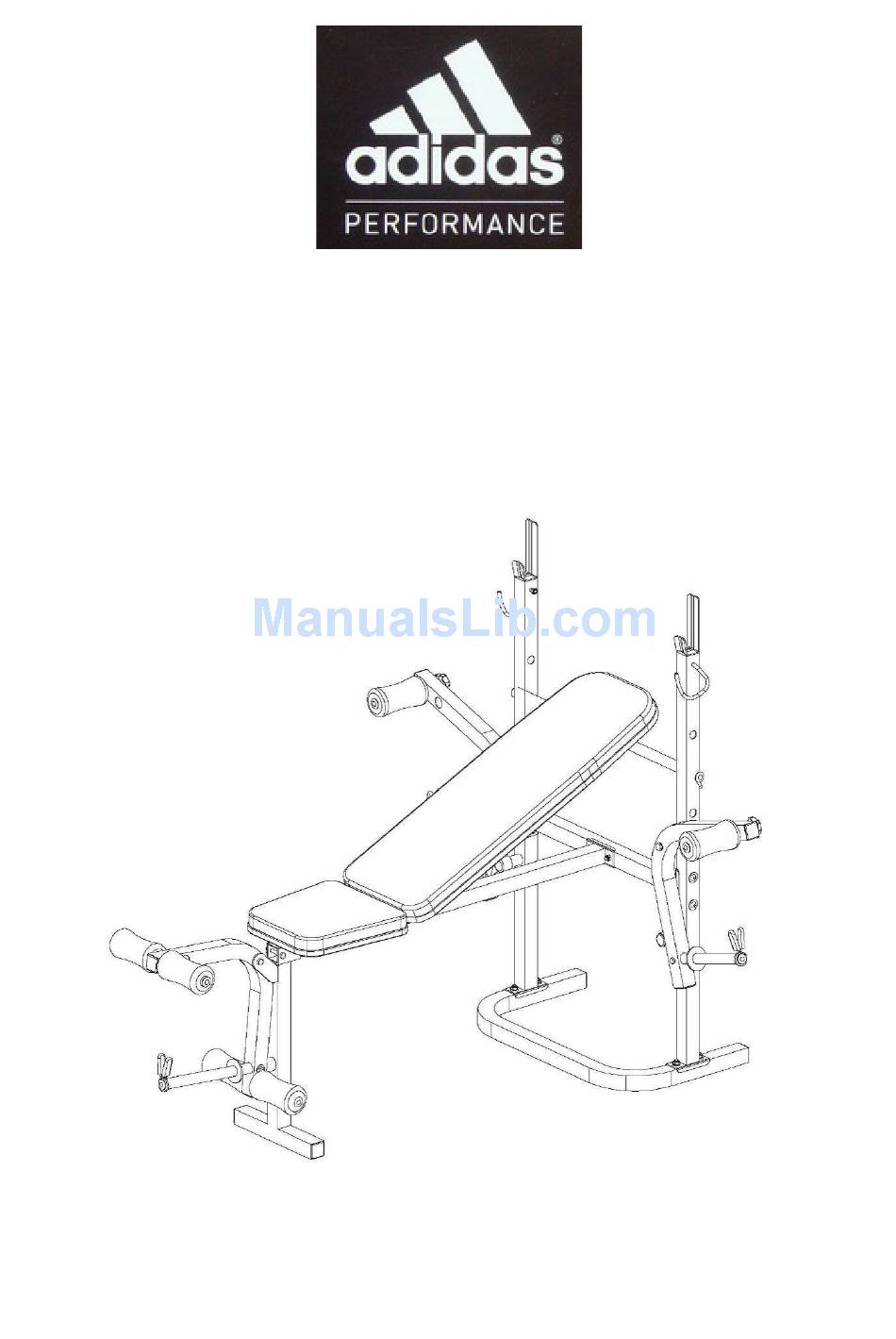

  • Page 1 ADBE-10244 MULTI PURPOSE BENCH ASSEMBLY INSTRUCTONS...

  • Page 2: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 3: Parts List

    PARTS LIST DESCRIPTION DESCRIPTION BARBELL CRUTCH WEIGHT TUBE MAIN BASE HEX BOLT(M10*135MM) SUPPORT BAR WASHER (M10*25MM) CENTRAL BRACE HEX NUT(M10*12MM) FRONT LEG WEIGHT CLIP LEG LIFT FOAM TUBE LEFT BUTTERFLY ARM PLASTIC KNOB BACKREST SUPPORT ROLLER PADS BACKREST HEX BOLT(M8*40MM) SEAT SQUARE PLUG(25.4MM) ROUND HEAD PHILLIPS...

  • Page 4: Parts Check List

    PARTS CHECK LIST...
  • Page 5 HARDWARE PACK CHECK LIST...

  • Page 6: Assembly Steps

    ASSEMBLY STEPS **PLEASE DO NOT FULLY TIGHTEN UNTIL ASSEMBLY IS COMPLETE. STEP 1 ATTACH TWO BARBELL STANDS (1) ONTO MAIN BASE(2) AND FASTEN WITH 4 CARRIAGE BOLTS M8*50 (13), 4 WASHER 8*25MM (14) AND 4 HEX NUT M8 (11). ATTACH THE SUPPORT BAR (3) ONTO BARBELL STAND (1) AND FASTEN WITH 4 CARRIAGE BOLTS M8*50 (13), 4 WASHER 8*25MM (14) AND 4 HEX NUT M8 (11).
  • Page 7 STEP 2 ATTACH FRONT LEG (5) ONTO CENTRAL BRACE (4) AND FASTEN WITH 2 HEX BOLT M8*60MM (32), 2 WASHER 8*25MM (14) AND 2 HEX NUT M8 (11). FASTEN ANOTHER HEX BOLT M8*15MM (33) WITH WASHER 8*25MM (14) FROM UNDERNEATH OF BRACKET ON FRONT LEG (5). ATTACH CENTRAL BRACE (4) ONTO BARBELL STAND WHICH IS ASSEMBLED IN STEP 1 WITH 2 CARRIAGE BOLTS M8*50MM (13), 2 WASHER 8*25MM (14) AND 2 HEX NUT M8 (11) FIT SEAT (10) ONTO CENTRAL BRACE (4) AND FASTEN WITH 4 ROUND HEAD PHILLIP SCREWS M6*15MM (31)
  • Page 8 STEP 3 ATTACH LEG LIFT (6) ONTO FRONT LEG (5) AND FASTEN WITH HEX BOLT M10*63MM (40), WASHER 10*25MM (22) HEX NUT M8 (35). INSTALL WEIGHT TUBE (37) THROUGH LEG LIFT (6) AND FASTEN WITH HEX BOLT M8*50MM (19), WASHER (8*25MM) (14) AND HEX NUT M8 (11), THEN ATTACH RUBBER CAP (39) TO END OF WEIGHT TUBE (37).
  • Page 9 STEP 4 ATTACH LEFT BUTTERFLY ARM (7) TO BARBELL STAND USING HEX BOLT M10*133 (21), WASHER 10*25MM (22) AND HEX NUT M10 (23). INSTALL THE WEIGHT TUBE (20) THROUGH LEFT BUTTERFLY ARM (7) AND FASTEN WITH HEX BOLT M8*50MM (19), WASHER 8*25MM (14) AND HEX NUT M8 (11). ATTACH FOAM TUBE (25) ONTO LEFT BUTTERFLY ARM (7) AND SECURE WITH PLASTIC KNOB (26), AFTERWARD ATTACH ROLLER PADS (27) ON REPEAT THE ABOVE PROCEDURES ON RIGHT BUTTERFLY ARM (18).
