Connection Sizes, Air Cooled Units; Field Piping, Remote Condensing Unit - DA Data Cool Series Installation, Operation And Maintanance Manual

2.1.3

Connection Sizes, Air Cooled Units

Model
DACU 02
DACU 03
DACU 04
DACU 05
Field connections at the indoor evaporator and remote condensing unit will not necessarily be
the same as the field pipe size required. In some cases these sizes will vary significantly.

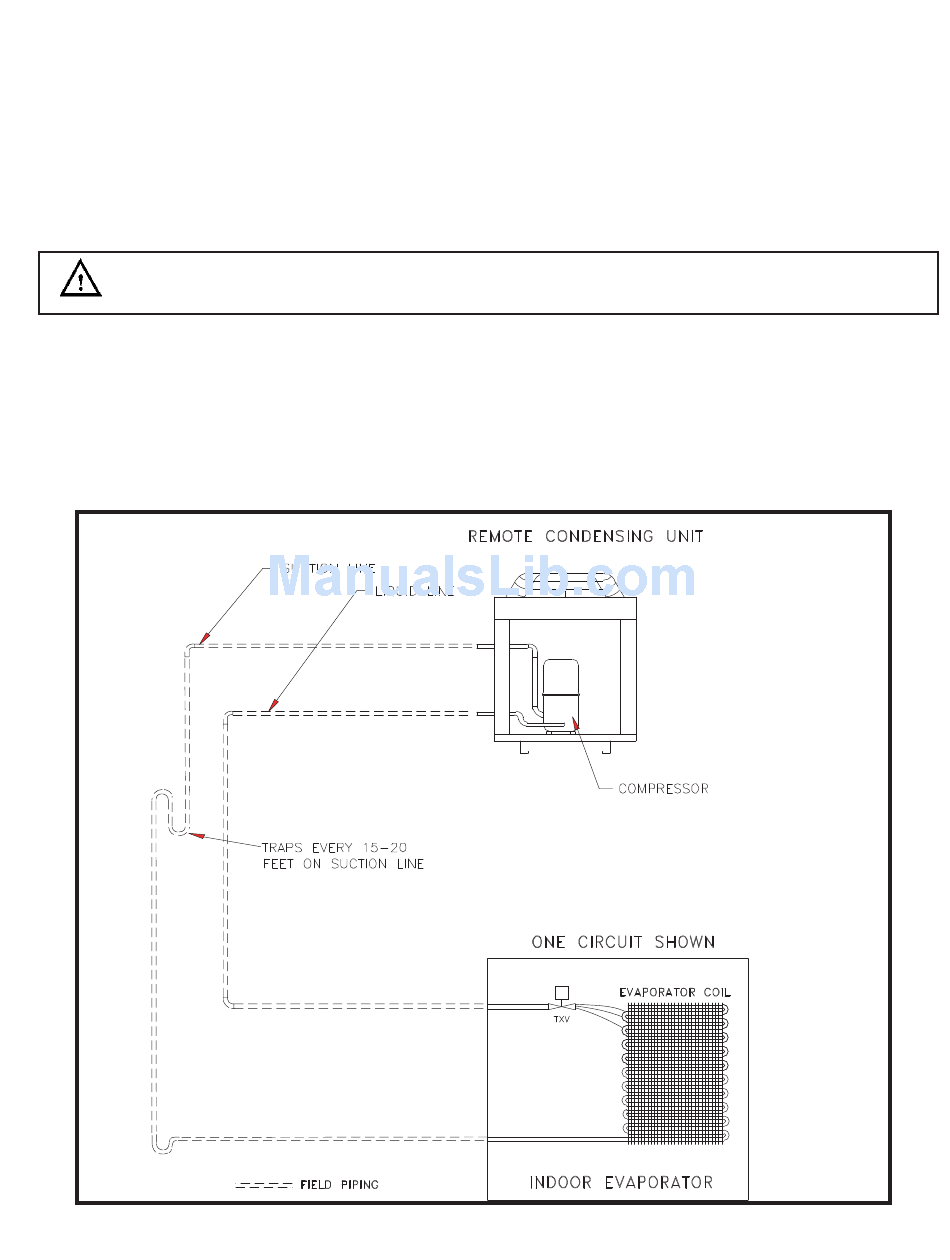

2.1.4 Field Piping, Remote Condensing Unit

Liquid Suction
1/2" 3/4"
1/2" 3/4"
1/2" 3/4"
1/2" 3/4"
Note: Unit will have a Liquid Line and
Suction Line
