THE BUILT-IN VACUUM SYSTEM
INSTALLATION AND OPERATING MANUAL
TYPE: VAC-220
Important: Instructions must stay with Unit. Owner read carefully.
This manual must be read and understood before installation, adjustment, service or
maintenance is performed. This unit must be installed by a qualified technician.
Modification of this product can be extremely hazardous and could result in
InterVac Design Corp., Palm City, FL 34990,USA
www.intervacdesign.com • e-mail: sales@intervacdesign. com
MODEL: RMF-220
MODEL: RMH-220
WARNING:
personal injury or property damage.
Phone 772-463-1400
1
RECORD THIS INFORMATION FOR
FUTURE REFERENCES
MODEL NUMBER _______________________
DATE OF PURCHASE ___________________
PLACE OF PURCHASE__________________
Manual # RM CE-e
Rev.: 9/09/11
Part # W511

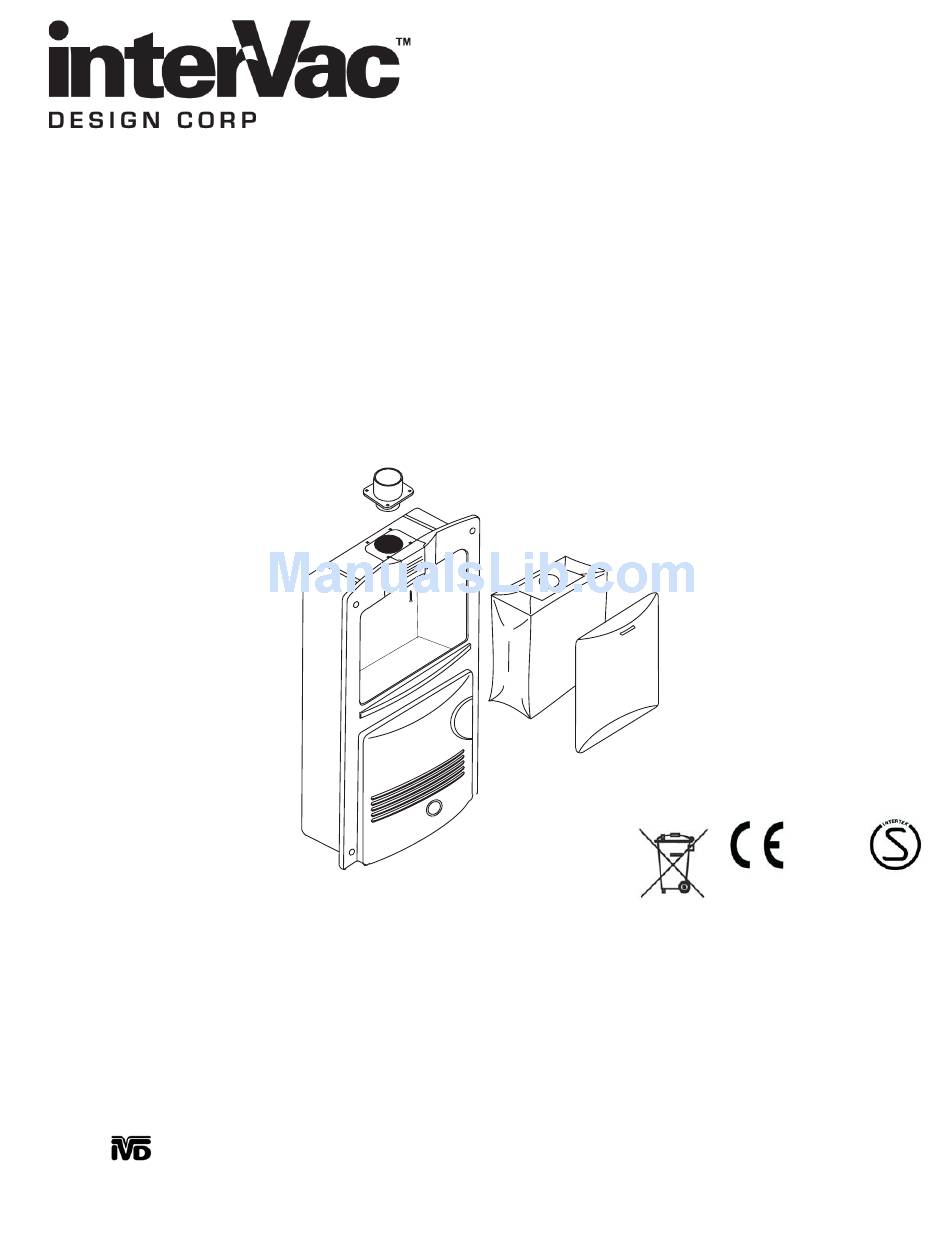

flush mounted
surface mounted
RoHS
AS/NZS: CS8830N

Advertisement

loading
Need help?

Need help?

Do you have a question about the RMF-220 and is the answer not in the manual?

Questions and answers

Summary of Contents for InterVac RMF-220

  • Page 1 This unit must be installed by a qualified technician. Modification of this product can be extremely hazardous and could result in personal injury or property damage. InterVac Design Corp., Palm City, FL 34990,USA Phone 772-463-1400 www.intervacdesign.com • e-mail: sales@intervacdesign. com...
  • Page 2: Important Safety Instructions

    Do not place objects against the vacuum cleaner. to InterVac or an authorized service dealer for Keep area clear. examination and repair. Do not step on the hose or pull the hose forcibly.
  • Page 3: Limited Warranty

    LIMITED WARRANTY InterVac Design Corp. will repair the power unit with new or rebuilt parts, free of charge for three (3) years from the date of original purchase in the event of a defect in materials or workmanship. No cash refunds. Excluded are the following items that require normal replacement: Disposable dust bag, filters, vacuum cleaner tools and vacuum hoses.
  • Page 4 CE Terminal block various pipe fittings 1 wood strip for RMF model With the InterVac model RM220 you have 2 mounting options: 1 : Recessed mounted in a wall. 2 : Surface mounted against a wall. MODEL RMF220, to be hard wired, FLUSH MOUNTED into a WOOD SURFACE...
  • Page 5 Wrap the strain relief around the power cable and with a pair of pliers insert into the hole. The green ground conductor of the power supply cable is not used and should be cut and insulated. Model RMF-220 Model RMH-220 about 6” from floor Tape template to wall Paper Template:...
  • Page 6 HOW TO OPERATE YOUR VACUUM CLEANER InterVac Design Corp. Palm City, Florida, 34990 USA e-mail: sales@intervacdesign. com • Website: www.intervacdesign.com FOR MODELS RM REMOTE VALVE UNITS NOTE: THE LOWER PART OF THE VACUUM CLEANER CAN BE QUITE WARM. IF THE VACUUM STOPS RUNNING: THE THERMAL PROTECTOR ON THE MOTOR WILL RESET AUTOMATICALLY AFTER ABOUT 1-1/2 HOUR.
  • Page 7 D: Replacing Exhaust Filter, Part #Y41: E: Replacing Motor Filter Pinch exhaust filter in the middle and pull out. Part # Y21 To replace, pinch in the middle and slide in one side first. tuck in the corners and sides carefully under the ribs TROUBLE SHOOTING: If you use our very convenient stretch hose, but require more suction power, we recommend you try...
  • Page 8 Homes PART #A006 for Models H, F, CM PART # A006B for Models RM Air Turbo Nozzle Special Inlet Valve PART # X452 "VAC-PAN" PART # 505 Black INTERVAC reserves the right to make improvements and modifications without notice.
