Page 1: Product Data

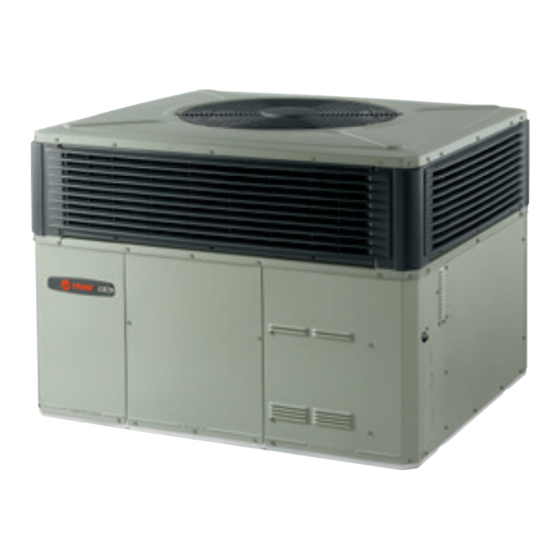

22-1799-20-EN Product Data 4DCY4024 through 4DCY4060 Packaged Convertible Dual Fuel 14 SEER 2 - 5 Ton, 60 - 120 MBTU R-410A 2014Trane Pub. No. 22-1799-20-EN ©... - Page 2 It's Hard to Stop a Trane. Packaged Convertible Dual Fuel System Trane offers a complete family of dual fuel heating and cooling systems, de- signed to keep you comfortable all year long, regardless of the weather, while keeping your operating costs as low as possible. The heat pump operates ef- ficiently as both an air conditioner and a heater.
-
Page 3: Table Of Contents
Contents Optional Equipment Listing General Data Indoor Blower Performance Typical Wiring Optional Equipment Dimensional Data Mechanical Specifications... -
Page 4: Optional Equipment Listing
Enthalpy Control for Economizer (solid state)............... BAYENTH001A[ ] Remote Potentiometer (All-BAYECON***A) ................BAYSTAT023[ ] 1"-2" Filter Frame (4DCY4024-36) (20 x 25 filter not included) 1......... BAYFLTR101B[ ] 1"-2" Filter Frame (4DCY4042-60) (20 x 20 & 20 x18 filter not included) 1......BAYFLTR201B[ ] Head Pressure Control (Low Ambient Cool) (208/240v) Kit 5. -
Page 5: General Data
General Data 4DCY4030C1070A 4DCY4036C1070A MODEL 4DCY4024C1060A 208-230/1/60 208-230/1/60 208-230/1/60 RATED Volts/PH/Hz 30000 37000 Performance Cooling BTUH 23600 1150 Indoor Airflow (CFM) 2.15 3.11 Power Input (KW) 2.162 12/14.0 12.0 / 14.25 12.0 / 14.0 EER/SEER(BTU/Watt-Hr.) Sound Power Rating [dB(A)]7 HP Heating Performance 28000 / 3.9 33200 / 3.6 (High Temp.)BTUH / COP... - Page 6 General Data MODEL 4DCY4036B3075A 4DCY4042C1090A 4DCY4048C1090B RATED Volts/PH/Hz 208-230/3/60 208-230/1/60 208-230/1/60 Performance Cooling BTUH 36000 42000 47500 Indoor Airflow (CFM) 1185 1380 1470 Power Input (KW) 3.28 3.50 3.96 EER/SEER(BTU/Watt-Hr.) 11.4 / 14.0 12.0 / 14.0 12.0 / 14.0 Sound Power Rating [dB(A)]7 HP Heating Performance (High Temp.)BTUH / COP 32400 / 3.5...
- Page 7 General Data 4DCY4048A3096C 4DCY4060C1115A 4DCY4060A3120C MODEL 208-230/3/60 208-230/1/60 208-230/3/60 RATED Volts/PH/Hz Performance Cooling BTUH 47000 58000 57500 1470 1785 Indoor Airflow (CFM) 1745 4.03 4.83 5.48 Power Input (KW) 10.85 / 14.0 12.0 / 14.0 11.5 / 14.0 EER/SEER(BTU/Watt-Hr.) Sound Power Rating [dB(A)]7 HP Heating Performance 42500 / 3.5 55000 / 3.6...
-
Page 8: Indoor Blower Performance
Indoor Blower Performance Indoor Fan Performance 4DCY4024 Horizontal Airflow 4DCY4024-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg) AIRFLOW SETTING Watts 350 CFM/TON Watts 400 CFM/TON* Watts 450 CFM/TON Down Airflow 4DCY4024-DOWN DIPSWITCH SETTINGS External Static Pressure (in. wg) AIRFLOW SETTING... - Page 9 Indoor Blower Performance Indoor Fan Performance 4DCY4036 Horizontal Airflow 4DCY4036-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg) AIRFLOW SETTING Watts 350 CFM/TON 1058 1062 1063 1063 1062 1060 1057 1053 1010 Watts 400 CFM/TON* 1179 1196 1204 1206 1205 1203 1199 1194 1185...
- Page 10 Indoor Blower Performance Indoor Fan Performance 4DCY4048 Horizontal Airflow 4DCY4048-HOR DIPSWITCH SETTINGS External Static Pressure (in. wg) AIRFLOW SETTING Watts 350 CFM/TON 1355 1387 1396 1392 1382 1370 1360 1351 1341 1326 Watts 400 CFM/TON* 1603 1581 1577 1580 1583 1583 1577 1567...
- Page 11 Typical Field Wiring...
-
Page 12: Typical Wiring
Typical Wiring... - Page 13 Typical Wiring...
-
Page 14: Optional Equipment
Optional Equipment BAYCURB050A Full Perimeter Roof Mounting Curb for *****024-036 17 7/8 46 3/8 3 5/8 19 1/2 2 3/16 19 1/2 38 7/8 1 1/2 The drawings on this page are prepared by the manufacturer in order to provide detail regarding job layout only. - Page 15 Optional Equipment BAYCURB051A Full Perimeter Roof Mounting Curb for *****042-060 15 7/8 56 1/8 1 1/2 10 7/8 19 1/2 4 3/4 19 1/2 41 7/8 The drawings on this page are prepared by the manufacturer in order to provide detail regarding job layout only.
- Page 16 Optional Equipment BAYFLTR101, 201B, 1" - 2" Filter Rack (Mounts in Filter/Coil Section) Filter BAYACCDOR1A & BAYACCDOR2A Hinged Filter Access Door Replaces Filter/Coil Access Panel The drawings on this page are prepared by the manufacturer in order to provide detail regarding job layout only. These drawings are not intended to be used as a basis to construct, build or modify the items depicted in the drawings.
- Page 17 Optional Equipment BAYECON101,102A Down Discharge Economizer and Rain Hood (Mounts Over Horizontal Return Air Opening) HVAC Unit Economizer rain hood Economizer Unit Application Models Outside air 4TC*,WC*,YC*,DC* dampers BAYECON101A 20.125" *018-036 Return air damp- Required 4TC*,WC*,YC*, DC* BAYECON102A 24.375" filter kit, order *042-060 separately Mist elimi-...
- Page 18 Optional Equipment BAYOSAH001, 002A, 25% Outside Air Damper (Replaces Filter/Coil Access Panel) The drawings on this page are prepared by the manufacturer in order to provide detail regarding job layout only. These drawings are not intended to be used as a basis to construct, build or modify FULLY the items depicted in the drawings.
-
Page 19: Dimensional Data
Dimensional Data 4DCY4024 through 4DCY4036 (1 of 3) - Page 20 Dimensional Data 4DCY4024 through 4DCY4036 (2 of 3)
- Page 21 Dimensional Data 4DCY4024 through 4DCY4036 (3 of 3)
- Page 22 Dimensional Data 4DCY4042 through 4DCY4060 (1 of 3)
- Page 23 Dimensional Data 4DCY4042 through 4DCY4060 (2 of 3)
- Page 24 Dimensional Data 4DCY4042 through 4DCY4060 (3 of 3)
-
Page 25: Mechanical Specifications
Mechanical Specifications General Condenser Coil — Heat Exchanger — stainless steel The Spine Fin™ condenser coil shall be tubes. Free floating design. All units shall be factory assembled, piped, internally wired and fully charged continuously wrapped, corrosion resistant Burners — Stainless steel. Multi-port with refrigerant.
