Summary of Contents for Luxman M-800A

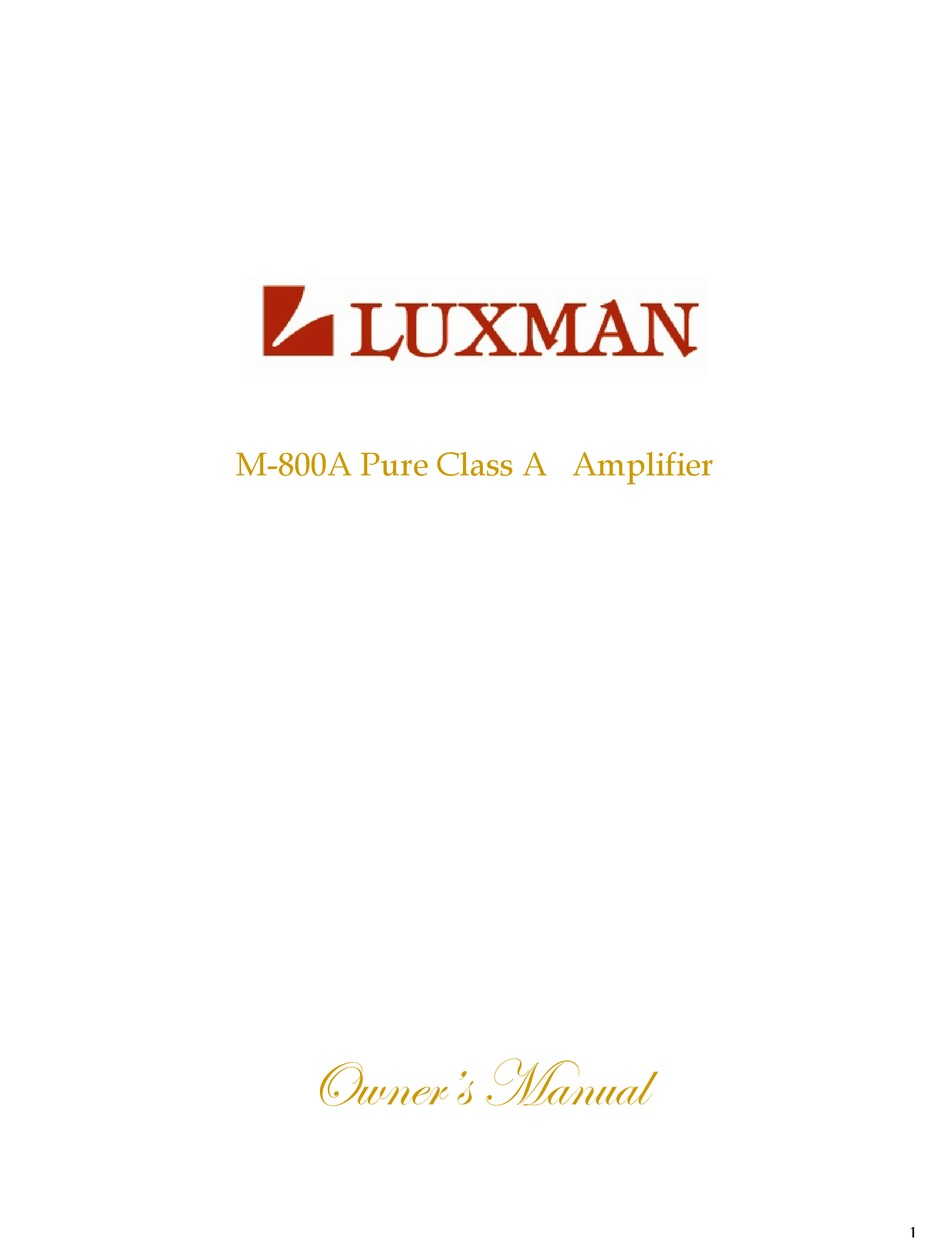

- Page 1 M-800A Pure Class A Amplifier bãÇxÜËá `tÇâtÄ...
-
Page 3: Important Safety Instructions
The exclamation point within an equi- The lightning flash with arrowhead, lateral triangle is intended to alert the within an equilateral triangle, is intended user to the presence of important to alert the user to the presence of operating and maintenance (servic- uninsulated “dangerous voltage”... -
Page 4: Table Of Contents
Thank You Your decision to purchase this Luxman M-800A Amplifier singles you out as one of the most discriminating music listeners. Luxman have been hand-crafting exquisite audio reproducing equipment in Japan since 1925. Luxman’s relentless dedication your Quality assurance that you will receive many years of musical enjoyment from this unit. -
Page 5: Front Panel Controls
Front Panel Controls POWER INDICATOR; LED blinks gently initially to show that it is warming up, will shine constantly once the M- 800A is fully operational. Yellow in stand-by, blue when operational. POWER METERS indicate the power delivered to the loudspeakers. The POWER STAND-BY / ON, push button meters respond to all the musical turns the L-550A either ON or OFF... - Page 6 POWER SOCKET (AC) Connect the M-800A power cord to a live AC outlet. Caution: The supplied AC Power Cord should not be connected to the Rear Panel of the M-800A until after the Loudspeaker Connections have been made. Failure to observe this could result in Electric Shock.
-
Page 7: How To Connect Your Speakers
Rear Panel Controls BALANCED INPUTS. The balanced input is desirable for minimizing earth loop generated mains hum and ripple, or high frequency interference, if a problem occurs. SPEAKERS. Connect the right speaker to the terminals market ‘R +’ and ‘R-’ ensuring that the ‘R+’... - Page 8 Speaker Connections contd. Spade Lug: Insert the spade lug connector or prepared section of the cable end into the terminal side access hole, and tighten the terminal cap until the cable is firmly clamped into the terminal so the wires cannot slip out.
-
Page 9: Installation
INSTALLATION The M-800A can be placed upright on a table (amplifier stand) or shelf, standing on its four feet. It also can be custom installed in piece of furniture or cabinet of your choice. Always provide adequate ventilation for your M-800A. Cool operation ensures the longest possible operating life for any electronic instrument. - Page 10 STEREO CONFIGURATION...
- Page 11 MONO CONFIGURATION...
-
Page 12: Block Diagram
M-800A Block Diagram... -
Page 13: Specifications
(1 systems), signal ground terminal and remote input terminal, line phase sensor and AC inlet Accessories Power cable and remote turn on / off cable (for use with Luxman control amps C-1000f, C-800, C-600). Power consumption 492W (rated power) 396W (signal less), 0.9W (stand by) Dimensions 17.25”... -
Page 14: Warranty
Luxman or an authorized Luxman repair center. The product must be packed and returned to Luxman or an authorized Luxman repair center by the customer at his or her sole expense. Luxman will pay return freight of its choice. A RETURNED PRODUCT MUST BE ACCOMPANIED BY A WRITTEN DESCRIPTION OF THE DEFECT AND A PHOTOCOPY OF THE ORIGINAL PURCHASE RECEIPT. - Page 15 Luxman Service Center by the dealer at his sole expense. Luxman will pay return freight of its choice. A returned product must be accompanied by a written description of the defect on an LUXMAN RETURNED GOODS AUTHORIZATION form.
- Page 16 Luxman, Japan www.luxman-audio.de Luxman, Germany phone (0)5921.78849.27 (0)5921.78849.28 www.luxman-audio.co.uk Luxman, United Kingdom phone +44(0)1900 813064 +44(0)1900 818060 www.luxman.us Luxman, United States phone (1) 949 488 3004 (1) 949 488 3284...
