Chapter 3
Machine Disassembly and Replacement

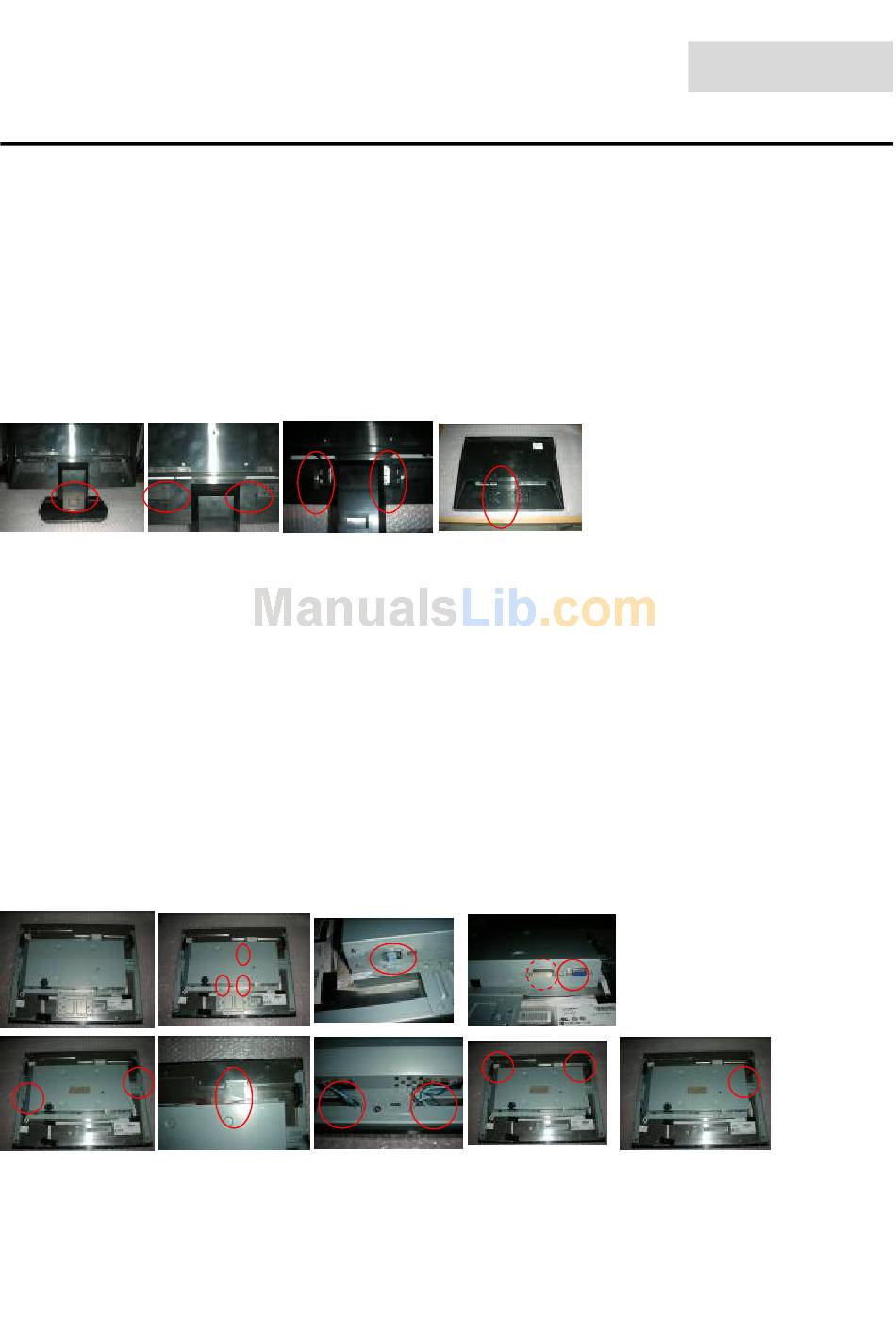

Disassembly Procedure

Disassemble the stand neck and base
1. Push release button and remove the base.
2. Remove the hinge cover.
3. Remove the four screws to release the hinge.
4. Remove the stand neck
Disassemble the chassis
1. To separate the back cover.
2. Remove the two screws from hinge bracket.
3. Disassemble the FFC form VL board
4. Remove the two screws from VGA connector (four screws from VGA and DVI connector).
5. Remove the two screws form chassis.
6. Disassemble the FFC form panel connector.
7. Disassemble four voltage lines from power board.
8. Remove speaker four screws form panel bracket R/L
9. Remove the chassis support
46
