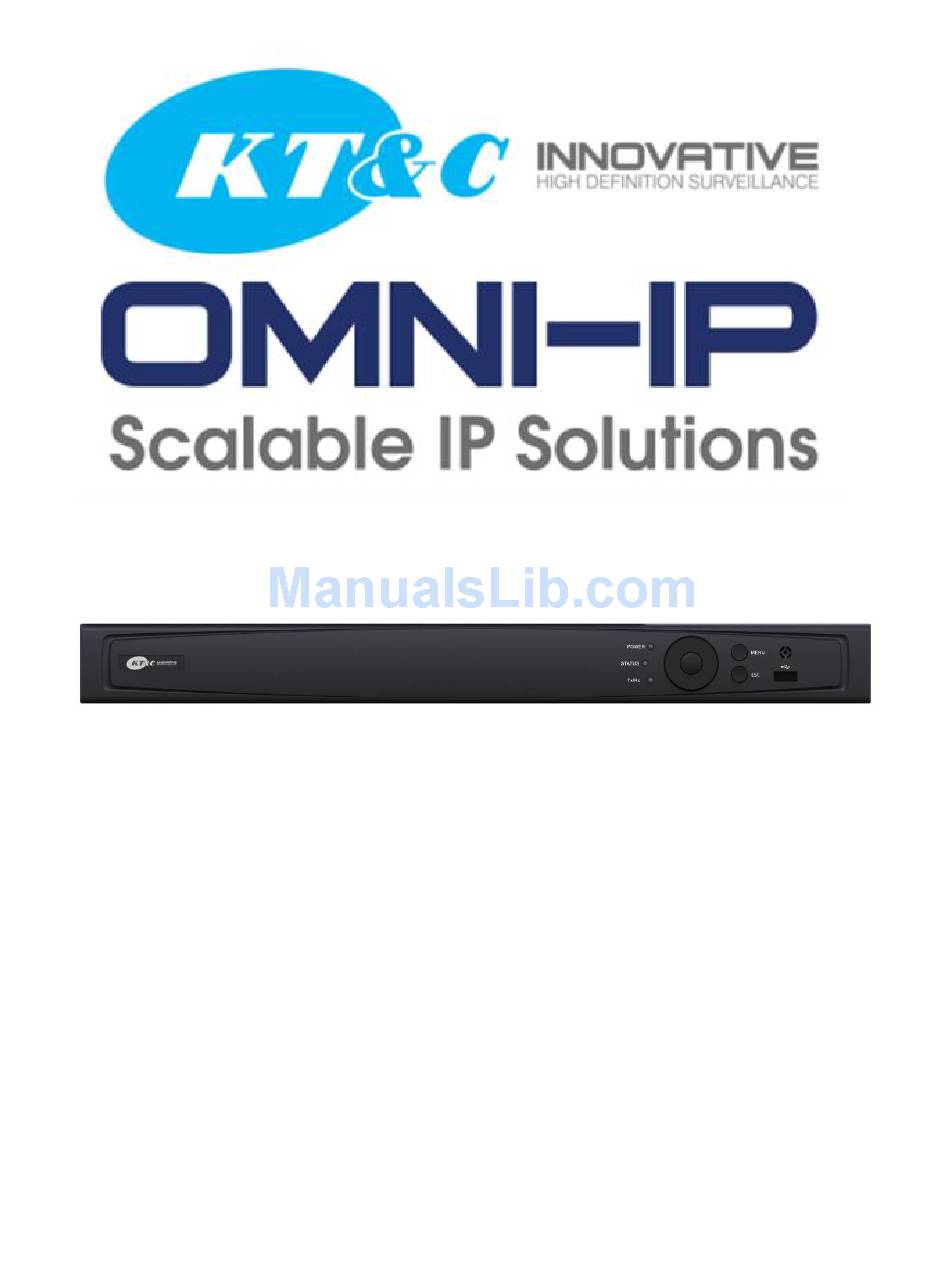

- Page 1 KNR-p4Px4 KNR-p16Px8 Network Video Recorder Quick Installation Guide...
-
Page 2: Table Of Contents
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 TABLE OF CONTENTS NVR Pre-Installation ............................2 NVR Installation .............................. 2 Hard Disk Installation ............................. 2 Front Panel ............................... 4 Rear Panel ................................ 5 Specifications ..............................6 HDD Storage Calculation Chart ........................10 Accessing by Web Browser ..........................11 Logging In .............................. -
Page 3: Nvr Pre-Installation
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact your dealer. KT&C Certified Dealers can contact KT&C directly. Series Model Type Omni IP KNR-p4Px4 Network Video Recorder KNR-p16Px8 NVR Pre-Installation The Omni IP series KNR-p4Px4 &... - Page 4 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Connect the power cable to the HDD. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD. Re-install the cover of the NVR and fasten screws.
-
Page 5: Front Panel
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Front Panel Description of Front Panel Controls Name Function Description POWER indicator turns green when NVR is powered up. POWER STATUS indicator lights in red when data is being read from or written to HDD. STATUS Tx/Rx indictor blinks green when network connection is functioning properly. -
Page 6: Rear Panel
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Rear Panel KVR-p4Px4 KVR-p16Px8 Item Description Connector for LAN (Local Area Network). LAN Network Interface Connects to RS-485 devices. RS-485 Interface 100~240VAC power supply Power Supply Switch for turning on/off the device. Power Switch Universal Serial Bus (USB) ports for additional devices such as USB USB Interface mouse and USB Hard Disk Drive (HDD). -
Page 7: Specifications
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Specifications KNR-p4Px4 KNR-p16Px8 Streaming Video Inputs & Recording Maximum Number of IP Cameras Number of built in PnP/PoE Switch Ports Supported Live View/ Record 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / Resolutions QCIF Sub-stream... - Page 8 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Camera Display Layouts 1, 2x2 1, 2x2, 1+5, 1+7, 3x3, 4x4 Single camera view and 720p 2x2 at main stream resolution; Automatic switching to sub-stream resolution in other multi-view Automatic Stream Selection displays to conserve CPU capacity and maintain parity between per-camera screen area and image size Audio Output (requires audio equipped 1-ch Line Level, RCA (Linear, 600Ω)
- Page 9 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Total Power Budget 50W all ports 100W all ports PnP Network Support Integral DHCP function with address-per-port initial assignment (Using KT&C KNC-p3 Omni-IP Series cameras connected to internal PnP PoE switch ports) Remote Viewing and Local/Remote Configuration Live view, playback and configuration via IE, Chrome, Firefox, Safari Built in Web Server Interface (with free plug-in/extension installed)
- Page 10 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Operating Temperature 14°F ~ 131°F (-10°C ~ +55°C) Operating Humidity Range 10% ~ 90% Cooling Fan 1, in power supply 17.52" x 11.42" x 1.77" (445mm x 290mm x 45mm) Size Rack Mountable with optional KA-ORM1 brackets 5.51b (2.5Kg) Weight (without hard drives or ODD) allow ~1.4 lb.
-
Page 11: Hdd Storage Calculation Chart
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K 256K 112M... -
Page 12: Accessing By Web Browser
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Accessing by Web Browser Logging In You can get access to the device via web browser. Open web browser, input the IP address of the device and then press Enter. The login interface appears. Input the user name and password, and click the Login button. Notes: 1. -
Page 13: Recording
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Interface Introduction ① Channel List: Displays the list of channels and the playing and recording status of each channel. ② Live View Window: Displays the image of channel, and multi-window division is supported. ③ Play Control Bar: Play control operations are supported. ④... - Page 14 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Choose the day in a week to configure scheduled recording. Click Edit to edit record schedule. Configure All Day or Customize record: If you want to configure the all-day recording, please check the All Day checkbox. ...
-
Page 15: Playback
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Click OK to save the settings and exit the Edit Schedule interface. Click Advanced to configure advanced record parameters. Click Save to validate the above settings. Playback Interface Introduction ① Channel List: Displays the list of channels and the playing status of each channel. ②... -
Page 16: Log
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 You can drag the progress bar with the mouse to locate the exact playback point. You can also input the time in the textbox and click button to locate the playback point. The color of the video on the progress bar stands for the different video types. You can view and export the log files at any time, including operation, alarm, exception and information of device. -
Page 17: Menu Operation
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Menu Operation Menu Structure Startup and Shutdown Proper startup and shutdown procedures are crucial to expanding the life of the NVR. To start your NVR: 1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device. -
Page 18: Live View
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 2. Select the Shutdown button. 3. Click the Yes button. 4. Shut the power switch down when the shutdown attention pops up. After the device starting up, the wizard will guide you through the initial settings, including modifying password, date and time settings, network settings, HDD initializing, and recording. - Page 19 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 • Auto The device will add the detected IP cameras or encoders automatically by the default user name and password of administrator. Note: If the user name and password is changed, the auto adding of IP camera will be failed, you may add it manually.
- Page 20 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Click the button to add the camera. Explanation of the icons: Icon Explanation Icon Explanation Edit basic parameters of the camera Add the detected IP camera. The camera is connected; you can The camera is disconnected; you can click the icon to get the live view of click the icon to get the exception the camera.
-
Page 21: Record Settings
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Record Settings Before you start: Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. You may refer to the user manual for detailed information. Purpose: Two kinds of record types are introduced in the following section, including Instant Record and All-day Record. And for other record types, you may refer to the user manual for detailed information. - Page 22 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Choose a channel under live view using the mouse and click the button in the shortcut operation menu. Note: Only record files recorded during the past five minutes on this channel will be played back. •...
-
Page 23: Backup
Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Just check the channel or channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer. Steps: Enter Video Export interface. - Page 24 Quick Installation Guide KNR-p4Px4 KVR-p16Px8 Check backup result. Choose the record file in Export interface and press button to check it.
- Page 25 Quick Installation Guide KNR-p4Px4 KVR-p16Px8...
