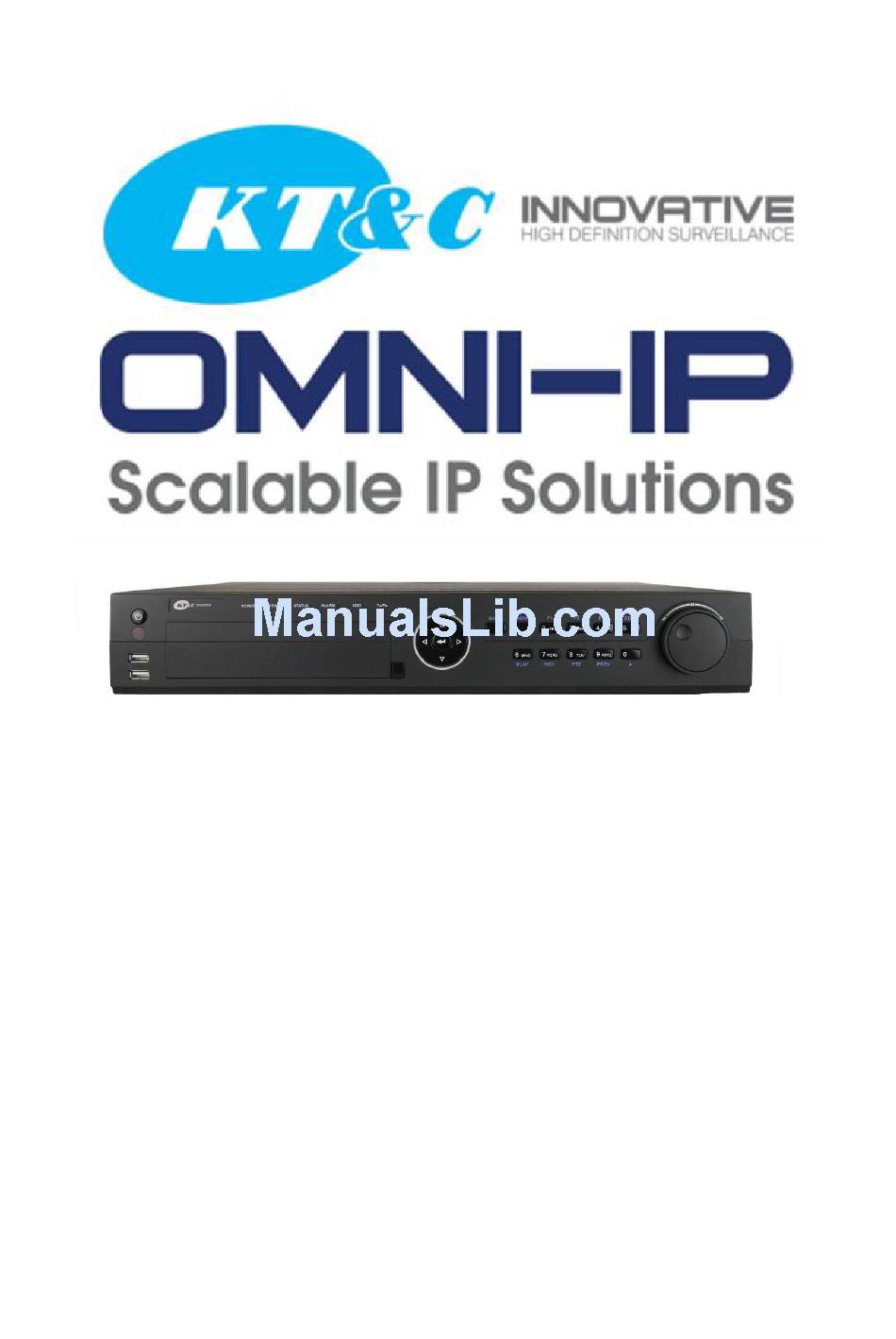

- Page 1 KNR-p16Px16 KNR-p32Px16 Network Video Recorder Quick Installation Guide...
-
Page 2: Table Of Contents
Quick Install Guide KNR-p16Px16 KNR-p32Px16 TABLE OF CONTENTS NVR Pre-Installation ............................2 NVR Installation .............................. 2 Hard Disk Installation ............................. 2 Front Panel ............................... 2 Peripheral Connections ........................... 6 Wiring of Alarm Input ..........................6 Wiring of Alarm Output ..........................6 Using of Alarm Connectors ........................ -
Page 3: Nvr Pre-Installation
Network Video Recorder KNR-p32Px16 NVR Pre-Installation These Omni IP series KNR-p16Px16 and KNR-p32Px16 NVRs are highly advanced surveillance equipment that should be installed with care. Please take into consideration the following precautionary steps before installation of the NVR. 1. Keep all liquids away from the NVR. - Page 4 Quick Install Guide KNR-p16Px16 KNR-p32Px16 READY Ready indicator is normally green, indicating that the NVR is functioning properly. Indicator turns green when NVR is controlled by an IR remote control with the address from 1~254; Indicator turns red when the SHIFT button is used;...
- Page 5 Quick Install Guide KNR-p16Px16 KNR-p32Px16 Enter letters “TUV”; Access PTZ control interface. Enter numeral “9”; Enter letters “WXYZ”; 9WXYZ/PREV Multi-camera display in live view; In Playback mode or MenuPlaybackTag playback interface, this button can be used to delete the selected tag.
- Page 6 Quick Install Guide KNR-p16Px16 KNR-p32Px16 Rear Panel KNR-p16Px16 and KNR-p32Px16 Item Description VIDEO OUT BNC connector for video output. CVBS AUDIO OUT BNC connector for audio output. This connector is synchronized with CVBS video output. VGA AUDIO OUT BNC connector for audio output. This connector is synchronized with VGA video output.
-
Page 7: Peripheral Connections
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Peripheral Connections Wiring of Alarm Inputs The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device. -
Page 8: Controller Connection
Quick Install Guide KNR-p16Px16 KNR-p32Px16 3. Connect pluggable block back into terminal block. Controller Connection To connect optional controller to the NVR: 1. Disconnect pluggable block from the KB terminal block. 2. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and fasten stop screws. -
Page 9: Specifications
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Specifications KNR-p16Px16 KNR-p32Px16 Streaming Video Inputs & Recording Maximum Number of IP Cameras Number of built in PnP/PoE Switch Ports Supported Live View/ Record Resolutions 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF... - Page 10 Quick Install Guide KNR-p16Px16 KNR-p32Px16 Single camera view and 2x2 at main stream resolution; Automatic switching to sub-stream resolution in >4 cameo multi-view Automatic Stream Selection display to conserve CPU capacity and maintain parity between per-camera screen area and image size Audio Output (requires audio equipped 2-ch Line Level, BNC (Linear, 600Ω), one synched to CVBS, one synched to...
- Page 11 Quick Install Guide KNR-p16Px16 KNR-p32Px16 Remote Viewing and Local/Remote Configuration Live view, playback and configuration via IE, Chrome, Firefox, Safari (with Built in Web Server Interface free plug-in/extension installed) PC and MAC Client supports multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support;...
-
Page 12: Hdd Storage Calculation Chart
Quick Install Guide KNR-p16Px16 KNR-p32Px16 1.5U Rack mountable chassis (rack ears provided) Size 17.52" x 15.35" x 2.76" (445mm x 390mm x 70mm) Weight (without hard drives or ODD) 8.8 lb./4 Kg allow ~1.4 lb. per HDD Certifications FCC, CE, RoHS... -
Page 13: Accessing By Web Browser
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Accessing by Web Browser Logging In You can get access to the device via web browser. Open web browser, input the IP address of the device and then press Enter. The login interface appears. Input the user name and password, and click the Login button. -
Page 14: Recording
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Interface Introduction Name Description Displays the list of channels and the playing and recording status of each channel. Channel List The stream type can be switched by clicking the icon before the channel name: stands for main stream and for sub-stream. - Page 15 Quick Install Guide KNR-p16Px16 KNR-p32Px16 3. Check the checkbox of Enable Schedule to enable recording schedule. 4. Choose the day in a week to configure scheduled recording. 5. Click Edit to edit record schedule. 1) Configure All Day or Customize Record: ...
-
Page 16: Playback
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Playback Interface Introduction Name Description Channel List Displays the list of channels and the playing status of each channel. Playback Window Displays the image of channel. Play Control Bar Play control operations are supported. Time Line Displays the time bar and the records marked with different colors. -
Page 17: Log
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Area Description Area Description Full screen Transcoded playback Reverse playback Window division You can drag the progress bar with the mouse to locate the exact playback point. You can also input the time in the textbox and click button to locate the playback point. -
Page 18: Menu Operation
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Menu Operation Menu Structure Startup and Shutdown Proper startup and shutdown procedures are crucial to expanding the life of the NVR. To start your NVR: 1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device. -
Page 19: Live View
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Live View Some icons are provided on screen in Live View mode to indicate different camera status. These icons include: Live View Icons In the live view mode, there are icons at the upper-right corner of the screen for each channel, showing the status of the record and alarm in the channel, so that you can find problems as soon as possible. - Page 20 Quick Install Guide KNR-p16Px16 KNR-p32Px16 The online cameras with same network segment will be displayed in the camera list. Click the button to add the camera. Or you can click the One-couch Adding button to add all the online IP cameras.
-
Page 21: Recording
Quick Install Guide KNR-p16Px16 KNR-p32Px16 You can edit the IP address, protocol, management port, and other information of the IP camera to be added. Click Add to add the camera. (For the encoders with multiple channels only) check the of Channel No. in the pop-up window, checkbox as shown in the following figure, and click OK to finish adding. -
Page 22: Instant Recording
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Instant Recording On the live view window of each channel, there is a quick setting toolbar which shows on the bottom of the window when you click on it. Click the icon to enable the record, and the icon turns to . -
Page 23: Backup
Quick Install Guide KNR-p16Px16 KNR-p32Px16 Mouse: right click a channel in live view mode and select Playback from the menu. Front Panel: press PLAY button to play back record files of the channel under single-screen live view. Under multi-screen live view, record files of the selected channel will be played back. - Page 24 Quick Install Guide KNR-p16Px16 KNR-p32Px16 2. Enter Export interface, choose backup device and click Export button to start exporting. 3. Check backup result. Choose the record file in Export interface and click button to check it.
