TV Buttons And Terminal Interface

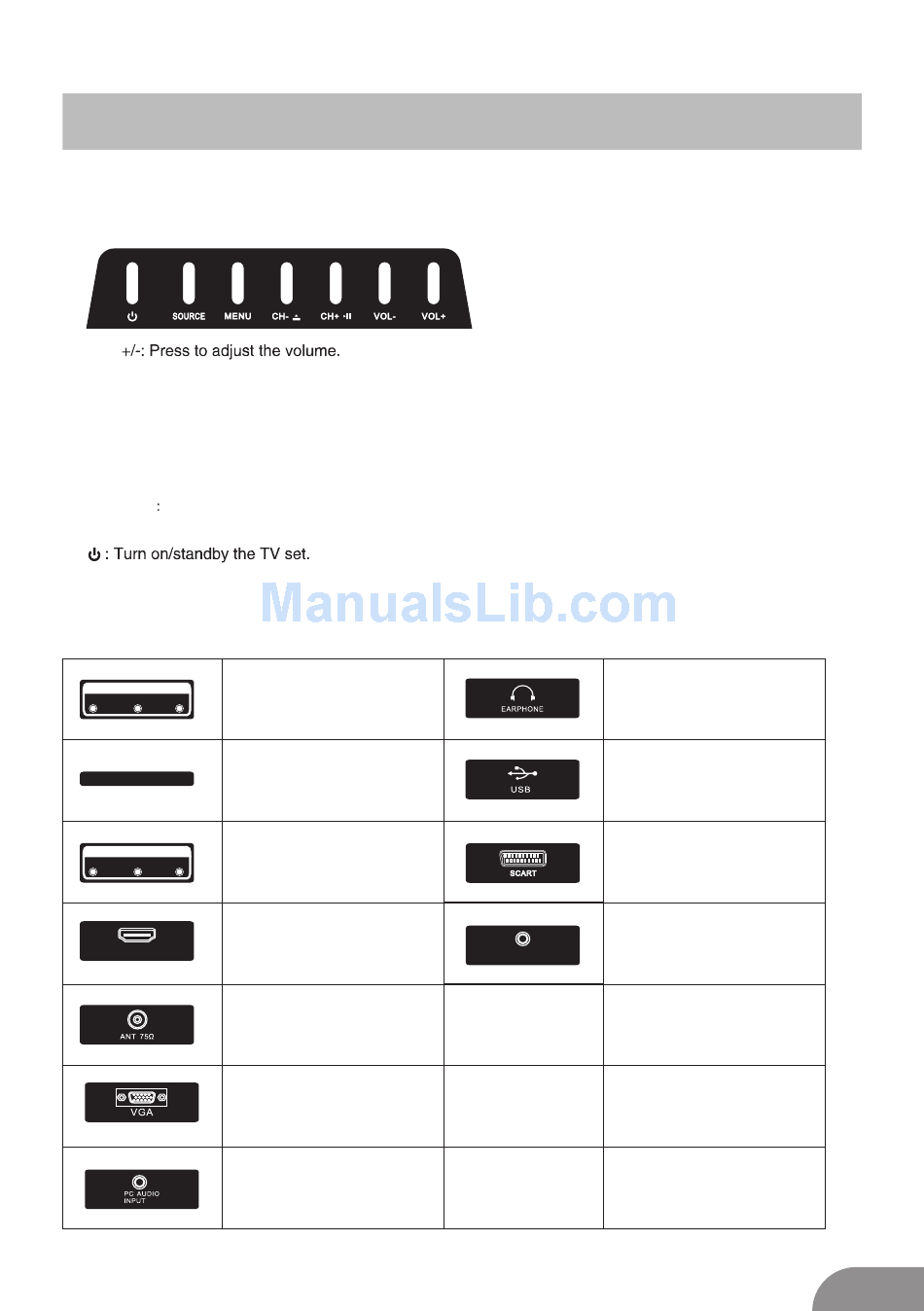

TV Buttons
Note: The following is only functional schematic, And the actual position and
arrangement of different models may be different.
VOL
CH+/-:When watching TV: select channels.
(DVD Mode. CH-:DVD Eject. CH+:Play/Pause DVD Program)
MENU:
1.Press Menu.
2.Press SOURCE to enter.
3.Use CH+/- to shift UP/DOWN.
4.Press SOURCE to confirm,then press VOL+/-to adjust.
5.Press SOURCE to confirm
SOURCE External signal input selection and confirm the
item selected.
Terminal Interface
Note: The following are the various terminal interface, the actual position and
arrangement, the number of different models may be different.
AV input
INPUT
External AV Signal Input And
VIDEO R L
Relevant Rith/Left Sound Channel
CI SLOT
The card reader input CI(common
CI
interface) this requires CAM
(conditional access module)
used for pay TV.
Y Pb Pr input
INPUT
Connect to the composite terminal of
Y Pb Pr
your DVD/VCR
(Some models without this interface)
HDMI input
Digital signal input from HDMI video
HDMI
connector.
ANT 75
Connect the antennal/cadle tv input
(75/VHF/UHF)
VGA input
PC analog signal input
PC AUDIO INPUT
VGA input and audio input when VGA
input
/ /
EARPHONE output
When earphones are plugged in,
speakers are disabled
USB input
Connect a USB device here to play
its media files or to recordprograms
via the PVR function.
SCART input
standard,it supports composite and
RGBsignal input.lt is a connection
for european
(Some models without this interface)
COAXIAL
Connect the SPDIF receiver.
COAXIAL
5
