To Change The Bed Cover Unit - Janome Memory Craft 9000 Service Manual

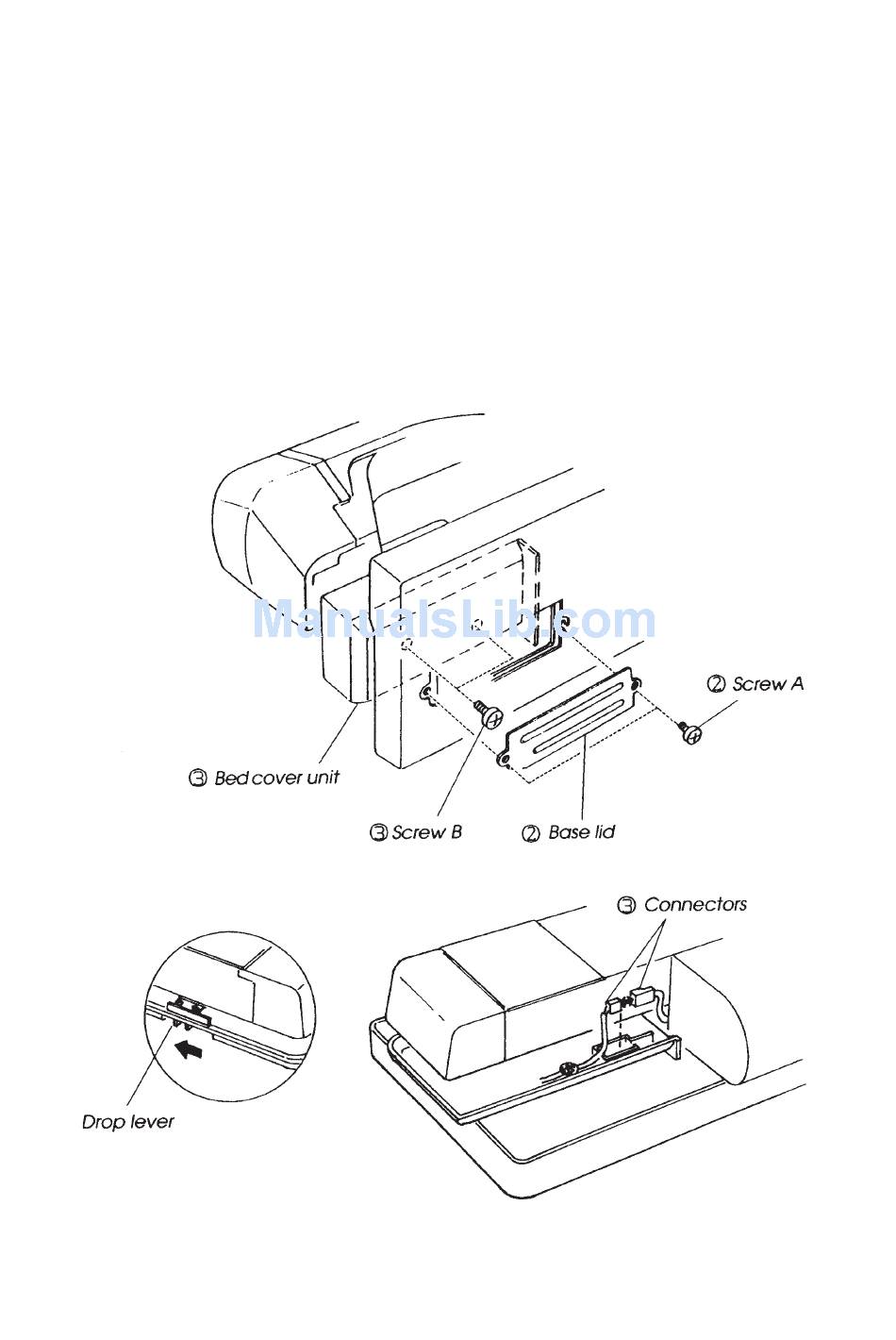

TO REMOVE
1. Remove the base cover (see page 6).
2. Remove the two screws A, and remove the base lid.
3. Remove the two screws B, and remove the bed cover unit. Then pull out the connectors
from the connector supporter and disconnect them.
TO ATTACH
4. Follow the above procedure in reverse.
NOTE: Set the drop lever as shown below. Make sure that you connect the plug before
replacing the bed cover.

TO CHANGE THE BED COVER UNIT

5
