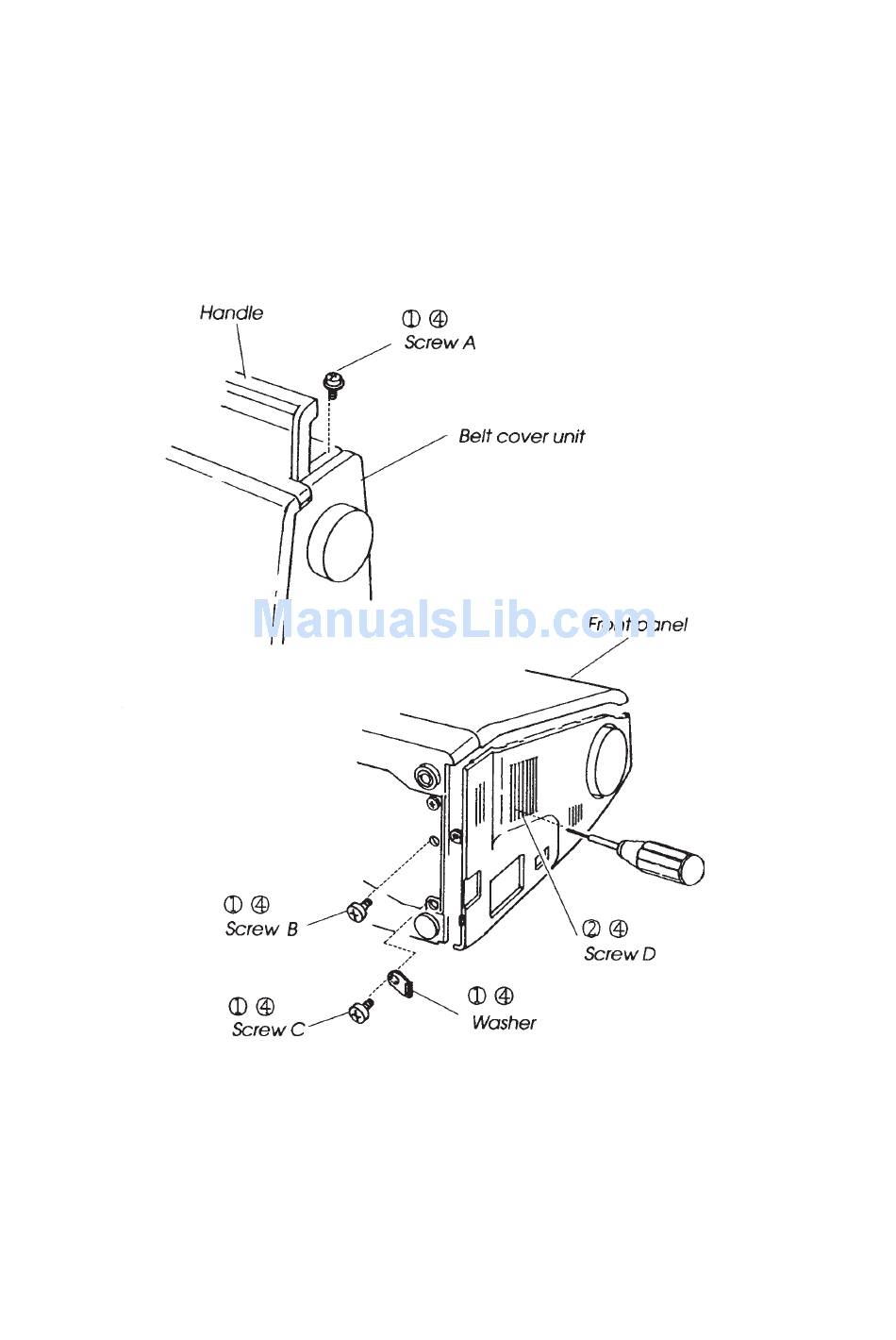

TO CHANGE THE BELT COVER UNIT

TO REMOVE
1.
Loosen the screw A and remove screws B, C and the washer.
2.
Loosen the screw D completely, and remove the belt cover unit.
TO ATTACH
3.
Insert the belt cover in the front panel.
4.
Replace screws A, B. C (with washer) and screw D.
4
