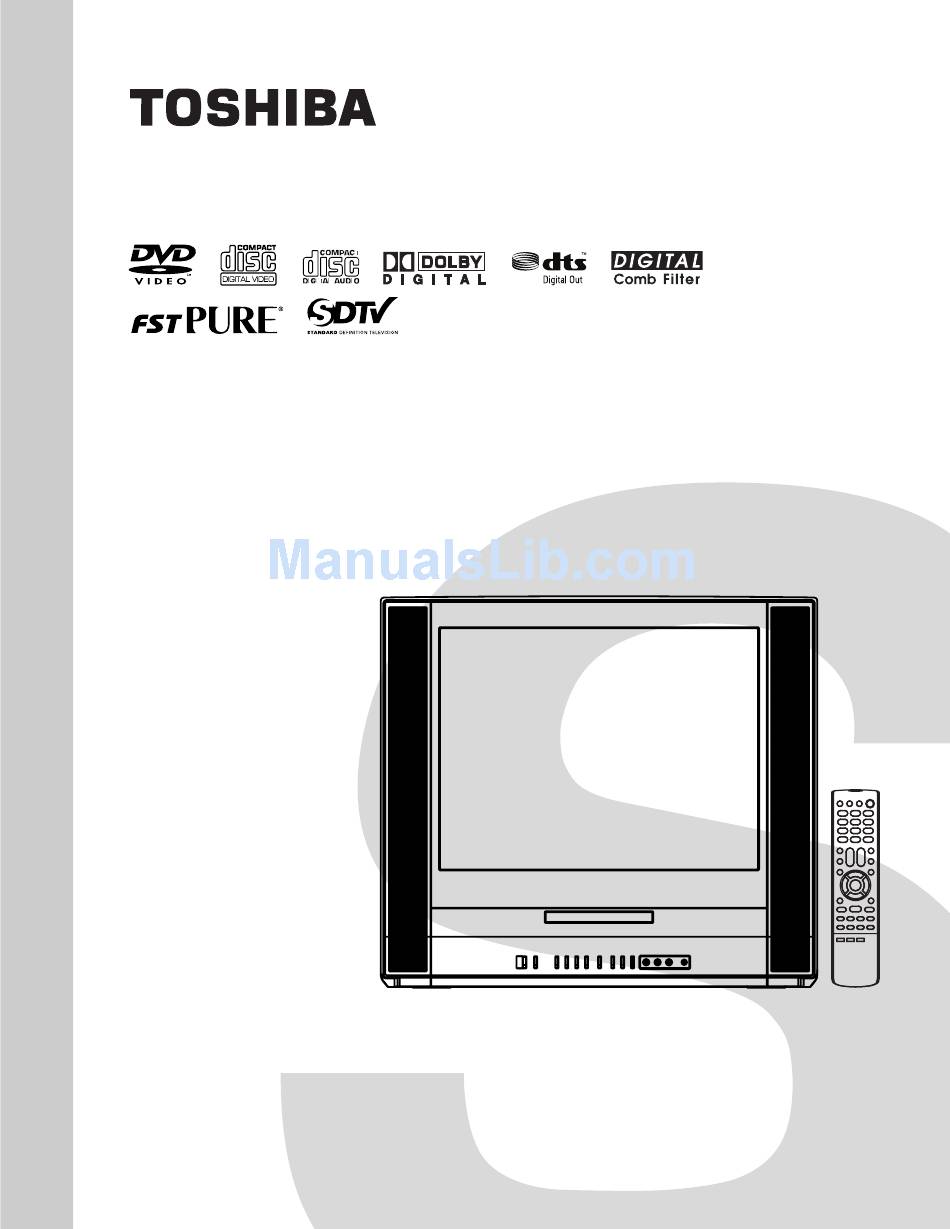

CIRCUIT DIAGRAMS

COMBINATION FLAT COLOR
TELEVISION AND DVD VIDEO PLAYERC
The above model is classified as a green product (*1), as indicated by the underlined serial number.
This Service Manual describes replacement parts for the green product. When repairing this green
product, use the part(s) described in this manual and lead-free solder (*2).
For (*1) and (*2), see the next page.
©2007 Toshiba Corporation
MD20H63
DOCUMENT CREATED IN JAPAN, March, 2007 GREEN
FILE NO. 810-200708GR
