Installation Diagram; Change Filters - PurePro M800-DIRECT FLOW User Manual

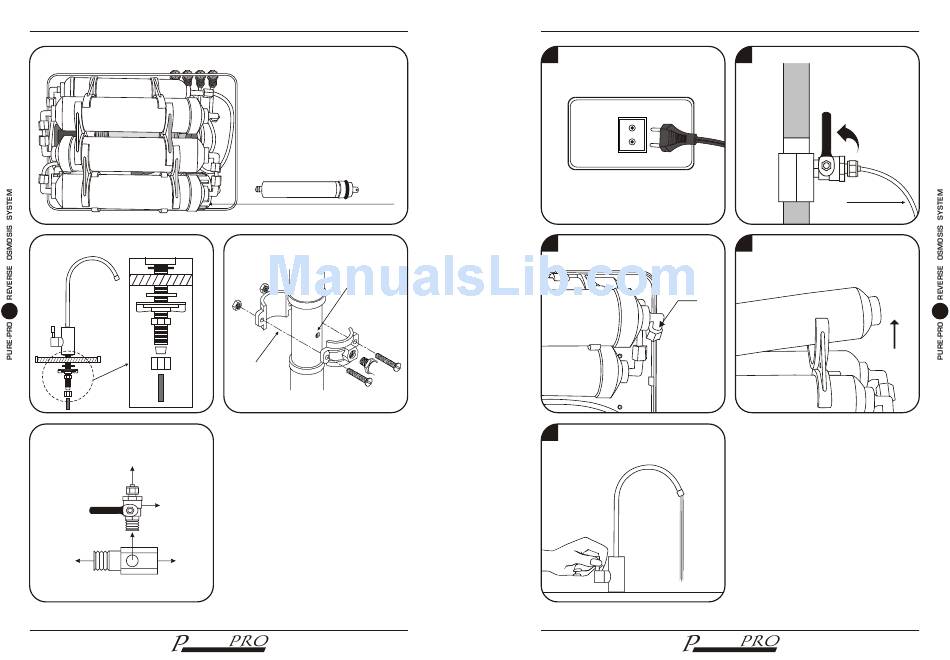

Installation diagram

Assemble membrane :
Install European ceramic faucet :
07
Input water :
To RO system
Deliver valve
To faucet
To water source pipe
M800-Direct Flow Reverse Osmosis Water Systems
1.Remove the membrane housing cap.
2.Replace the membrane.
Install drain saddle :
Drill a 1/4" hole into
the drain pipe.
Mount drain
saddle aligning
holes.
URE
DRINKING WATER SYSTEM

Change filters

1 Unplug electricity.
3 Loose the Jaco fitting anticlockwise.
Jaco
5 Turn on water source and water
tank, drain out 1 Gallon of water
to purify replacement filters.
M800-Direct Flow Reverse Osmosis Water Systems
URE
DRINKING WATER SYSTEM
2 Turn off water source.
To RO system
4 Remove the used filters from clips
and replace with new ones.
