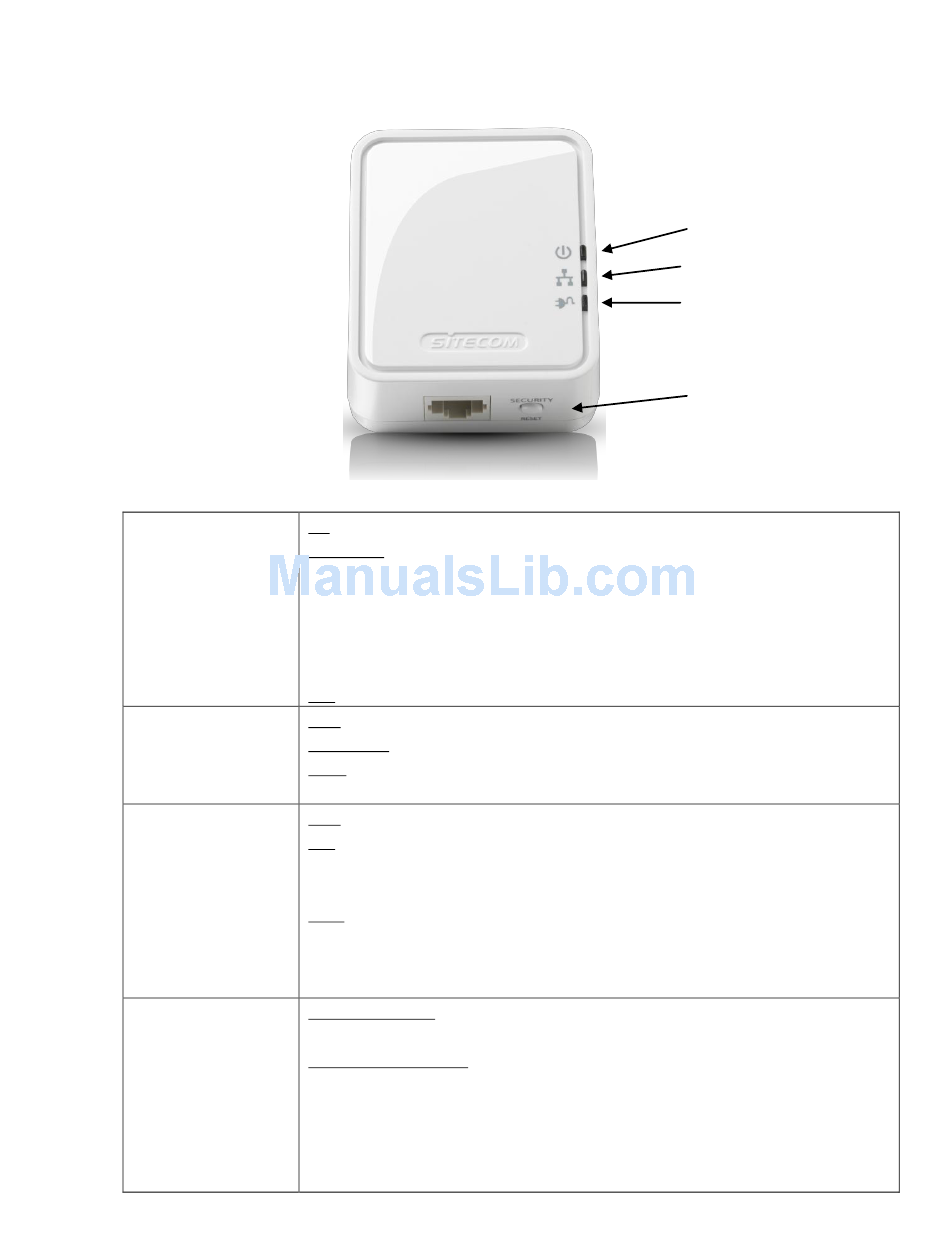

3. Introduction of the hardware

Power LED
Ethernet
Link/Activity LED
PLC Link/Activity
LED
GROUP/Reset
Button
Full manual Sitecom homeplug
ON: Power on and ready.
BLINKING:
1. (blink at slower rate) means Standby mode, or
2. During Group pairing procedure, the device joining or being joined into
same logical network will continue to blink for 2 minutes until the procedure is
successful or is canceled). To enter or cancel the Group pairing procedure,
just press the GROUP button 2~3 sec.
OFF: Power off.
ON: Ethernet Link Detected.
BLINKING: Ethernet traffic detected.
OFF: No Ethernet Link detected.
ON: Power line Link detected but no power line traffic.
OFF: Power line Link not detected (either other devices in same network are too
far to communicate or it is alone in its logical network).
Color:
Green: PHY RATE > 40Mbps
Orange: 20Mbps < PHY RATE < 40Mbps
Red: PHY RATE < 20Mbps
Press 10 seconds: clear the current network group name and randomly generate a
new network group name.
Press 2 to 3 seconds: this will enter Group pairing mode. In this mode the device
will join into an existing logical network of other device or announce its network
group name for other devices to join. This mode automatically ends after two
minutes or when it is successful, manually stopped. Press this button 2 to 3
seconds will manually stop the Group pairing mode.
Power LED
Ethernet Link/Activity
PLC Link/Activity
Group/Reset button
5
