Summary of Contents for Sitecom homeplug LN-550

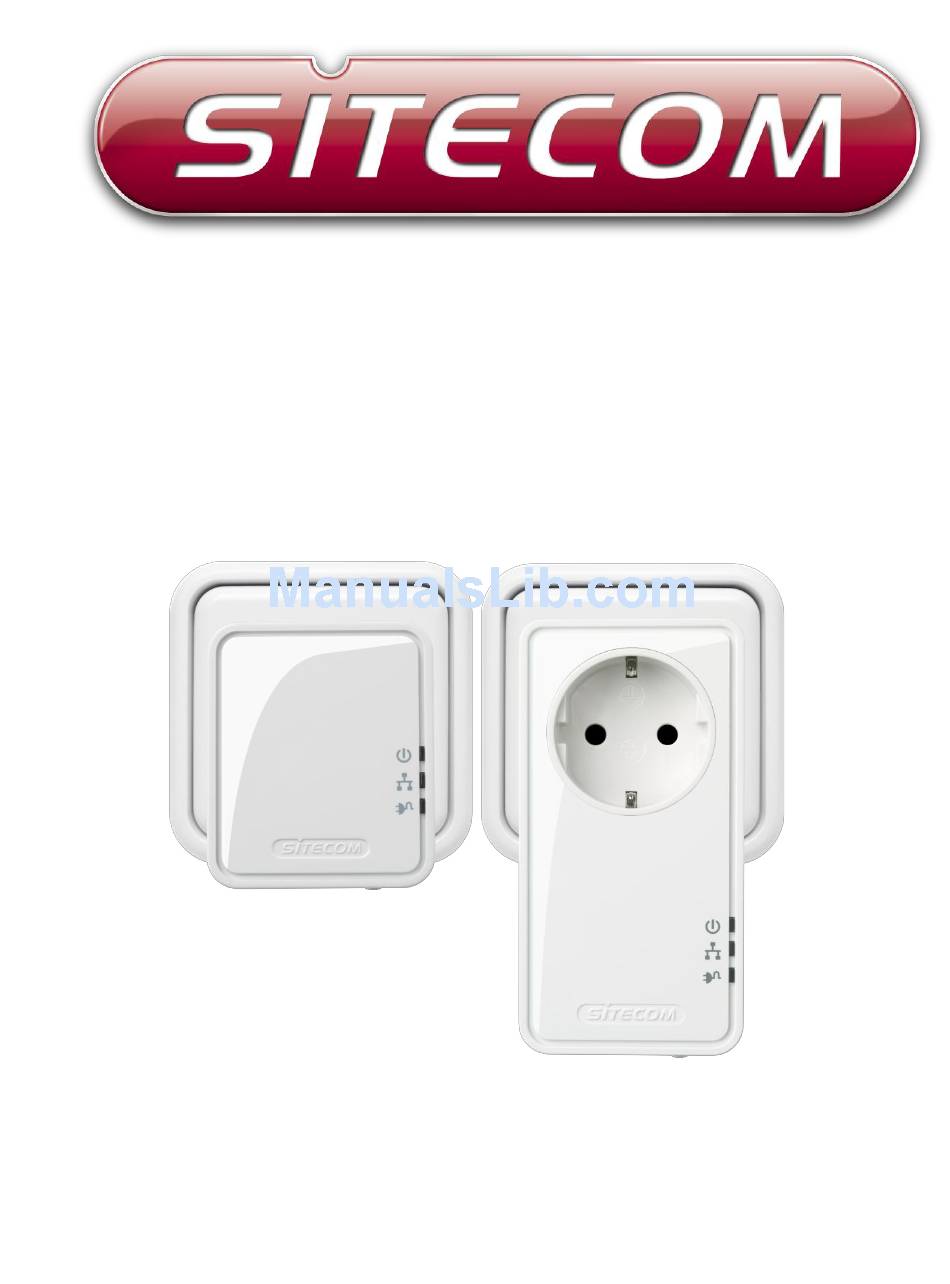

- Page 1 homeplug internet via the powerline LN-550/551/552/553 User Manual...
-
Page 2: Table Of Contents
6.2 Add an extra Homeplug ................13 6.3 Remove a device from a network Group ........... 13 6.4 Make two public network devices private ..........13 6.5 Standby Mode ..................13 Appendix: Declaration of Conformity ..............13 Full manual Sitecom homeplug... -
Page 3: Safety Instructions
If the Homeplug adapter has been exposed to rain or water. If the Homeplug adapter does not work, even though the operating instructions have been followed properly. If the Homeplug adapter’s case is damaged. Full manual Sitecom homeplug... -
Page 4: Introduction
Do not discard the packing materials, in case of return; the unit must be shipped back in its original package. The Homeplug device(s) A CD containing manuals and utility. A quick installation guide. Two CAT 5e Ethernet cables. Full manual Sitecom homeplug... -
Page 5: Introduction Of The Hardware
This mode automatically ends after two Button minutes or when it is successful, manually stopped. Press this button 2 to 3 seconds will manually stop the Group pairing mode. Full manual Sitecom homeplug... - Page 6 Press the button when the device is powered on (not standby) to restore to Factory default settings (including PLC network group name). Every new PLC devices has the factory default network group name of HomePlugAV. During trouble shooting, power line network communication and network group assignment. Full manual Sitecom homeplug...
-
Page 7: Install The Hardware
Start with the Homeplug which is labeled as ‘1’. You’ll see this on the backside of the Homeplug. Plug the Ethernet cable in the Ethernet port on the Homeplug. Connect the Homeplug to your Internet router and plug it into the socket. Full manual Sitecom homeplug... -
Page 8: Install The Second Homeplug
Take the Homeplug which is labeled as ‘2’. You’ll see this on the backside of the Homeplug. Plug the Ethernet cable in the Ethernet port on the Homeplug. Connect the Homeplug to your computer and plug it into the socket. Full manual Sitecom homeplug... - Page 9 Your network is now fully functional. Follow the next steps to secure your network. Full manual Sitecom homeplug...
-
Page 10: Add An Extra Homeplug To An Existing Network
Install the Hardware Plug the Ethernet cable in the Ethernet port. Plug the cable into the device you want to connect to your network. Your network is now fully functional. Follow the next steps to secure your network. Full manual Sitecom homeplug... -
Page 11: Setting Security
(NOTE: it is more convenient to bring devices, which are to be configured into the same logical network group, side by side during this procedure. After the network group is set, the devices can be deployed anywhere at home) Full manual Sitecom homeplug... -
Page 12: Create A Private Encrypted Network
Group button. This way, HomePlug B joins the same encrypted network as HomePlug A. Please note: If you want to connect with any of the below Sitecom Homeplugs, press the NMK button on these for 5~8 seconds to join a secure network. -
Page 13: Add An Extra Homeplug
During standby, only the POWER LED blinks at a slow rate. To exit standby, just insert the Ethernet cable to the Homeplug, or wake up the connected device. Some computers support the Wake on LAN function that may Note: cause the Homeplug not to enter the standby mode. Full manual Sitecom homeplug... -
Page 14: Appendix: Declaration Of Conformity
Appendix: Declaration of Conformity Full manual Sitecom homeplug... - Page 15 Full manual Sitecom homeplug...
- Page 16 Full manual Sitecom homeplug...
- Page 17 Full manual Sitecom homeplug...
- Page 18 Revision 1.1 © Sitecom Europe BV 2013 Note: All the information contained in this manual was correct at the time of publication. However, as our engineers are always updating and improving the product, your device may have a slightly different appearance or modified functionality than presented in this manual.
