Summary of Contents for AOC C2783FQ

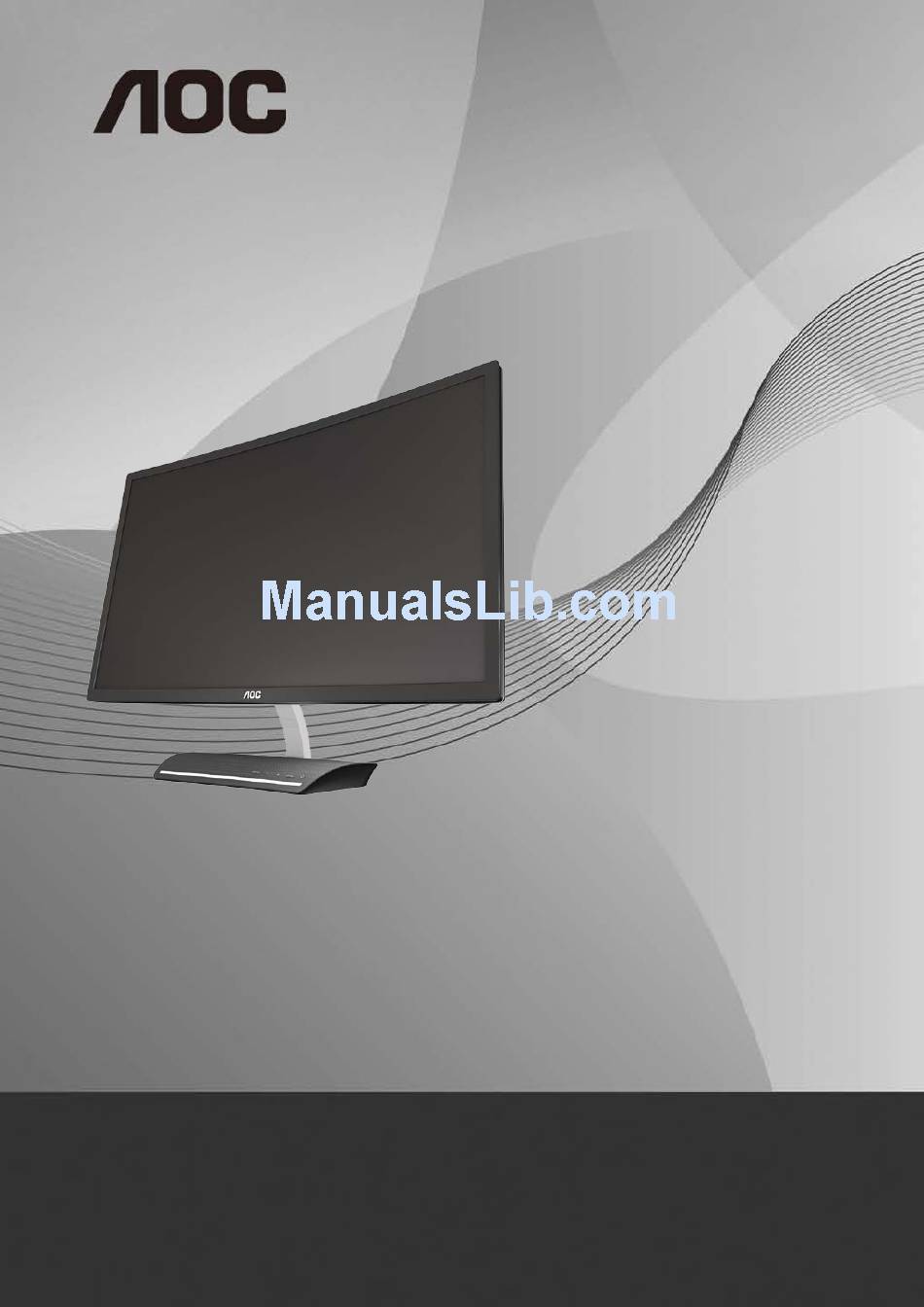

- Page 1 LCD Monitor User Manual C2783FQ LED backlight www.aoc.com ©2015 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ..................................4 National Conventions ............................4 Power ................................5 Installation ................................6 Cleaning ................................7 Other .................................. 8 Setup ..................................9 Contents in Box ..............................9 Adjusting Viewing Angle ........................... 10 Connecting the Monitor ............................ 11 Adjusting ................................. 12 Setting Optimal Resolution .......................... - Page 3 Service ..................................66 Warranty Statement for Europe ........................66 Warranty Statement for Middle East and Africa (MEA) ..................68 AOC International (Europe) B.V........................70 Warranty Statement for North & South America (excluding Brazil) ............71 EASE PROGRAME ............................73...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Setup
DVI cable Analog Cable HDMI cable DP cable Not all signal cables (Audio, Dual link DVI, Analog, DP, HDMI, MHL cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -3°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: Display port HDMI/MHL Analog (D-Sub 15-Pin VGA cable) AUDIO IN Earphone out Power To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the adapter cable to the DC port on black of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. -
Page 12: Adjusting
Adjusting Setting Optimal Resolution Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by” to “Category”. Click Appearance and Personalization. - Page 13 Click DISPLAY. Optimal preset resolution Set the resolution SLIDE-BAR to...
-
Page 14: Windows 7
Windows 7 For Windows 7: Click START. Click CONTROL PANEL. Click APPEARANCE. Click DISPLAY... - Page 15 Set the resolution SLIDE-BAR to Optimal preset resolution.
-
Page 16: Windows Vista
Windows Vista For Windows Vista: Click START. Click CONTROL PANEL. Click Appearance and Personalization. Click Personalization... - Page 17 Click Display Settings. Optimal preset resolution Set the resolution SLIDE-BAR to...
-
Page 18: Windows Xp
Windows XP For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Click Appearance and Themes. 5 Double click DISPLAY. -
Page 19: Windows Me/2000
6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to Optimal preset resolution. Windows ME/2000 For Windows ME/2000: Click START. Click SETTINGS. Click CONTROL PANEL. Double click DISPLAY. Click SETTINGS. Optimal preset resolution Set the resolution SLIDE-BAR to... -
Page 20: Hotkeys
Hotkeys Source/Auto/Exit Clear Vision/< Volume/> Menu/Enter Power Menu/Enter Press to display the OSD or confirm the selection. Power Press the Power button to turn on/off the monitor. Volume/> When there is no OSD, press Volume adjust volume. Auto / Exit / Source hot key When there is no OSD, press Auto/Source button continuously about 2 second to do auto configure. - Page 21 Clear Vision When there is no OSD, Press the “<” button to activate Clear Vision. Use the “<” or “>” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold “<” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 22: Using "Mhl(Mobile High-Definition Link)
Using "MHL(Mobile High-Definition Link)" 1."MHL" (Mobile High-Definition Link) This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screenof the product. To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website. -
Page 23: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If there is a sub-menu, press to navigate through the sub-menu functions. -
Page 24: Luminance
Luminance MENU 1 Press (Menu) to display menu. MENU 2 Press to select (Luminance), and press to enter. 3 Press to select submenu. - Page 25 4 Press to adjust. AUTO 5 Press to exit Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Gamma1 Adjust to Gamma 1 Gamma Gamma2 Adjust to Gamma 2...
- Page 26 Weak Medium OverDrive Adjust the response time. Strong...
-
Page 27: Image Setup
Image Setup MENU 1 Press (Menu) to display menu. MENU 2 Press to select (Image Setup), and press to enter. 3 Press to select submenu. - Page 28 4 Press to adjust. AUTO 5 Press to exit Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise. Sharpness 0-100 Adjust picture sharpness. H.Position 0-100 Adjust the horizontal position of the picture. V.Position 0-100 Adjust the vertical position of the picture.
-
Page 29: Color Setup
Color Setup MENU 1 Press (Menu) to display menu. MENU 2 Press to select (Color Setup), and press to enter. 3 Press to select submenu. - Page 30 4 Press to adjust. AUTO 5 Press to exit Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Color Temp. Cool Recall Cool Color Temperature from EEPROM. sRGB Recall SRGB Color Temperature from EEPROM. User Recall User Color Temperature from EEPROM Full Enhance ON/OFF...
-
Page 31: Picture Boost
Picture Boost MENU 1 Press (Menu) to display menu. MENU 2 Press to select (Picture Boost), and press to enter. 3 Press to select submenu. - Page 32 4 Press to adjust. AUTO 5 Press to exit Bright Frame ON/OFF Enable/Disable Bright Frame Frame Size 14-100 Adjust the Size of the Frame Brightness 0-100 Brightness Adjustment for Enhance Area Contrast 0-100 Contrast Adjustment for Enhance Area H. position 0-100 Adjust the horizontal position of the Frame V.
-
Page 33: Osd Setup
OSD Setup MENU 1 Press (Menu) to display menu. MENU 2 Press to select (OSD Setup), and press to enter. 3 Press to select submenu. - Page 34 4 Press to adjust. AUTO 5 Press to exit English, France , Spanish, Portugues,German, Language Select the OSD language Italian,Dutch,Swedish, Finnish, Polish ,Czech, Russia,Korea, TChina, SChina,Japanese. Timeout 5-120 Adjust the OSD timeout. Adjust the horizontal position of the H. Position 0-100 OSD.
-
Page 35: Extra
Extra MENU 1 Press (Menu) to display menu. MENU 2 Press to select (Extra), and press to enter. 3 Press to select submenu. - Page 36 4 Press to adjust. AUTO 5 Press to exit Auto Auto Detect input signal D-SUB Select D-SUB signal source as input Input Select Select DVI signal source as input HDMI/MHL Select HDMI/MHL signal Source as input Select DP signal Source as input Auto Config.
-
Page 37: Exit
Exit MENU 1 Press (Menu) to display menu. MENU 2 Press to select (Exit), and press to enter. AUTO 3 Press to exit Exit Exit the main OSD... -
Page 38: Led Indicator
LED Indicator Status LED Color Full Power Mode Blue Power Saving Orange... -
Page 39: Driver
Driver Monitor Driver Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel” icon Set the “View by” to “Large icons” or “Small icons”. - Page 40 Click on the “Display” icon. Click on the “Change display settings” button. “ Click the Advanced Settings” button.
- Page 41 button Click the “Monitor” tab and then click the “Properties” Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button.
- Page 42 11. Select "Let me pick from a list of device drivers on my computer". 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13.
-
Page 43: Windows 7
Windows 7 Start Windows® 7 Click on the 'Start' button and then click on 'Control Panel'. Click on the “Display” icon. Click on the “Change display settings” button. - Page 44 “ Click the Advanced Settings” button. Click the “Monitor” tab and then click the “Properties” button. Click the “Driver” tab.
- Page 45 Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. Select "Let me pick from a list of device drivers on my computer". 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
- Page 46 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk drive. 13. Close all open windows and remove the CD. 14.
-
Page 47: Windows Vista
Windows Vista Click "Start" and "Control Panel". Then, double-click on "Appearance and Personalization". Click "Personalization" and then "Display Settings". Click "Advanced Settings...". - Page 48 Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". Click "Update Driver..."...
-
Page 49: Windows Xp
Windows XP 1. Start Windows® XP 2. Click on the 'Start' button and then click on 'Control Panel'. 3. Select and click on the category ‘Appearance and Themes’ 4. Click on the 'Display' Item. - Page 50 5. Select the 'Settings' tab then click on the 'Advanced' button. 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.
- Page 51 8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10.
-
Page 52: Windows 2000
Windows 2000 Start Windows® 2000. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active. -
Page 53: I-Menu
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. The software Supported operating systems: Windows 8, Windows 7, Windows Vista, Windows XP. -
Page 54: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 55: Screen
Screen+ Welcome to "Screen+" software by AOC. Screen+ software is a desktop screen splitting tool; it splits the desktop into different panels, and each panel displays a different window. You only need to drag the window to a corresponding panel when you want to access it. It supports multiple monitor display to make your task easier. -
Page 56: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. Picture Is Fuzzy & Has Make sure you are not using an extension cable or switch box. - Page 57 The Computer Power Switch should be in the ON position. The Computer Video Card should be snugly fitted in its slot. Make sure the monitor's video cable is properly connected to the computer. Monitor Is Stuck In Active Inspect the monitor's video cable and make sure no pin is bent. Off-Mode"...
-
Page 58: Specification
Specification General Specification Model name C2783FQ Driving system TFT Color LCD Viewable Image Size 68.6cm diagonal Pixel pitch 0.3114(H)mm x 0.3114(V)mm Panel Video R, G, B Analog Interface & HDMI Interface Separate Sync. H/V TTL Display Color 16.7M Colors Pixel Clock 148.5 MHz... -
Page 59: Preset Display Modes
Preset Display Modes Standard Resolution H. Frequency (kHz) V. Frequency (Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 DOS MODE 720x400@70Hz 31.469 70.087 SVGA 800x600@56Hz 35.156 56.25 SVGA 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 MAC MODE 832x624@75Hz... -
Page 60: Pin Assignments
Pin Assignments 15-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 24-Pin Color Display Signal Cable Pin No. Signal Name Pin No. - Page 61 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock TMDS Data 2 TMDS Data 1+ Reserved (N.C. on device TMDS Data 1Shield TMDS Data 1 TMDS Data 0+ DDC/CEC Ground TMDS Data 0 Shield...
-
Page 62: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 63: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 64: Weee Declaration
WEEE Declaration Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 65: Epa Energy Star
EPA Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency. (FOR EPA CERTIFIED MODELS) -
Page 66: Service
The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition: •... - Page 67 If your warranty has expired, you still have access to all available service options, but you will be responsible for the cost of service, including parts, labor, shipping (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service.
-
Page 68: Warranty Statement For Middle East And Africa (Mea)
During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,... - Page 69 • Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center • Improper environments like humidity, water damage and dusts • Damaged by violence, earthquakes and terrorist attacks • Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other...
-
Page 70: Aoc International (Europe) B.v
No manufacturer can guarantee that all panels will be free from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable defect levels for each type. -
Page 71: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 72 ARGENTINA: http://ar.aoc.com/support/find_service_center BOLIVIA: http://bo.aoc.com/support/find_service_center CHILE: http://cl.aoc.com/support/find_service_center COLOMBIA: http://co.aoc.com/support/find_service_center COSTA RICA: http://cr.aoc.com/support/find_service_center DOMINICAN REPUBLIC: http://do.aoc.com/support/find_service_center ECUADOR: http://ec.aoc.com/support/find_service_center EL SALVADOR: http://sv.aoc.com/support/find_service_center GUATEMALA: http://gt.aoc.com/support/find_service_center HONDURAS: http://hn.aoc.com/support/find_service_center NICARAGUA: http://ni.aoc.com/support/find_service_center PANAMA: http://pa.aoc.com/support/find_service_center PARAGUAY: http://py.aoc.com/support/find_service_center PERU: http://pe.aoc.com/support/find_service_center URUGUAY: http://pe.aoc.com/support/find_service_center VENEZUELA: http://ve.aoc.com/support/find_service_center IF COUNTRY NOT LISTED: http://latin.aoc.com/support/find_service_center...
-
Page 73: Ease Programe
Tube & LCD Panel) *AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC’s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.
