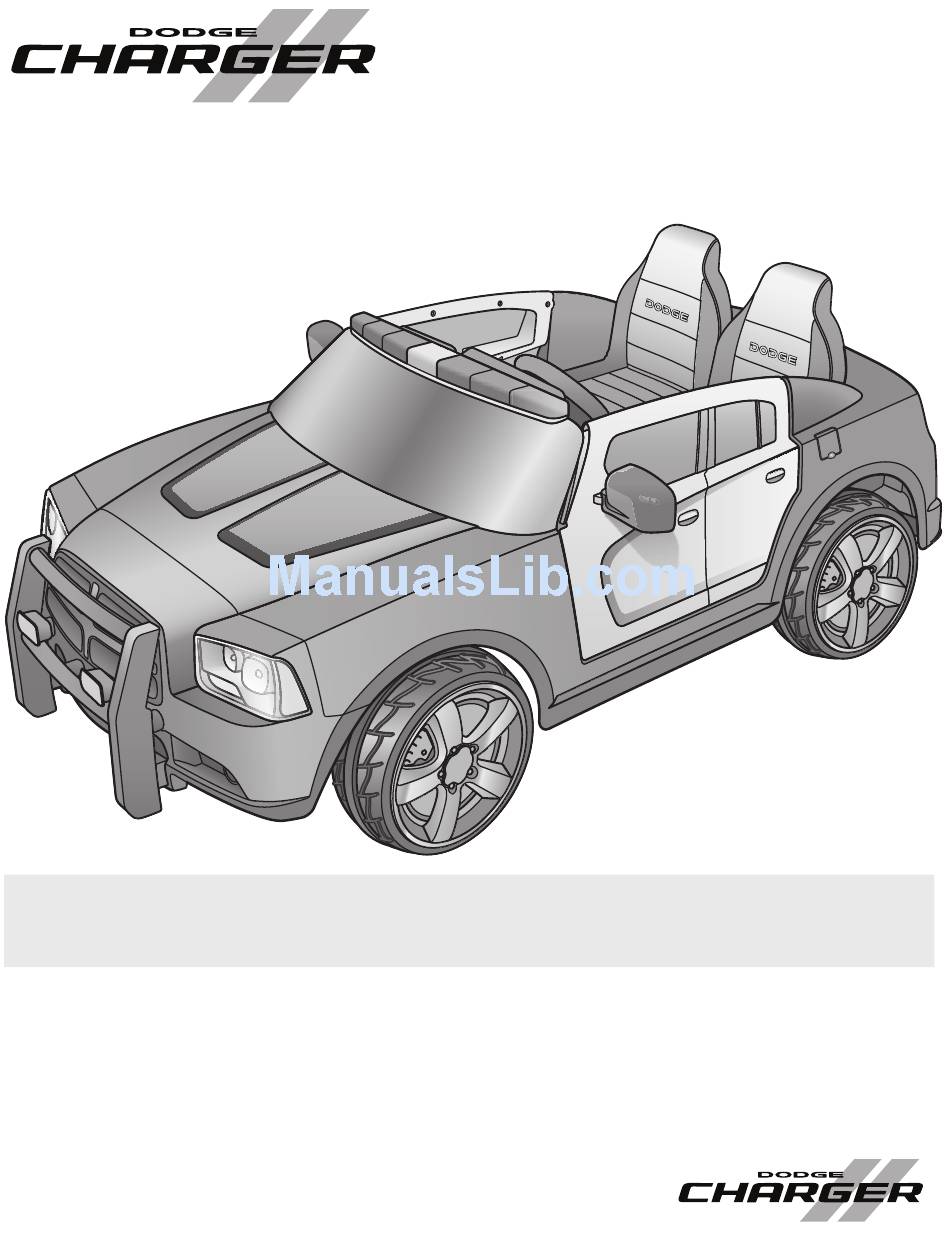

Police Car
Owner's Manual
The owner's manual contains assembly, use and maintenance instructions. The Police Car must be
assembled by an adult who has read and understands the instructions in this manual. Keep the packaging
away from children and dispose of all packaging before use.
© 2012 Pacific Cycle Inc.
4902 Hammersley Rd.
Madison, WI 53711
United States of America
Phone: (877) 741-6154
www.kidtraxtoys.com
Styles and colors may vary
Made in China
Keep instructions for future reference.
Model Number: KT1111WM, KT1111i
®, TM, © Chrysler Group LLC 2012
Advertisement
Table of Contents
Related Manuals for KidTrax Dodge Charger Police Car KT1111WM
Summary of Contents for KidTrax Dodge Charger Police Car KT1111WM
- Page 1 Police Car Owner’s Manual Model Number: KT1111WM, KT1111i The owner’s manual contains assembly, use and maintenance instructions. The Police Car must be assembled by an adult who has read and understands the instructions in this manual. Keep the packaging away from children and dispose of all packaging before use. ©...
-
Page 2: Thank You
For purchasing the Police car. This car features flashing lights and siren, engine and police dispatch sound effects, megaphone, battery charge indicator, and an easy direct connect recharging system. We appreciate your business. Please call us at KidTrax Toys Consumer Relations at 877-741-6154 with comments or questions. -
Page 3: Table Of Contents
Contents Safety....... 1 Use ....... . 12 Battery Warnings . -
Page 4: Safety
The following safety hazards may result in serious injury or death to the user of the Police Car: • Use of a battery or charger other than the supplied KidTrax Toys 12V rechargeable battery and charger may cause a fire or explosion. Only use the supplied KidTrax Toys 12V rechargeable battery and charger with the vehicle. -
Page 5: User Warnings
WARNING! • Avoid direct contact between the terminals. Picking up the battery by the wires or charger can cause damage to the battery and may result in a fire. Always pick up the battery by it’s case or handles. • Liquids on the battery may cause fire or electric shock. Always keep all liquids away from the battery and keep the battery dry. -
Page 6: Parts
Parts Main Body Components Before you begin assembly, be sure you have all parts, hardware and tools needed to assemble your Police car. Rear body Dashboard Steering wheel with Megaphone Seats(2) wire connectors Police Car Body Includes: Kid Trax 12-volt battery Front body Battery charger Front wheel (2) -
Page 7: Hardware
Hardware Most hardware will come attached to the part. Remove the hardware just before the assembly step, and keep handy for installation. 5 Medium screws for 3 Medium screws for front grill assembly rear body assembly 1½ ” Mirror screw and small nut Front Grill metal Connector hardware assembly Wheel hardware:... -
Page 8: Assembly
Assembly Attach the Front Grill Remove the medium screw and nut from to the metal connector, and save for step three. Insert the metal connector over the square metal tubing on the car body and the front grill. Push the metal tubing together until the two pieces meet inside the metal connector. -
Page 9: Attach The Front Wheels
Attach the Front Wheels Slide a large washer onto the axle. Note: The Washer may already be on the axle. Slide a wheel onto the axle with FRONT facing toward vehicle. Slide a hubcap onto the axle, fitting the three locating pins into the holes in the wheel. -
Page 10: Attach The Car Doors
Attach the Car Doors Slide the bottom of the car door hinge into the car hinge pocket until the steel plate rests on the recessed area of the car body. Align the holes of the steel plate with the screw holes on the recessed area of the car body. -
Page 11: Attach The Dashboard
Attach the Dashboard Slide the Megaphone onto the bracket. Open the car doors. This makes it easier to attach the dashboard. Slide the four tabs on the front of the Dashboard assembly into the four slots on the car body. Note: Be sure the connector wires are not... -
Page 12: Install The Steering Rod
Install the Steering Rod Place the vehicle on soft material that will protect it from scratching or damage. Carefully turn the vehicle onto its side. Note: It is helpful to have a second person assisting you with these steps. Insert the short end of the Steering Rod through the bracket hole of the front axle. -
Page 13: Attach The Rear Body
Only use the KidTrax toys 12 volt charger included with the car (Input: AC 120V, 60Hz Output: DC 6V). Place battery connector and... -
Page 14: Attach The Car Seats
Attach the Car Seats Locate the bracket behind in the back of the car seat. Align the car seat bracket with the car seat slot, and the plastic screw with lock the car seat screw hole. Lower the unlock seat into place. 3. -
Page 15: Use
Charge the Battery The first charge will take about 20-24 hours. Slide the battery charger port window up (located next to left door), and insert the battery connector. Plug the into a standard 120V charger wall outlet. Note: The charger may feel warm during charging. -
Page 16: Maintenance
Do not use car wax, abrasive cleaners or wash the vehicle with soap and water. Water will damage the motor, electrical system and battery. • KidTrax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. Call KidTrax Toys Consumer Relations at 877-741-6154 for an authorized service center. - Page 17 Take it to a federal or state-approved lead acid battery recycler, such as a KidTrax Toys authorized service center or your local automotive battery retailer. Do not throw the battery...
-
Page 18: Fcc Information
Battery Fuse The KidTrax Toys 12 volt battery features a thermal fuse with a reset fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power... -
Page 19: Troubleshooting Guide
KidTrax Toys Consumer Relations. If you still need help resolving the problem please call 877-741-6154. KidTrax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. Call the number listed above for the closest center to you. -
Page 20: Services, Repairs And Parts
Problem Possible Cause Remedy Vehicle needs a push Poor contact of wires or Check that battery connectors are firmly plugged to go forward connectors into each other. If wires are loose around the motor call Consumer Relations at 877-741- 6154 for an authorized service center “Dead Spot”... -
Page 21: Warranty
To make a claim under this warranty you may contact us at www.kidtraxtoys.com; fax us at 1-800-858-2800, 24 hours a day; write to KidTrax Consumer Relations Department, KidTrax Toys, P.O. Box 344 Olney, IL 62450 or call 1-877-741-6154 from 8 a.m. to 5 p.m., Monday through Friday, CST. Proof of purchase is required, and shipping charges are the responsibility of the consumer. -
Page 22: Contact Information
Contact Information If you have any questions or comments please contact us at: In U.S.A. © 2012 Pacific-Cycle Inc. 4902 Hammersly Rd. Madison, WI 53711 Customer Service: 877-741-6154 customerservice@kidtraxtoys.com www.kidtraxtoys.com...
