XCell Fury Extreme Assembly Manual

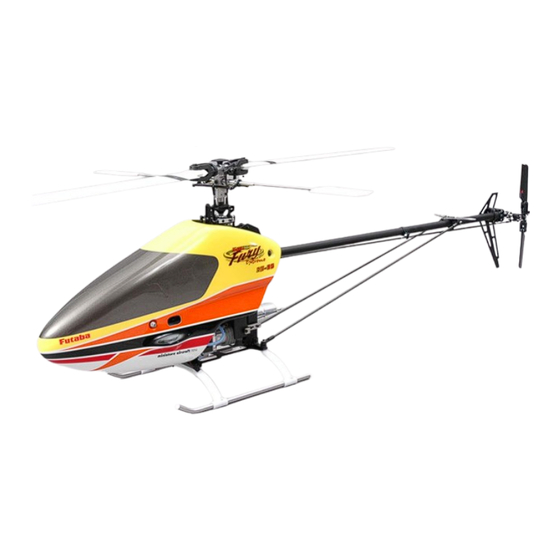

XCell Fury Extreme
Assembly Manual
Version 1.0
Created: 11/14/2006
Copyright Miniature Aircraft US
This document may not be distributed without permission of Miniature Aircraft USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fury Extreme and is the answer not in the manual?

Questions and answers

Related Manuals for XCell Fury Extreme

Summary of Contents for XCell Fury Extreme

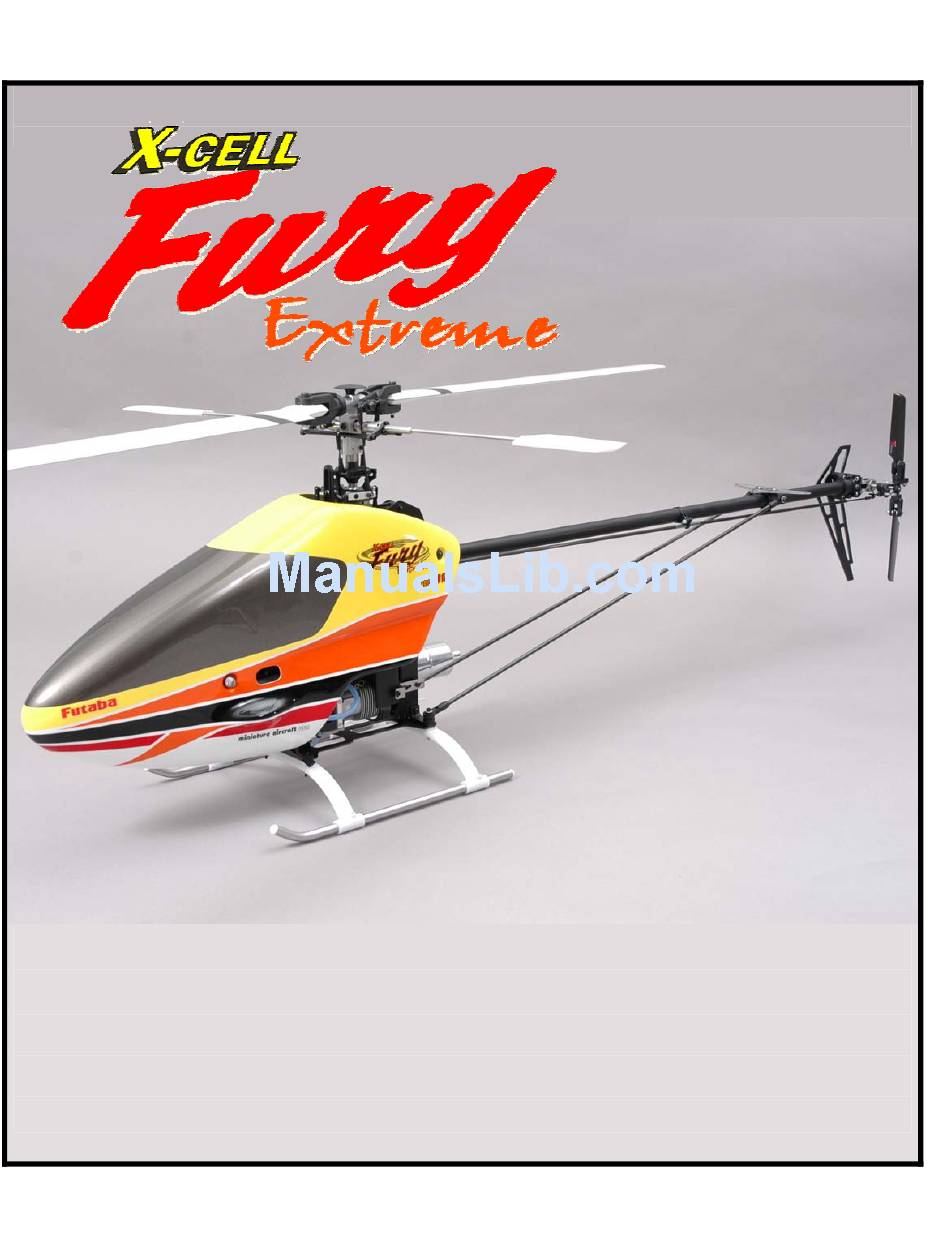

  • Page 1 XCell Fury Extreme Assembly Manual XCell Fury Extreme Assembly Manual Version 1.0 Created: 11/14/2006 Copyright Miniature Aircraft US This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 2 XCell Fury Extreme Assembly Manual For More Information contact: Miniature Aircraft 31713 Long Acres Drive Sorrento, FL 32776 USA Phone 352-383-3201 352-383-3204 Email: minair@miniatureaircraftusa.com Page 2 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 3: Table Of Contents

    XCell Fury Extreme Assembly Manual Table Of Contents REVISIONS TO THIS MANUAL................................6 ERRATA ......................................... 6 I. KIT INTRODUCTION ....................................7 R/C H ..................................... 7 ELICOPTER AFETY R/C H ............................7 UIDELINES FOR ELICOPTER LIGHT X-CELL L ..................................8 IMITED ARRANTY .....................................
  • Page 4 XCell Fury Extreme Assembly Manual 3C.5 - Assemble Rudder Bellcrank................................51 3C.6 - Install Rudder Bellcrank ..................................52 #4 – F RAME SSEMBLY .................................. 53 A) Chassis Components - Bag #4A............................53 B) Engine Components - Bag #4B ............................. 54 4B.1 –...
  • Page 5 XCell Fury Extreme Assembly Manual #9 – T OTOR SSEMBLY ..............................109 A) Tail Rotor Hub - Bag #9A ..............................109 9A.1 – Assemble Tail Rotor Hub ................................. 110 9A.2 – Install Tail Rotor Blades................................... 112 B) Tail Rotor Pitch Yoke - Bag #9B............................113 9B.1 –...

  • Page 6: Revisions To This Manual

    XCell Fury Extreme Assembly Manual Revisions to this Manual R1.0 • 10/01/06 – Revisions for final kitting modifications • 11/10/06 – Revisions to main rotor blade arm bearing order For the most current version of this manual, please refer to www.miniatureaircraftusa.com, visit the Extreme...

  • Page 7: Kit Introduction

    XCell Fury Extreme Assembly Manual I. Kit Introduction R/C Helicopter Safety A radio controlled model helicopter is a technically complex device that must be built and operated with care. It is also a fascinating and challenging part of the R/C sport, the mastery of which is very rewarding.

  • Page 8: X-Cell Limited Warranty

    XCell Fury Extreme Assembly Manual X-CELL Limited Warranty The warranty covers defects in material or workmanship or missing components to the original purchaser for 30 days from the date of purchase. Miniature Aircraft, USA will replace or repair, at our discretion, the defective or missing component.

  • Page 9: Kit Prerequisites

    XCell Fury Extreme Assembly Manual II. Kit Prerequisites In order to assemble this kit, you will need a number of additional supplies and tools to ensure the best final result. They are as follows: Supplies Needed for Assembly Blue Thread...

  • Page 10: Tools Needed For Assembly

    XCell Fury Extreme Assembly Manual Tools Needed for Assembly M5 Nut Driver Needle Nose Pliers 8.0mm wrench M5.5 Nut Driver Phillips Screwdriver #1 5.5mm wrench M7 Nut Driver Flat Screwdriver 2.5mm 4.0mm wrench M4 Nut Driver Razor Knife (Xacto) 1.5mm allen driver 2.0mm allen driver...

  • Page 11: Additional Components Needed

    XCell Fury Extreme Assembly Manual Additional Components Needed Gyro Servos Servo 4 each 1 each Switch Receiver Motors: OSMax .91SZH .91ST4 Battery – NiCad NiMH LiPo 1700mah or more Gyro – Heading Hold Created: 11/14/2006 Page 11 of 138 Copyright Miniature Aircraft USA...
  • Page 12 XCell Fury Extreme Assembly Manual Main Rotor Blades 690-710mm 5mm blade bolt 14mm blade root Tail Rotor Blades 95-115mm Mufflers: Hatori SB16/SB17FH Muscle Pipe/MP2 Page 12 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 13: Kit Assembly Process

    XCell Fury Extreme Assembly Manual III. Kit Assembly Process Assembly Tips • Please note that this assembly manual consists of a photographic journal of the steps necessary to construct this helicopter. The builder is encouraged to pay close attention to the "building notes" and other details noted in the pictures and to carefully review all the photo’s in a given step.
  • Page 14 XCell Fury Extreme Assembly Manual Part # Description Actual Size 0027 M2.2 x 9.5 phillips screw ------------- 0029 M2.2 x 13 phillips --------------------- 0032 M2.9 x 9.5 phillips screw ------------- 0034 M2.9 x 9.5 phillips flat head screw -- 0038 M2.5 x 10 phillips bolts ---------------...

  • Page 15: Step #1 - Gear Ratios

    XCell Fury Extreme Assembly Manual Step #1 – Gear Ratios A) Gear Ratio - Bag #1A – Kit Specific 8:18 Ratio #115-50 #115-51 Left Motor Right Motor Mount – Mount – 8:18 8:18 1 each 1 each #115-47 #119-118 Motor...

  • Page 16: 8:45 Ratio

    XCell Fury Extreme Assembly Manual 8:45 Ratio #119-50 #119-51 Left Motor Mount – Right Motor Mount – 8:45 8:45 1 each 1 each #119-120 Graphite Ratio #0865-93 Plates – 8:45 93 tooth main gear 2 each 1 each Building Notes – Locate Bag 1A. If you purchased the 8.45 kit it will contain parts specific to the 8.45 gear ratio. Verify that they are correct.

  • Page 17: Step #2 - Left Frame

    XCell Fury Extreme Assembly Manual Step #2 – Left Frame A) Main Frame Components - Bag #2A #120-10 Main Shaft 1 each #115-30 Velcro – 12” 1 each #115-14 Left Main Frame 1 each #115-24 Horizontal Front Channel 1 each...

  • Page 18: B) Frame Fasteners - Bag #2B

    XCell Fury Extreme Assembly Manual B) Frame Fasteners - Bag #2B #126-69 #115-60 #115-62 Graphite Tubes 22mm Hex Switch Plate 2 each Spacer 1 each 2 each #126-68 15mm Hex #0217-9 Spacer 140° Bellcrank 2 each Spacer 1 each #106-41...

  • Page 19: - Assemble Left Frame - Part 1

    XCell Fury Extreme Assembly Manual 2B.1 – Assemble Left Frame – Part 1 Parts Relationship #0032 (2) #0874-1 #0169 #126-69 #0217-9 140° ONLY #0060-1 (2) #115-20 #0061 #0019 #0060-1 #115-20 #126-69 #0060-1 #115-14 #0060-1 #0061 #126-55 #126-69 #0862-1 #0019 #0061...
  • Page 20 XCell Fury Extreme Assembly Manual 2B.1.a 2B.1.b 2B.1.c #115-20 #0060-1 #0060-1 #126-69 #126-55 2B.1.d 2B.1.e 2B.1.f #115-58 #115-62 #0089 #115-62 #0079 2B.1.g #106-41 Page 20 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 21: - Assemble Left Frame - Part 2

    XCell Fury Extreme Assembly Manual 2B.2 – Assemble Left Frame – Part 2 Parts Relationship #0064-3 (2) #115-28 #115-30 #0019 #0019 #115-24 #0019 #0019 #0064 #0064 #115-26 2B.2.a 2B.2.b 2B.2.c #115-30 #115-26 #0064 #0019 Created: 11/14/2006 Page 21 of 138...
  • Page 22 XCell Fury Extreme Assembly Manual 2B.2.d 2B.2.e 2B.2.f #0217-9 #0064-3 140° ONLY #0169 120° #0019 Location 2B.2.G 2B.2.H 2B.2.I #0019 #0019 #0019 #0061 #0061 #115-10 2B.2.J 2B.2.K #0874-1 #00032 #0061 #0862-1 Page 22 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA...

  • Page 23: C) Drive Train Components - Bag #2C

    XCell Fury Extreme Assembly Manual C) Drive Train Components - Bag #2C #120-9 #123-87 #0232 Front Input Shaft 5mm collar 15 tooth bevel gear 1 each 1 each 1 each #115-18 #120-12 #120-8 Lower Main Shaft Block Upper Main Shaft Block...

  • Page 24: - Install Drive Train Components

    XCell Fury Extreme Assembly Manual 2C.1 – Install Drive Train Components Parts Relationship #0061 #0061 #120-12 #0051 (4) #120-8 #123-87 #232 #120-9 #0060-1 #0061 (2) #115-18 #0061 2C.1.a 2C.1.b 2C.1.c #120-12 #123-87 #0051 #120-8 #0051 #123-87 #115-18 Page 24 of 138...
  • Page 25 XCell Fury Extreme Assembly Manual 2C.1.d 2C.1.e Align set screw Tighten with against Flat on bearing Shaft Created: 11/14/2006 Page 25 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 26: D) Constant Drive - Bag #2D

    XCell Fury Extreme Assembly Manual D) Constant Drive - Bag #2D #0866-4 #0866-6 Main Hub Crown Gear Unit #0865-70 Mounting Base 1 each #0866-12 70 tooth 1 each Retaining Crown Gear Collar 1 each 1 each #0866-13 M14 x 0.1...

  • Page 27: - Assemble Constant Drive Unit

    XCell Fury Extreme Assembly Manual 2D.1 - Assemble Constant Drive Unit Parts Relationship #0866-70 #0866-6 #0088-2 (Qty 8) #0866-13 #0866-10 #0866-11 #0865-90 for 8.18 #0865-93 for 8.45 #0866-4 #0057 #0840-6 #0866-10 #0866-11 #0866-12 #0088 (Qty 4) Created: 11/14/2006 Page 27 of 138...
  • Page 28 XCell Fury Extreme Assembly Manual 2D.1.a 2D.1.b 2D.1.c #0866-70 #0866-4 #0865-90/93 #0866-4 #0088 (4) 2D.1.d 2D.1.e 2D.1.f #0866-10 #0866-11 #0088-2 (8) Do Not Overtighten Screws! Twist to Insert! #0866-13 2D.1.g 2D.1.h 2D.1.i #0866-10 #0866-11 #0866-12 Page 28 of 138 Created: 11/14/2006...

  • Page 29: - Install Main Shaft/Collars

    XCell Fury Extreme Assembly Manual 2D.2 – Install Main Shaft/Collars Parts Relationship #120-10 #0059-1 #0057 #120-12 #0875 #0866-12 #0875 #115-18 #0059-1 #120-8 #0840-6 2D.2.a 2D.2.b Building Notes – note the positions of the #0875 (2) bevels on the shaft collars.

  • Page 30: - Install Constant Drive

    XCell Fury Extreme Assembly Manual 2D.3 – Install Constant Drive 2D.3.a 2D.3.b 2D.3.c #0840-6 #0057 Slightly Forward Building Notes – Do not over tighten the set screw that captures the retaining pin Before tightening the lower main shaft collar, move the t/r pinion gear forward by 1/8”. Using two fingers hold pressure between the lower collar and the constant drive.

  • Page 31: - Install Left Gear Ratio Plate

    XCell Fury Extreme Assembly Manual 2D.4 – Install Left Gear Ratio Plate 2D.4.a Building Notes – the ratio plates are marked as left and right versions. Make sure you install the correct plate on the correct side. #0061 #0063 Created: 11/14/2006...

  • Page 32: E) Clutch Assembly - Bag #2E

    XCell Fury Extreme Assembly Manual E) Clutch Assembly - Bag #2E #121-11 11 Tooth Clutch Bell Unit 1 each #121-7 Clutch Unit 1 each #115-45 M6 O-Ring 1 each #0063 #0003 M3 x 10 M3 Washer - Large Socket Bolt...

  • Page 33: - Assemble Clutch

    XCell Fury Extreme Assembly Manual Parts Relationship #0063 #0063 #115-45 #121-11 #0003 #0003 #119-18/19 L #121-7 #0061 #0009 #0063 #0063 #0063 2E.1 - Assemble Clutch 2E.1.a 2E.1.b #115-45 #121-11 Building Notes – Do not lubricate the o- ring #121-7 Created: 11/14/2006...

  • Page 34: - Install Clutch Assembly

    XCell Fury Extreme Assembly Manual 2E.2 - Install Clutch Assembly 2E.2.a 2E.2.b 2E.2.c #0003 #0063 #0009 Building Notes – Do not tighten the four clutch bolts until gear spacing has been set. Set the gear spacing by running a small strip of paper between the gears as shown. While the paper strip is between the gears, tighten the four clutch bolts.
  • Page 35 XCell Fury Extreme Assembly Manual Created: 11/14/2006 Page 35 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 36 XCell Fury Extreme Assembly Manual Page 36 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 37: Step #3 - Right Frame

    XCell Fury Extreme Assembly Manual Step #3 – Right Frame A) Right Frame - Bag #3A #115-35 Main Frame - Right 1 each Created: 11/14/2006 Page 37 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 38: B) Right Frame Components - Bag #3B

    XCell Fury Extreme Assembly Manual B) Right Frame Components - Bag #3B #0003 #115-40 #115-98 M3 Washer Large CNC Landing #0217-9 Lower Clutch Spacer 2 each Gear #0169 140° Bellcrank 1 each Brackets Bellcrank Stud Spacer 2 each 2 each...

  • Page 39: - Assemble Right Frame

    XCell Fury Extreme Assembly Manual 3B.1 – Assemble Right Frame Parts Relationship #0169 #0217-9 140° ONLY #0034 (2) #0169 #0061 #0060-1 #0060-1 #0019 #126-68 140° #0061 Bellcrank #0060-1 120° Location Bellcrank Location #0019 #0061 (2) #0060-1 #126-69 #0061 #0089 #0061...
  • Page 40 XCell Fury Extreme Assembly Manual 3B.1.a 3B.1.b 3B.1.c #0060-1 (4) #0169 #0019 #126-68 #0217-9 #126-69 140° ONLY #0169 3B.1.d 3B.1.e 120° 120° Bellcrank Bellcrank Location Location #0019 Completed Completed Inside Outside View 140° View 140° Page 40 of 138 Created: 11/14/2006...

  • Page 41: - Install Right Frame

    XCell Fury Extreme Assembly Manual 3B.2 – Install Right Frame 3B.2.a Right Frame In Place 3B.2.b 3B.2.c 3B.2.d #106-41 #0089 #0034 3B.2.e 3B.2.f #0061 Building Notes – Install the bolts through the frame channels with lock nuts. Make sure any threaded bolts that don’t use #0061 lock nuts are installed with thread lock.
  • Page 42 XCell Fury Extreme Assembly Manual Page 42 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 43: - Install Right Ratio Plate

    XCell Fury Extreme Assembly Manual 3B.3 - Install Right Ratio Plate Parts Relationship #0003 #0003 #0063 #0063 #115-96 #0060-1 #0060-1 #119-18/19 R #0063 #0061 #0060-1 #0009 #115-98 #0063 #0063 3B.3.a 3B.3.b 3B.3.c #0060-1 #115-96 #0003 (2) #119-18/19 R #0063 (4)
  • Page 44 XCell Fury Extreme Assembly Manual 3B.3.d Building Notes – After the ratio plate is in place, first tighten the bolts around the outside of the plate. Then tighten the four bolts that attach the plate to the clutch assembly. Make sure all bolts are installed with thread lock.

  • Page 45: - Install Landing Gear Mounts

    XCell Fury Extreme Assembly Manual 3B.4 – Install Landing Gear Mounts Parts Relationship #115-40 #0063 #0063 #0019 (2) #0019 (2) #0063 #0063 3B.4.a 3B.4.b 3B.4.c Created: 11/14/2006 Page 45 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 46: C) Control Bellcranks - Bag #3C

    XCell Fury Extreme Assembly Manual C) Control Bellcranks - Bag #3C #0131 #0562-1 Plastic #0019 M3 Shim Bushing #0113 M3 Locknut 1 each 1 each M3 Double 2 each #0107 Ball M3 x 6 1 each Threaded Ball #0159 5 each...

  • Page 47: - Assemble Aileron/Pitch Bellcranks

    XCell Fury Extreme Assembly Manual 3C.1 – Assemble Aileron/Pitch Bellcranks Parts Relationship #0159 #0167 #0107 #0159 #0171 #0051 #0107 3C.1.a 3C.1.b #0159 #0107 Created: 11/14/2006 Page 47 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 48: - Install Aileron/Pitch Bellcranks

    XCell Fury Extreme Assembly Manual 3C.2 – Install Aileron/Pitch Bellcranks 3C.2.a 3C.2.b #0171 #0051 Page 48 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 49: - Assemble Elevator Bellcrank

    XCell Fury Extreme Assembly Manual 3C.3 - Assemble Elevator Bellcrank Parts Relationship #0105 #0113 #0131 #0009 #0562-1 #115-34 #0167 #0159 (2) #0019 (2) #0061 (2) #0866-11 3C.3.a 3C.3.b #0159 (2) #0113 #0105 Created: 11/14/2006 Page 49 of 138 Copyright Miniature Aircraft USA...

  • Page 50: - Install Elevator Bellcrank

    XCell Fury Extreme Assembly Manual 3C.4 - Install Elevator Bellcrank 3C.4.a 3C.4.b 3C.4.c #0131 #0009 #115-34 #0562-1 3C.4.d 3C.4.e 3C.4.f #0019 (2) #0061 (2) Page 50 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 51: - Assemble Rudder Bellcrank

    XCell Fury Extreme Assembly Manual 3C.5 - Assemble Rudder Bellcrank Parts Relationship 3C.5.a #0105 #0636 #0636 (2) #0862-4 3C.5.b #115-38 #0862-4 #0107 3C.5.c #0636 Created: 11/14/2006 Page 51 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 52: - Install Rudder Bellcrank

    XCell Fury Extreme Assembly Manual 3C.6 - Install Rudder Bellcrank 3C.6.a #0061 #0009 Page 52 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 53: Step #4 - Frame Assembly

    XCell Fury Extreme Assembly Manual Step #4 – Frame Assembly A) Chassis Components - Bag #4A #0546-21 Fan Tool 1 each #3933 Struts - White 2 each #115-57 #0548-5 Base Plate Cooling 1 each Shroud 1 each #122-39 Skids 2 each Building Notes –...

  • Page 54: B) Engine Components - Bag #4B

    XCell Fury Extreme Assembly Manual B) Engine Components - Bag #4B #115-53 Inner Motor Mount #546-11 1 each #0579-4 Upper Collet - YS Cooling Fan 1 each 1 each #546-5 #0332 Upper M8 x 13 x 1 Collet Shim Washer...

  • Page 55: - Prepare Engine

    XCell Fury Extreme Assembly Manual 4B.1 – Prepare Engine Parts Relationship #546-16 (2) Nut From Washer Engine from engine #579-4 #0332 #546-6 #546-5 – OS #546-11 - YS 4B.1.a 4B.1.b 4B.1.c #546-6 washer #579-4 Created: 11/14/2006 Page 55 of 138...
  • Page 56 XCell Fury Extreme Assembly Manual 4B.1.d 4B.1.e 4B.1.f #546-5 – OS – small ledge #546-5 #0332 #546-11 – YS – deep ledge #546-11 4B.1.g 4B.1.h 4B.1.i #546-16 (2) Building Notes – you should dial indicate the fan runout to less than .002” using a dial indicator as shown.

  • Page 57: - Install Engine Mounts

    XCell Fury Extreme Assembly Manual 4B.2 – Install Engine Mounts Parts Relationship #0079 #115-50/ #119-50 #0019 (2) #0078 (2) #0067 (2) #0019 #0003 (2) #0077 #115-53 #0063 (2) #0003 #0077 #0019 #0019 (2) #0067 (2) #0080 (2) #0003 (2) #115-51/...
  • Page 58 XCell Fury Extreme Assembly Manual 4B.2.d 4B.2.e 4B.2.f #0079 #115-51/ #0067 #119-51 #0003 #0003 #0067 #115-50/ #119-50 #0019 (4) #0019 #0019 4B.2.g Page 58 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 59: - Install Engine

    XCell Fury Extreme Assembly Manual 4B.3 – Install Engine 4B.3.a 4B.3.b 4B.3.c #115-47 #115-47 8.18 Only 8.18 Only #0080 (2) #0079 (2) 4B.3.d 4B.3.e Building Notes – There should be no more than .020” gap between the fan and clutch driver.

  • Page 60: C) Landing Gear - Bag #4C

    XCell Fury Extreme Assembly Manual C) Landing Gear - Bag #4C #3937-1 Skid Plugs White 4 each #0003 M3 Washer Large #0019 M3 Locknut 4 each 2 each #0075 M3 x 25 #0058-1 Socket Bolt M4 x 6 2 each...
  • Page 61 XCell Fury Extreme Assembly Manual 4C.1.a 4C.1.b 4C.1.c #115-57 Drill with #29 #3933 Then with #42 Drill bits #122-39 #3933 (2) 4C.1.d 4C.1.e 4C.1.f #0019 #0003 #0075 36 mm 4C.1.g 4C.1.h 4C.1.i #0003 #3937-1 (4) #0063 #0058-1 (4) Created: 11/14/2006...

  • Page 62: D) Fan Shroud Mounts - Bag #4D

    XCell Fury Extreme Assembly Manual D) Fan Shroud Mounts - Bag #4D #0032 M2.9 x 9.5 Phillips Screw 2 each #3923-1 Round Plastic Spacers 4 each #115-58 Fan Shroud Braces 3 each #0060-1 #0061 #0063 #0065 #0029 M3 x 6 Socket Bolt...

  • Page 63: - Assemble/Install Fan Shroud/Mounts

    XCell Fury Extreme Assembly Manual 4D.2 – Assemble/Install Fan Shroud/Mounts Parts Relationship #115-58 #115-58 #0065 #0065 #3923-1 (2) #3923-1 (2) #0063 #0063 #0548-5 #0060-1 #0060-1 #0029 (5) #0032 #0032 #115-58 #0061 (2) 4D.2.a 4D.2.b #3923-1 #0060-1 #0548-5 #0032 #0065 #115-58 #0063 Building Notes –...

  • Page 64: - Install Muffler

    XCell Fury Extreme Assembly Manual 4D.2.d #115-58 #3923-1 #115-58 #0061 #0032 #0060-1 #0063 #0063 4D.3 – Install Muffler 4D.3.a 4D.3.b Trim Shroud Page 64 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 65 XCell Fury Extreme Assembly Manual Created: 11/14/2006 Page 65 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 66 XCell Fury Extreme Assembly Manual Page 66 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 67: Step #5 - Fuel Tank

    XCell Fury Extreme Assembly Manual Step #5 – Fuel Tank A) Fuel Tank - Bag 5A #106-52 Fuel Tank Pre-Drilled #0397 1 each 12” Fuel Line 1 each #0401 #0013 Clunk M5 Hex Nut 1 each 1 each #115-65 #0011...

  • Page 68: - Assemble Fuel Tank

    XCell Fury Extreme Assembly Manual 5A.1 - Assemble Fuel Tank Parts Relationship 5A.1.a #115-65 #0409 #0401 #106-52 #0405 5A.1.b #0405 #0011 #0011 #0013 #0013 5A.1.c 5A.1.d #115-65 Page 68 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 69 XCell Fury Extreme Assembly Manual 5A.1.e 5A.1.f #0409 5A.1.g 5A.1.h #0409 Created: 11/14/2006 Page 69 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 70: - Install Fuel Tank

    XCell Fury Extreme Assembly Manual 5A.2 - Install Fuel Tank 5A.2.a 5A.2.b 5A.2.c 5A.2.d 5A.2.e 5A.2.f Page 70 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 71: Step #6 - Swashplate/Washout Mixer

    XCell Fury Extreme Assembly Manual Step #6 – Swashplate/Washout Mixer A) Swashplate - Bag #6A – Kit Specific #0159 M3 x 7 Ball Bearing 1 each #0597-3 M3 x 4.6 Brass Spacer #0051 1 each M3 x 3 Socket Set Screw...

  • Page 72: - Assemble Swashplate

    XCell Fury Extreme Assembly Manual 6A.1 - Assemble Swashplate Parts Relationship #0065 #0159 #0597-3 #0107 (3) #0009 140° Only 140° Only #0109 (2) #0217-1 #0112 (2) Page 72 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 73 XCell Fury Extreme Assembly Manual 6A.1.a #0159 #0065 #0051 (4) #0107 #0107 #0597-3 #0009 #0112 #0217-1 #0109 #0109 #0112 #0107 140° Swashplate #0107 #0107 120° Swashplate Created: 11/14/2006 Page 73 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 74: - Install Swashplate - 140° Kit

    XCell Fury Extreme Assembly Manual 6A.1.b Building Notes - Flip the swashplate over to its bottom and locate the four 3mm threaded holes. These four holes and set screws are for periodically #0051 (4) minimizing any free play that may develop as the swashplate bearing wears (excessive free play can cause inaccuracies in control inputs).

  • Page 75: B) Washout Mixer - Bag #6B

    XCell Fury Extreme Assembly Manual B) Washout Mixer - Bag #6B #0097 #0109 M3 x 22 #0133 M3 x 8 Phillips Bolt Ball Link - Long Threaded 2 each #106-08 4 each Ball M2 “C” Clips 2 each 4 each #0597-2 M3 x 3.4...

  • Page 76: - Assemble Washout Mixer

    XCell Fury Extreme Assembly Manual 6B.1 - Assemble Washout Mixer Parts Relationship #0869 #106-07 #0221 #106-08 #106-08 #0109 #0597-2 #0219 #0159 #0097 #0159 #0159 #0097 #0159 #0597-2 #106-08 #0109 #0221 #106-08 #106-07 #0869 6B.1.a 6B.1.b 6B.1.c #0221 #0159 #0109 #0597-2...
  • Page 77 XCell Fury Extreme Assembly Manual 6B.1.d 6B.1.e 6B.1.f #106-07 #106-08 #0159 6B.1.g 6B.1.h 6B.1.i 6B.1.j 6B.1.k 6B.1.l #0219 #106-08 #0097 Created: 11/14/2006 Page 77 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 78: - Install Washout Mixer

    XCell Fury Extreme Assembly Manual 6B.1.m 6B.2 - Install Washout Mixer Page 78 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 79: - Assemble Swashplate Control Rods

    XCell Fury Extreme Assembly Manual 6B.3 – Assemble Swashplate Control Rods 6D.3.a Aileron/Pitch #0133 (4) 26 mm #0227 (2) #0135 (2) Elevator Completed Control Rods Prints Actual Size #0313 6B.4 – Install Swashplate Control Rods 6D.3.a 6D.3.b 6D.3.c Created: 11/14/2006...

  • Page 80: Step #7 - Control System/Canopy

    XCell Fury Extreme Assembly Manual Step #7 – Control System/Canopy A) Servo Mounts - Bag #7A #115-30 Velcro – 24” 1 Each #0390 #0560-1 Wire Servo Spacers Retainers 4 Each 6 Each #0038 #0039 M2.5 x 10 M2.5 x 12...

  • Page 81: - Install Servos/Radio Gear

    XCell Fury Extreme Assembly Manual 7A.1 – Install Servos/Radio Gear Parts Relationship – Rudder, Aileron, Pitch #0060-1 #115-73 #0016 #115-74 #115-86 #0038 (4) #0060-1 Parts Relationship – Elevator #0560-1 (2) #0103 #0015 #0039 (4) #0560-1 (2) Created: 11/14/2006 Page 81 of 138...
  • Page 82 XCell Fury Extreme Assembly Manual 7A.1.a 7A.1.b 7A.1.c Throttle Servo Rudder Servo 7A.1.d 7A.1.e 7A.1.f Aileron Servo Aileron Servo 120° CCPM 140° CCPM Pitch Servo 140° CCPM 7A.1.g 7A.1.h 7A.1.i Elevator Elevator Servo - Front Servo - Back Pitch Servo 120°...
  • Page 83 XCell Fury Extreme Assembly Manual 7A.1.j 7A.1.k 7A.1.l 7A.1.m 7A.1.n 7A.1.o Antenna Routing 7A.1.p Created: 11/14/2006 Page 83 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 84: B) Ball Links - Bag #7B

    XCell Fury Extreme Assembly Manual B) Ball Links - Bag #7B #0133 Ball Links 10 Each #0015 M2 Hex Nuts #0103 6 Each M2 x 5 Threaded Balls 6 Each Building Notes – These parts will be used in the next steps...

  • Page 85: C) Control Rods - Bag #7C

    XCell Fury Extreme Assembly Manual C) Control Rods - Bag #7C #122-98 Graphite Tube 1 Each #0679 M2 x 170 Threaded Control Rod 1 Each #0373 M2 x 130 Threaded Control Rod 1 Each #106-42 M2 x 115 Threaded Control Rod 1 Each (140°) –...
  • Page 86 XCell Fury Extreme Assembly Manual Rudder 7C.1.c Completed Control Rods #106-42 Prints Actual Size #0679/ #122-98 Note: Lengths shown for both 120° and #0373 140° CCPM. Suggested Sizes Shown are for Futaba Servos and may need to be adjusted for your setup.

  • Page 87: D) Servo Supports - Bag #7D

    XCell Fury Extreme Assembly Manual D) Servo Supports - Bag #7D #115-73 M2.6 Brass Servo Stud Futaba 4 Each #115-86 Servo Supports 4 Each #115-74 M3.0 Brass Servo Stud JR/Airtronics 4 Each #0060-1 M3 x 6 Socket Bolt 2 each #0016 M2.5 Star...

  • Page 88: - Assemble/Install Servo Wheels

    XCell Fury Extreme Assembly Manual 7D.1 – Assemble/Install Servo Wheels 7D.1.a 7D.1.b 7D.1.c #0016 #115-73/ #0103 #115-74 19.5 mm #0015 Page 88 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 89 XCell Fury Extreme Assembly Manual 7D.1.d 7D.1.e Elevator Ball Inside Pitch Ball Inside Aileron Ball Inside Rudder Throttle Ball Outside Ball Outside Created: 11/14/2006 Page 89 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 90: - Install Servo Control Rods

    XCell Fury Extreme Assembly Manual 7D.2 – Install Servo Control Rods 7D.2.a 7D.2.b 7D.2.c 7D.2.d 7D.2.e Page 90 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 91: - Install Servo Supports

    XCell Fury Extreme Assembly Manual 7D.3 – Install Servo Supports 7D.3.a 7D.3.b #0060-1 #115-86 Created: 11/14/2006 Page 91 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 92: E) Canopy Mounts - Bag #7E

    XCell Fury Extreme Assembly Manual E) Canopy Mounts - Bag #7E #106-22 Rubber Grommets 2 Each #0053-5 M3 x 16 Socket Set Screw 2 Each #122-99 Canopy Knob #115-94 2 Each Rubber Grommets Small 2 Each 7E.1 – Assemble Canopy Knobs 7E.1.a...

  • Page 93: F) Canopy - Box Contents

    XCell Fury Extreme Assembly Manual F) Canopy – Box Contents #115-92 – Extreme Decals #115-100 – Extreme Manuals #115-90 Extreme Canopy 1 Each 7F.1.a Mark Center And drill at 7/32” Mark Center #115-94 And drill at Switch Opening 17/64” Left Side Only...

  • Page 94: - Prepare Canopy

    XCell Fury Extreme Assembly Manual 7F.1 – Prepare Canopy 7F.1.b 7F.1.c 7F.1.d Drill 17/64” opening Marks are parallel to starting with smaller drills #115-94 crease in canopy 43mm Front Holes Drill 7/32” opening starting Cut Switch Opening Here with smaller drills 7F.1.e...

  • Page 95: Step #8 - Rotor Head

    XCell Fury Extreme Assembly Manual Step #8 – Rotor Head A) Head Block - Bag #8A #0509 Head Button 1 each #0855-A Head Block Assembled 1 each #0113 #0597-1 #0067 #0065 Double M3 x 3.2 M3 x 14 M3 x 12...

  • Page 96: - Head Block Assembly

    XCell Fury Extreme Assembly Manual 8A.1 - Head Block Assembly Parts Relationship 8A.1.a #0065 #0509 #0113 (2) #0597-1 (2) #0597-1 #0113 8A.1.b #0855-A #0509 #0067 #0067 (2) Building Notes – install the two #0113 control balls on the inside holes of the flybar crossbar.

  • Page 97: B) Blade Grips - Step #8B

    XCell Fury Extreme Assembly Manual B) Blade Grips - Step #8B #120-18 #0334-1 Blade Grip Bell Mixer 2 each 2 each #0159 #0597-1 M3 x 7 M3 x 3.2 Ball Bearing Brass Spacer 4 each 2 each #0093 #0017 M3 x 18...

  • Page 98: - Assemble Bell Mixer

    XCell Fury Extreme Assembly Manual 8B.1 – Assemble Bell Mixer Parts Relationship #0093 #0597-1 #0109 #0113 #0334 #0159 (2) #120-18 #0017 8B.1.a 8B.1.b 8B.1.c Do not overtighten! #0159 #0109 #0113 #0597-1 #0334 Page 98 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA...

  • Page 99: - Install Bell Mixers

    XCell Fury Extreme Assembly Manual 8B.1.d #0159 8B.2 – Install Bell Mixers 8B.2.a 8B.2.b 8B.2.c #0097 Outside hole #0017 Building Notes - Select the bell mixer with the inserted bolt and thread it into the rear hole on the blade grip tighten it until just before the assembly is fully tight.

  • Page 100: C) Head Axle Components - Bag #8C

    XCell Fury Extreme Assembly Manual C) Head Axle Components - Bag #8C #0840-6 #0331 M3 x 20 M13 x .5 Dowel Pin S/S Shim 1 each 2 each #0082-1 #0848-2 #0057 M5 Blade Bolt Retaining Clip M4 x 4 2 each...

  • Page 101: - Blade Arm Assembly

    XCell Fury Extreme Assembly Manual 8C.1 - Blade Arm Assembly Parts Relationship #120-5 #0848-2 #0844-12 #0324 #120-7 #0331 #0319 #0319 #0840-10 #0086-1 #0840-12 #0082-1 #0023 8C.1 – Assemble Blade Arms 8C.1.a 8C.1.b 8C.1.c #0840-10 #0319 #0319 Created: 11/14/2006 Page 101 of 138...
  • Page 102 XCell Fury Extreme Assembly Manual 8C.1.d 8C.1.e 8C.1.f Locate Small Diameter Race #0840-12 Locate Large Large Diameter #0840-12 Diameter Middle Race Bearing 8C.1.g 8C.1.h 8C.1.i #0840-12 Rounded Seat In Small Groove Edge Diameter #0848-2 #0844-12 #120-05 8C.1.j 8C.1.k 8C.1.l #0331...

  • Page 103: - Install Blade Arms

    XCell Fury Extreme Assembly Manual 8C.2 – Install Blade Arms 8C.2.a 8C.2.b #120-7 #0086-1 8C.2.c Created: 11/14/2006 Page 103 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 104: D) Flybar - Bag #8D

    XCell Fury Extreme Assembly Manual D) Flybar - Bag #8D #0133 #0049-3 Ball Link - Long M2 x 8 #0337 8 each Socket Bolt M2 x 30 Control Rod 6 each 2 each #0135 Ball Link Short 4 each #0555-1...

  • Page 105: - Assemble/Install Flybar Control System

    XCell Fury Extreme Assembly Manual 8D.1 – Assemble/Install Flybar Control System Rod Lengths Swashplate/Bell 61 mm #0133 (2) Flybar Control #0337 #0133 (2) Completed Control #0135 Rods Prints Actual Flybar/Bell Size #0313 8D.1.a 8D.1.b 8D.1.c #0555-1 #0053-5 10mm #126-88 #126-88...

  • Page 106: - Assemble/Install Flybar Bell Links

    XCell Fury Extreme Assembly Manual 8D.1.d 8D.1.e 8D.1.f Bevel #0063 Towards Inside #126-87 #126-87 #0049-3 8D.1.g 8D.2 – Assemble/Install Flybar Bell Links 8D.2.a 8D.2.b Building Notes – snap one end of the assembled link onto the double ball on the bell mixer and the other onto the double ball on the flybar carrier.

  • Page 107: - Install Flybar

    XCell Fury Extreme Assembly Manual 8D.3 – Install Flybar 8D.3.a 8D.3.b #0052 (2) 156 mm 8D.4 – Install Flybar Paddles 8D.4.a 8D.4.b 8D.4.c 30 mm #0871-7 8D.4.d Building Notes – make sure both flybar paddles are parallel to each other and the...

  • Page 108: - Install Rotor Head

    XCell Fury Extreme Assembly Manual 8D.5 – Install Rotor Head 8D.5.a 8D.5.b 8D.5.c Main shaft hole #0840-6 8D.5.d 8D.5.e 8D.5.f #0057 8D.5.g 8D.5.h Page 108 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 109: Xcell Fury Extreme Assembly Manual

    XCell Fury Extreme Assembly Manual Step #9 – Tail Rotor Assembly A) Tail Rotor Hub - Bag #9A #0873-1 #122-65 T/R Blade Grips Tail Rotor 2 each 1 each #0446-4 M4 x .003” S/S Shim #120-39 2 each M5 x 10...

  • Page 110: - Assemble Tail Rotor Hub

    XCell Fury Extreme Assembly Manual 9A.1 – Assemble Tail Rotor Hub Parts Relationship #122-65 Small Small Inside Inside Diameter Diameter #0446-4 #0457 #120-39 #120-39 #0457 #0446-4 #0021 #0021 Large Large #0097 Inside Inside #0097 Diameter Diameter #0019 #0019 #0873-1 #0873-1...
  • Page 111 XCell Fury Extreme Assembly Manual 9A.1.a 9A.1.b 9A.1.c #0873-1 Locate #0457 Large Bearing Diameter #120-39 Race Locate #0457 Small Large Diameter Diameter Race Race 9A.1.d 9A.1.e 9A.1.f #0446-4 #0457 Small #122-65 Diameter Race 9A.1.g 9A.1.h 9A.1.i Tighten until snug, then...

  • Page 112: - Install Tail Rotor Blades

    XCell Fury Extreme Assembly Manual 9A.2 – Install Tail Rotor Blades 9A.2.a 9A.2.b #0097 (2) #0019 (2) 9A.2.c Page 112 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 113: B) Tail Rotor Pitch Yoke - Bag #9B

    XCell Fury Extreme Assembly Manual B) Tail Rotor Pitch Yoke - Bag #9B #120-14 #0443 #0439 #0859-16 Pitch Yoke M6 Retaining Clip M6 x 10 Pitch Links 1 Each 2 Each Ball Bearing 2 Each 2 Each #0015 #0101 #0435...

  • Page 114: - Assemble Tr Pitch Yoke

    XCell Fury Extreme Assembly Manual 9B.1 – Assemble TR Pitch Yoke Parts Relationship #0439 #0101 #0435 #0437 #0439 #0443 (2) #120-14 #0015 #0015 #0859-16 #0859-16 #0049 (2) #0049 (2) Page 114 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 115 XCell Fury Extreme Assembly Manual 9B.1.a 9B.1.b 9B.1.c #0439 (2) #0435 #0437 #0101 9B.1.d 9B.1.e 9B.1.f #0443 #120-14 The yoke must remain free with If the parts don’t rotate freely, no bearing binding. The clip only use a razor knife to loosen the...

  • Page 116: C) Tail Rotor Transmission - Bag #9C

    XCell Fury Extreme Assembly Manual C) Tail Rotor Transmission - Bag #9C #0445 #0597-3 #0159 Bellcrank M3 Brass Spacer M3 x 7 1 Each 1 Each Ball Bearing 2 Each #0015 M2 Hex Nut #123-75 1 Each #0019-2 Assembled M3 Locknut...

  • Page 117: - Assemble T/R Bellcrank

    XCell Fury Extreme Assembly Manual 9C.1 – Assemble T/R BellCrank Parts Relationship #123-75 #0445 #0015 #0019-2 #0097 #0597-3 #0159 #0159 #0103 Created: 11/14/2006 Page 117 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 118: - Install T/R Bellcrank

    XCell Fury Extreme Assembly Manual 9C.1.a 9C.1.b 9C.1.c #0445 #0159 #0103 #0597-3 #0015 9C.1.d #0159 9C.2 – Install T/R BellCrank 9C.2.a 9C.2.b #0097 #0019-2 Page 118 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 119: - Install T/R Pitch Yoke

    XCell Fury Extreme Assembly Manual 9C.3 – Install T/R Pitch Yoke 9C.3.a 9C.3.b 9C.3.c #0056 (2) Created: 11/14/2006 Page 119 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 120: Step #10 - Locate Tail Boom Components

    XCell Fury Extreme Assembly Manual Step #10 – Locate Tail Boom Components A) Tail Boom Components - Bag #10 #120- 33” Aluminum Tail Boom 1 Each #0867-15 Torque Tube T/R Drive 1 Each #0872-5 Tail Boom Supports – 25” 1 Each...

  • Page 121: Step #11 - Tail Boom Assembly

    XCell Fury Extreme Assembly Manual Step #11 – Tail Boom Assembly A) Tail Boom Mounts - Bag #11A #0589-5 #122-27 Horizontal Rear Canopy Mount 1 Each 2 Each #0589-4 #0186 #0870-2 Vertical Fin Front Boom Horizontal 1 Each Mount Set...

  • Page 122: - Install T/R Transmission

    XCell Fury Extreme Assembly Manual 1A.1 – Install Tube Drive 11A.1.a Building Notes – before inserting the tube #120-33 drive into the tail boom as shown, spray inside the boom with a spray glass cleaner (like Windex®). This will make the tube...

  • Page 123: - Install Vertical Fin Mount/Fin

    XCell Fury Extreme Assembly Manual 11A.3 – Install Vertical Fin Mount/Fin Parts Relationship #0061 #0009 #0006 #0063 (2) #0032 (2) #0017 (2) #0063 (2) #123-86A #0063 (2) #0017 (2) #0063 (2) #123-86B #0589-4 #0017 (4) #0006 #0009 #0061 Created: 11/14/2006...
  • Page 124 XCell Fury Extreme Assembly Manual 11A.3.a 11A.3.b 11A.3.c #0017 (2) #123-86B #0006 #0009 #0009 #0006 #123-86A #0017 (6) #0061 #0061 11A.3.d 11A.3.e 11A.3.f #0063 #0063 11A.3.g 11A.3.h #0063 (4) Building Notes – do not overtighten any #0032 bolts in this assembly...

  • Page 125: - Install Horizontal Fin Mount/Fin

    XCell Fury Extreme Assembly Manual 11A.4 – Install Horizontal Fin Mount/Fin Parts Relationship #0589-5 #0019 #0870-2 #0009 #0027 (2) #0065 Created: 11/14/2006 Page 125 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 126 XCell Fury Extreme Assembly Manual 11A.4.a #0870-2 161 mm 11A.4.b 11A.4.c #0019 #0027 #0009 #0065 Front #0589-5 11A.4.d Page 126 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 127: - Install Tail Rotor

    XCell Fury Extreme Assembly Manual 11A.5 – Install Tail Rotor 11A.5.a 11A.5.b 11A.5.c Created: 11/14/2006 Page 127 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 128: - Install Front Tail Boom Mount

    XCell Fury Extreme Assembly Manual 11A.6 – Install Front Tail Boom Mount Parts Relationship #122-27 #0109 #0009 #0186 #0077 #0019 #0077 #0009 #0077 #0109 #122-27 #0009 #0077 Forward 11A.6.a 11A.6.b 11A.6.c #0109 #0077 #0009 #0077 #0009 #0009 #122-27 #0019 #122-27...

  • Page 129: B) Tail Rotor Pushrod Components - Bag #11B

    XCell Fury Extreme Assembly Manual B) Tail Rotor Pushrod Components - Bag #11B #0868-20 Brass Sleeve 1 Each #0868-5 Pushrod Guide 1 Each #0039 #0043 M2.5 x 12 M2 x 10 Phillips Slotted Bolt Bolt 1 Each 1 Each #0015...

  • Page 130: - Assemble/Install T/R Pushrod Guide

    XCell Fury Extreme Assembly Manual 11B.1 – Assemble/Install T/R Pushrod Guide 11B.1.a 11B.1.b #0020 #0043 #0039 Forward #0477 17-1/2” from front of tail boom #0015 To front of guide #0868-5 11B.2 – Install Tailboom 11B.1.a 11B.1.b 11B.1.c 90° Page 130 of 138...

  • Page 131: - Assemble T/R Pushrod

    XCell Fury Extreme Assembly Manual 11B.3 – Assemble T/R Pushrod 11B.3.a 11B.3.b 11B.3.c #0868-11 #0868-11 #133-1 #0868-20 #133-1 #121-5 #121-6 T/R Pushrod - Front T/R Pushrod - Rear 11B.3.d 11B.3.e 11B.3.f 14” from back of pushrod To center of sleeve...

  • Page 132: - Install T/R Pushrod

    XCell Fury Extreme Assembly Manual 11B.3.j Building Notes – test assemble all of these components before applying adhesive Remove Tape 11B.4 – Install T/R Pushrod 11B.4.a 11B.4.b 11B.4.c Page 132 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

  • Page 133: C) Tail Boom Support Components - Bag #11C

    XCell Fury Extreme Assembly Manual C) Tail Boom Support Components - Bag #11C #0079 M3 x 35 Socket Bolts 2 Each #0872-2 #0872-8 #3923-1 Support End Support End Round Spacer M3 Hole M4 Hole 2 Each #0004 2 Each 2 Each...

  • Page 134: - Install Tail Boom Supports

    XCell Fury Extreme Assembly Manual Parts Relationship 11C.1.a 11C.1.b #0048 #0872-8 (2) #0081 #0004 #0872-2 (2) #0872-8 (2) 11C.2 – Install Tail Boom Supports 11C.2.a 11C.2.b 11C.2.b #0872-2 #0079 (2) #0872-8 Wide #0003 (2) #0872-2 #0019 (2) Install Bolt This Way #3923-1 11C.2.d...

  • Page 135: - Install Rotor Blades

    XCell Fury Extreme Assembly Manual 11C.3 – Install Rotor Blades 11C.3.a 11C.3.b Building Notes – Tighten each blade #0082-1 equally. The blade should be tight enough to be hard to move in the blade holder. #0023 11C.4 – Install Canopy 11C.4.a...
  • Page 136 XCell Fury Extreme Assembly Manual Page 136 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 137 XCell Fury Extreme Assembly Manual Created: 11/14/2006 Page 137 of 138 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...
  • Page 138 XCell Fury Extreme Assembly Manual Page 138 of 138 Created: 11/14/2006 Copyright Miniature Aircraft USA This document may not be distributed without permission of Miniature Aircraft USA...

Table of Contents
