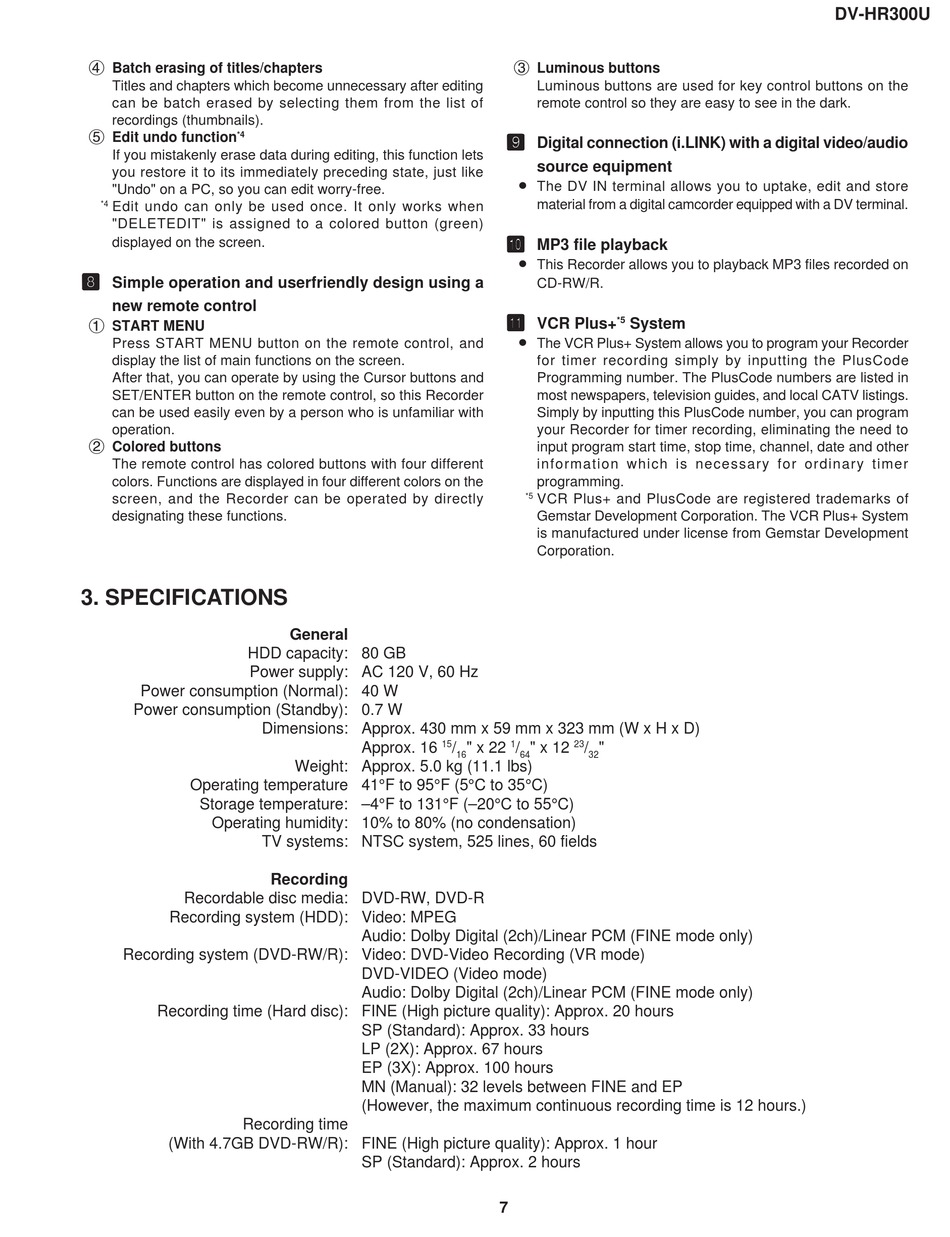

4 Batch erasing of titles/chapters
Titles and chapters which become unnecessary after editing
can be batch erased by selecting them from the list of
recordings (thumbnails).
5 Edit undo function
*4
If you mistakenly erase data during editing, this function lets
you restore it to its immediately preceding state, just like
"Undo" on a PC, so you can edit worry-free.
*4
Edit undo can only be used once. It only works when
"DELETEDIT" is assigned to a colored button (green)
displayed on the screen.
, ,
, , , Simple operation and userfriendly design using a
new remote control
1 START MENU
Press START MENU button on the remote control, and
display the list of main functions on the screen.
After that, you can operate by using the Cursor buttons and
SET/ENTER button on the remote control, so this Recorder
can be used easily even by a person who is unfamiliar with
operation.
2 Colored buttons
The remote control has colored buttons with four different
colors. Functions are displayed in four different colors on the
screen, and the Recorder can be operated by directly
designating these functions.

3. SPECIFICATIONS

HDD capacity: 80 GB
Power supply: AC 120 V, 60 Hz
Power consumption (Normal): 40 W
Power consumption (Standby): 0.7 W
Operating temperature 41°F to 95°F (5°C to 35°C)
Storage temperature: –4°F to 131°F (–20°C to 55°C)
Operating humidity: 10% to 80% (no condensation)
Recordable disc media: DVD-RW, DVD-R
Recording system (HDD): Video: MPEG
Recording system (DVD-RW/R): Video: DVD-Video Recording (VR mode)
Recording time (Hard disc): FINE (High picture quality): Approx. 20 hours
Recording time
(With 4.7GB DVD-RW/R): FINE (High picture quality): Approx. 1 hour
General
Dimensions: Approx. 430 mm x 59 mm x 323 mm (W x H x D)
Approx. 16
Weight: Approx. 5.0 kg (11.1 lbs)
TV systems: NTSC system, 525 lines, 60 fields
Recording
Audio: Dolby Digital (2ch)/Linear PCM (FINE mode only)
DVD-VIDEO (Video mode)
Audio: Dolby Digital (2ch)/Linear PCM (FINE mode only)
SP (Standard): Approx. 33 hours
LP (2X): Approx. 67 hours
EP (3X): Approx. 100 hours
MN (Manual): 32 levels between FINE and EP
(However, the maximum continuous recording time is 12 hours.)
SP (Standard): Approx. 2 hours
3 Luminous buttons
Luminous buttons are used for key control buttons on the
remote control so they are easy to see in the dark.
. Digital connection (i.LINK) with a digital video/audio . . . .
source equipment
» The DV IN terminal allows you to uptake, edit and store
material from a digital camcorder equipped with a DV terminal.
/ /
/ MP3 file playback / /
» This Recorder allows you to playback MP3 files recorded on
CD-RW/R.
Z Z VCR Plus+ Z Z Z
*5
» The VCR Plus+ System allows you to program your Recorder
for timer recording simply by inputting the PlusCode
Programming number. The PlusCode numbers are listed in
most newspapers, television guides, and local CATV listings.
Simply by inputting this PlusCode number, you can program
your Recorder for timer recording, eliminating the need to
input program start time, stop time, channel, date and other
information which is necessary for ordinary timer
programming.
*5 VCR Plus+ and PlusCode are registered trademarks of
Gemstar Development Corporation. The VCR Plus+ System
is manufactured under license from Gemstar Development
Corporation.
15 / " x 22 1 / " x 12 23 / "
16 64 32
7
System
DV-HR300U
