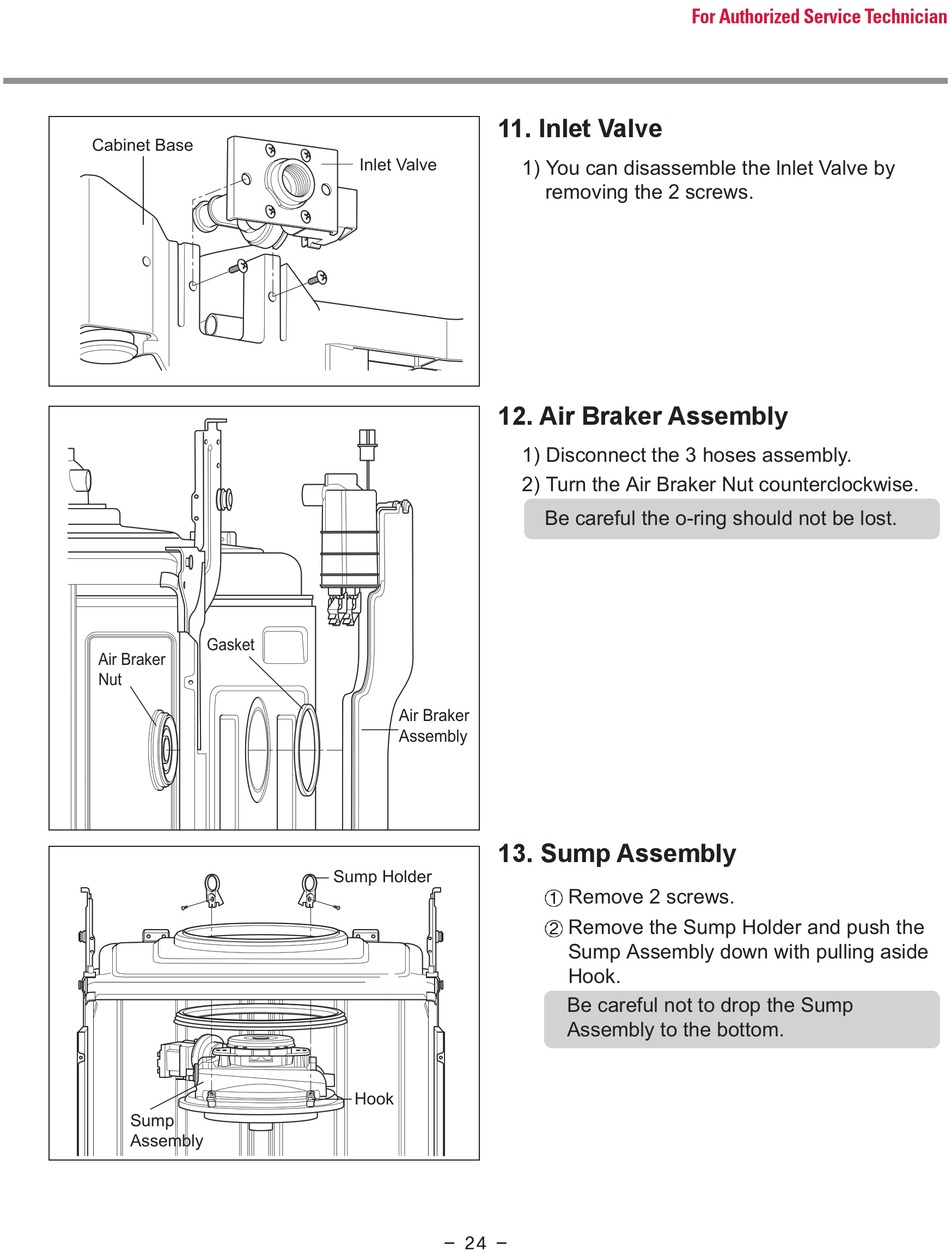

Inlet Valve; Air Braker Assembly; Sump Assembly - LG LDS5540ST Service Manual

Cabinet Base
Gasket
Air Braker
Nut
Sump
Assembly

11. Inlet Valve

12. Inlet Valve
Inlet Valve

12. Air Braker Assembly

13. Air Braker Assembly
Air Braker
Assembly

13. Sump Assembly

14. Sump Assembly
Sump Holder
Hook
- 19 - - 19 -
- 24 -
For Authorized Service Technician
1) You can disassemble the lnlet Valve by
removing the 2 screws.
1) Disconnect the 3 hoses assembly.
2) Turn the Air Braker Nut counterclockwise.
Be careful the o-ring should not be lost.
Remove 2 screws.
Remove the Sump Holder and push the
Sump Assembly down with pulling aside
Hook.
Be careful not to drop the Sump
Assembly to the bottom.
