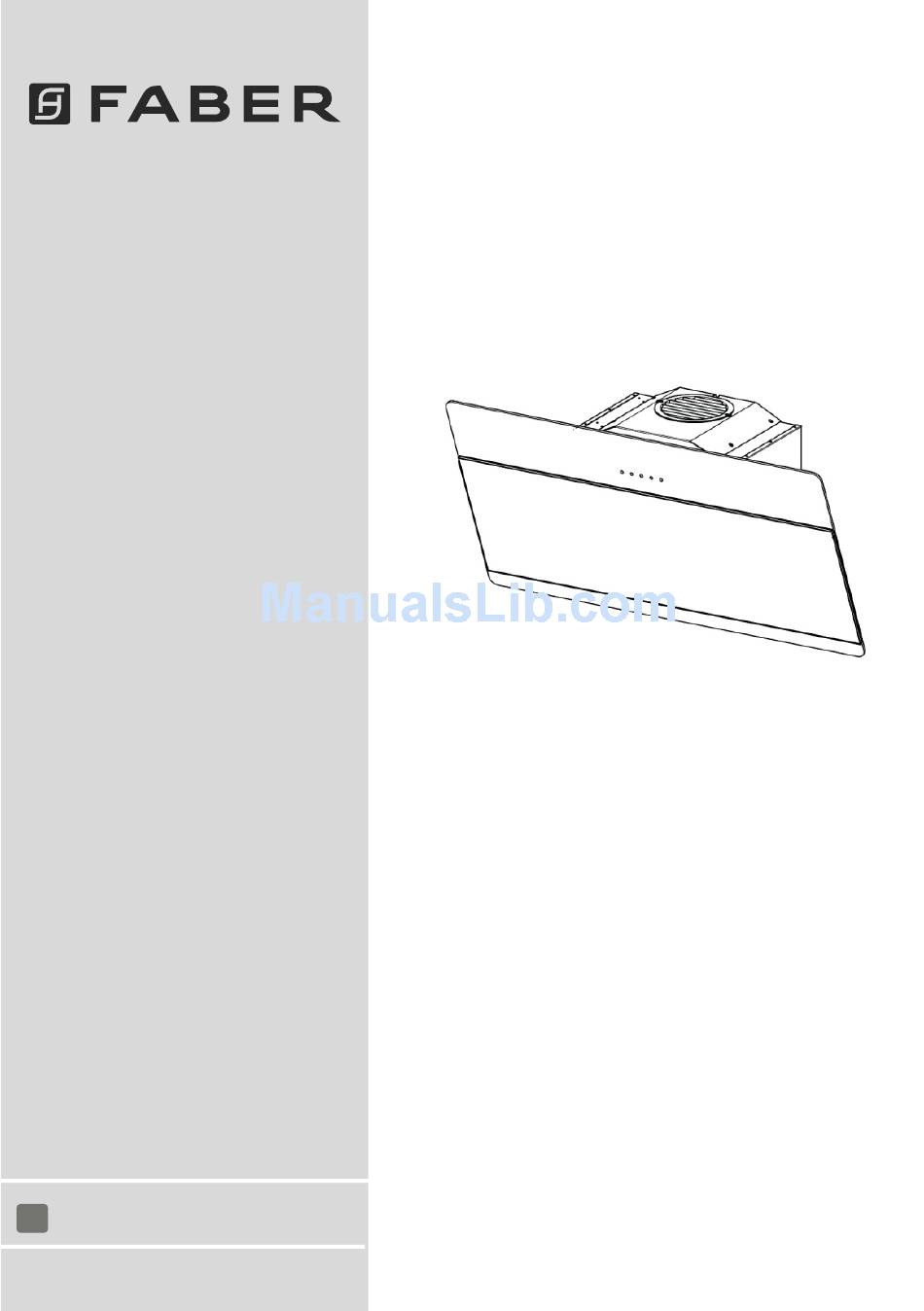

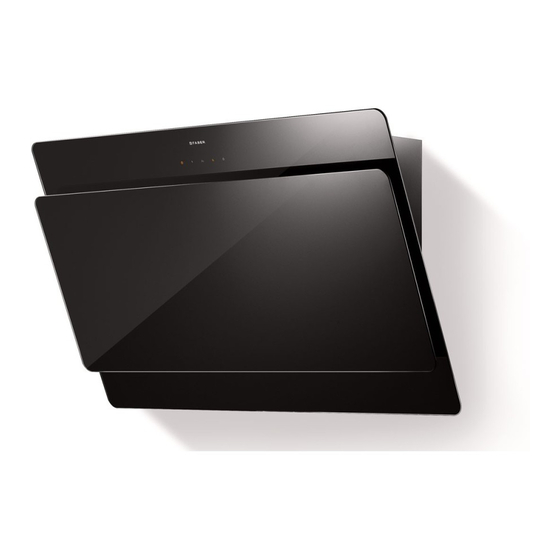

- Page 1 COCKTAIL INSTRUCTIONS MANUAL...
-
Page 2: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. - Page 3 CHARACTERISTICS Components 7.2.1 Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Upper Section (optional) Lower Section (optional) Directional Air Outlet grille Flange (optional) Angle iron (optional) Filter cover Ref. Q.ty Installation Components 7.2.1 Upper Chimney Section Fixing Brackets (optional) Wall Plugs ( 4 optional ) Wall Plugs SB 12/10 Screws 4,2 x 44,4 ( 4 optional )
- Page 4 Dimensions Min. Min. 500mm 500mm...
-
Page 5: Installation
INSTALLATION Wall drilling and bracket fixing 1÷2 7.2.1 164 164 As a first step, proceed with the following drawings: • a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;... - Page 6 Fitting the hood body • Open the doors/the door (See section Open Panels). • Remove the Metal grease filters using the handles provided. • Adjust the two screws Vr, in the brackets 11a, so that they are at the start of their travel. •...
-
Page 7: Recirculation Version Air Outlet
RECIRCULATION VERSION AIR OUTLET To install the Recirculation Version of the hood, the optional Ac- tivated charcoal cartridge kit must be purchased. • Screw the filter cover onto the air outlet, using four screws 12c (2.9 x 12.5). • Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12d (2,9 x 9,5) provided. - Page 8 Control panel Button Function Turns the Motor off. Turns the motor on at speed one Buttons T1+T2 are on. Turns the Motor on at speed two Buttons T1+T3 are on. Press and hold for 2 seconds to enable shut- The respective buttons T1+ down with a 30 minute delay (Mo- (T2 or T3 or T4) will flash.
-
Page 9: Maintenance
MAINTENANCE Opening Panel • Open the Panel by pulling it. • The panel can be locked in any position. • Clean the outside with a damp cloth and neutral detergent. • Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water;... -
Page 10: Replacing The Activated Charcoal Filter
Activated charcoal filter (Recirculation version) These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage. REPLACING THE ACTIVATED CHARCOAL FILTER • Open the comfort panels pulling them downwards. •... -
Page 11: Conseils Et Suggestions
CONSEILS ET SUGGESTIONS La présente notice d'emploi vaut pour plusieurs versions de l'appareil. Elle peut contenir des descrip- tions d'accessoires ne figurant pas dans votre appareil. INSTALLATION • Le fabricant décline toute responsabilité en cas de dommage dû à une installation non correcte ou non conforme aux règles de l’art. - Page 12 LEKS GROUP София: 02/963 33 20, 963 33 80, ж.к. Сухата Река бл. 49, Пловдив: тел.: 032/633 778, ул. Цар Асен 30, Варна: тел.: 052/504 634, бул. Вл. Варненчик 277, Бургас: тел.: 056/841 475, ул. Фердинандова 77 Русе: тел.: 082/872 717, ул. Борисова 84, Плевен: тел.: 064/833 172,ул. Данаил Попов 4, Велико...
