Itouchless AV002A Operating Manua

Intelligent cleaner with remote controller
Hide thumbs Also See for AV002A:

Advertisement

Quick Links

Download this manual See also: Operating Manual
INTELLIGENT CLEANER
AV002A
Auto Cleaner With Remote Controller
OPERATING MANUAL
Register Today to Protect Your Product
www.iTouchless.com/register

Advertisement

loading
Need help?

Need help?

Do you have a question about the AV002A and is the answer not in the manual?

Questions and answers

Related Manuals for Itouchless AV002A

Summary of Contents for Itouchless AV002A

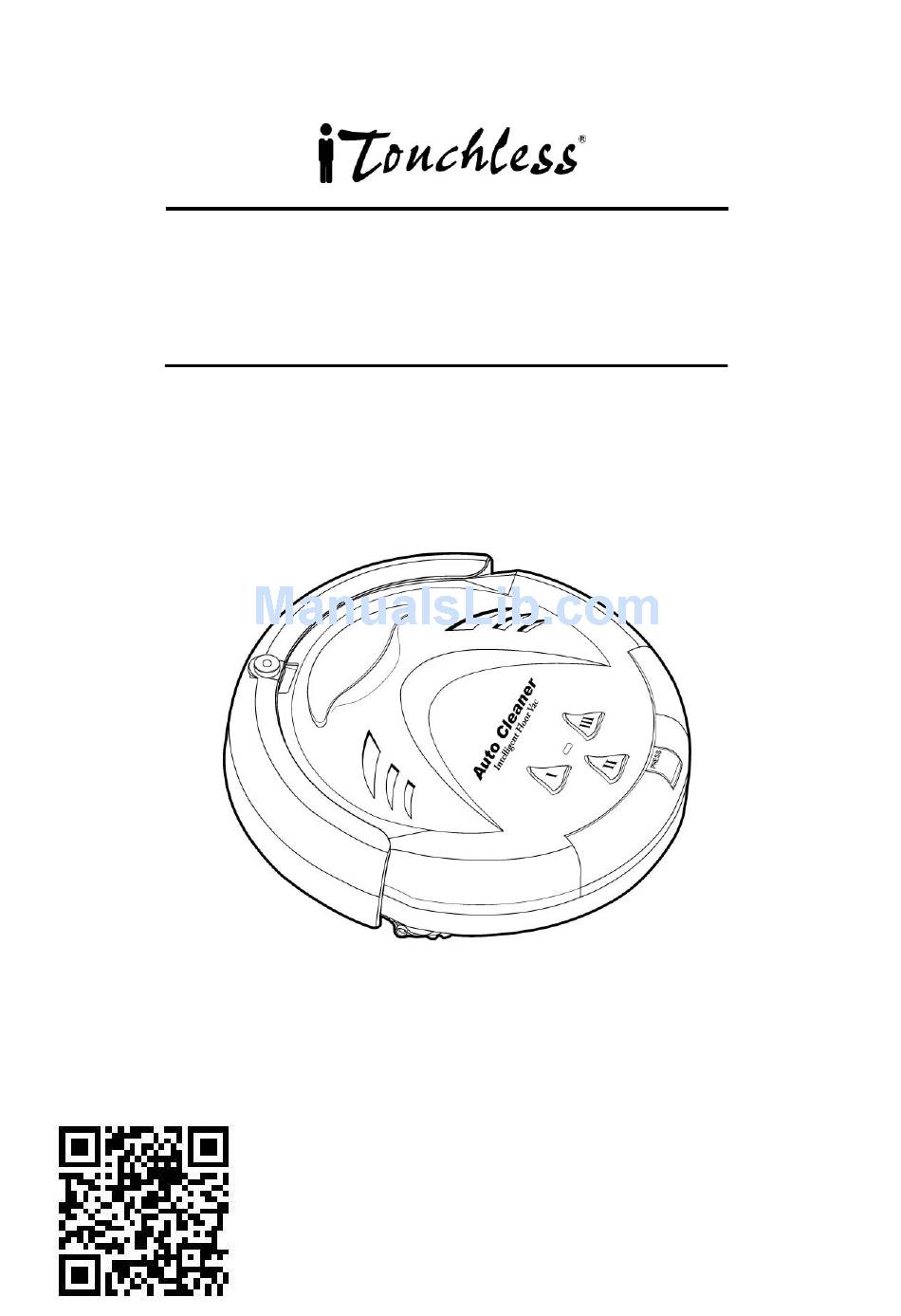

  • Page 1 INTELLIGENT CLEANER AV002A Auto Cleaner With Remote Controller OPERATING MANUAL Register Today to Protect Your Product www.iTouchless.com/register...

  • Page 2: Dear Customers

    OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER Dear customers, Thank you for using our Intelligent Vacuum Cleaner! The Intelligent Vacuum Cleaner is our creation and manufactured by using our advanced mechanical electronic technology. It can be used widely in your home, office and entertainment areas, and can also easily clean hard to access areas.
  • Page 3 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER 1. Battery Charger x 1 2. Rechargeable Battery Pack (Installed) x 1 3. Spoon x 1 4. Filter Mesh x 1 5. Remote Controller x 1 6. Side Brush x 1 7. Dust Brush x 1 8.
  • Page 4 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER ***When unit is in operation, the side with sensor should move forward. Start button Infrared sensor Battery life indicator Easy to grab handle Removable particle bin Surface Rechargeable Sensors battery Main brush Sensors Filter Side brush Vacuum inlet lid Power switch...
  • Page 5 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER 1. Please ensure the battery is fully charged before starting the Cleaner. 2. Please tidy unfixed articles on the floor before using the Cleaner, and keep it from the edge of the carpet and power lines, etc. 3.
  • Page 6 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER Battery charger socket Note on charging: a. Firstly confirm whether the using voltage of charge confirms to the local one for unconformity will result in damage to the unit. b. The power indicator on the panel will keep flashing during charging, and turn solid green from flashing green upon fully charging.
  • Page 7 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER Clean key Indicator Power key Max key Direction key The cleaner can be controlled by the infrared remote controller. As shown in the diagram above, there are three mode keys: Spot, Clean and Max, which will activate the respective three working modes.
  • Page 8 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER 1. Empty the bin a. Turn off the power switch. b. Press down the bin clip and pull out the bin as shown in the following illustrations below: c. Clear the bin. d. Press down the clip on the bin to insert the bin back to the unit. 2.
  • Page 9 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER Clean the main brushes of the Cleaner 1. Turn off the power switch and put the Cleaner on a flat surface with its bottom side up. 2. Use cross head screwdriver to remove the fixing screw on the right, and then take out the main brush, rubber brush and brush coupler together as shown in the following drawing.
  • Page 10 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER Clean the vacuum inlet lid 1. Turn off the power switch; turn the Cleaner upside down on a flat surface. 2. Take the Vacuum Inlet Lid out as per the illustration below. 3. Clean the Vacuum Inlet Lid and the fan-shaped mechanism to ensure good ventilation.
  • Page 11 OPERATING MANUAL INTELLIGENT CLEANER INTELLIGENT CLEANER Intelligent path judgment The cleaner is intelligently controlled so that it operates powerfully to avoid any obstruction and also from falling down from the edge of the table, staircase or pathway. Please remove small objects such as a vase, small paper boxes etc., which can be knocked down while the cleaner is in operation.

  • Page 12: Troubleshooting

    OPERATING MANUAL INTELLIGENT CLEANER Troubleshooting: 1. What should we do if the Cleaner is dropped down from the edge of stairs? Solution: Wipe away the dust for the probe at the bottom of the front plate with a dry cloth. 2.

  • Page 13: Caution Of Usage

    OPERATING MANUAL INTELLIGENT CLEANER Caution of usage Replacement of Battery: Model of battery: YX-Ni-CD-015144 Battery replacement of the Cleaner: 1. Press the Bucket on each edge of battery and then take out the battery vertically. (Refer to Figure 1 and Figure 2) 2.
  • Page 14 All warranty fees (including return postage) are subject to location, and fee references are as following: for Contiguous 48 U.S. States $9.95 and up, for Alaska and Hawaii $49.95 and up, for Canada $29.95 and up. iTouchless will not cover any warranty service postage fee.
