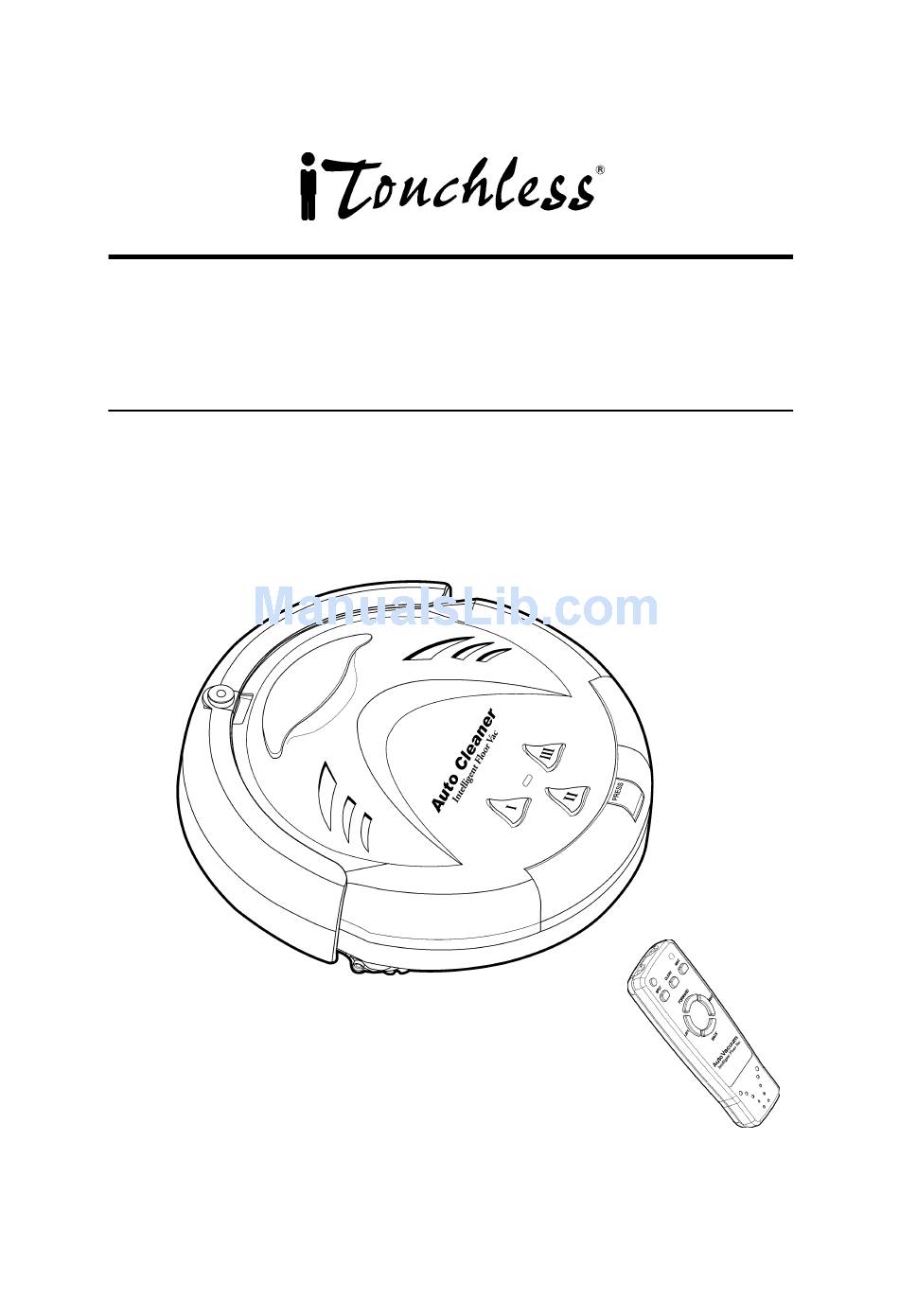

- Page 1 INTELLIGENT CLEANER AV002A Auto Cleaner With Remote Controller OPERATING MANUAL...
- Page 2 INTELLIGENT CLEANER OPERATING MANUAL Dear customers, Thank you for using our Intelligent Vacuum Cleaner! The Intelligent Cleaner is our creation and manufactured by using our own mechanical electronic technology. It can be used widely in your family, office and entertainment places.
- Page 3 INTELLIGENT CLEANER OPERATING MANUAL When you unpack the box, the Intelligent Cleaner will be included with the following attachments: 1. Battery Charger X 1 2. Rechargeable Battery Pack (Installed) X 1 3. Spoon X 1 4. Filter Mesh X 1 5.
- Page 4 INTELLIGENT CLEANER OPERATING MANUAL Intelligent Cleaner is installed with: ***When unit is operating, the side with sensor should move forward. Start button Infrared sensor Battery life indicator Easy to grab handle Removable particle bin Surface Sensors Rechargeable battery Main brush Sensors Filter Side brush...
- Page 5 INTELLIGENT CLEANER OPERATING MANUAL After the introduction of the Intelligent Cleaner, please note the following operating procedures: Please ensure the battery is fully charged before starting the Cleaner. Please tidy unfixed articles on the floor before using the Cleaner, and keep it from the edge of the carpet and power lines, etc.
- Page 6 INTELLIGENT CLEANER OPERATING MANUAL Outlet Battery charger socket Note on charging: Firstly confirm whether the using voltage of charge confirms to the local one for unconformity will result in damages of charge and unit. The power indicator on the panel will keep flashing during charging,and turn solid green from flashing green upon fully charging.
- Page 7 INTELLIGENT CLEANER OPERATING MANUAL Use the infrared remote controller by refer- ring to the following drawing: Clean key Indicator Power key Spot key Max key Direction key The cleaner can be controlled to clean by the infrared remote controller. As shown in the above drawing,the three keys: Spot, Clean and Max work respectively for the three work modes.
- Page 8 INTELLIGENT CLEANER OPERATING MANUAL Empty the removable particle bin by following two pro- cedures below: 1. Empty the bin a. Turn off the power switch. b. Press down the bin clip and pull out the bin as shown in the following illustrations below: c.
- Page 9 INTELLIGENT CLEANER OPERATING MANUAL Clean the main brushes of the Cleaner Turn off the power switch and put the Cleaner on a flat surface with its bottom side up. Use cross head screwdriver to remove the fixing screw on the right, and then take out the main brush, rubber brush and brush coupler together as shown in the following drawing.
- Page 10 INTELLIGENT CLEANER OPERATING MANUAL Clean the vacuum inlet lid 1. Turn off the power switch; turn the Cleaner upside down on a flat surface. 2. Take the Vacuum Inlet Lid out as per following drawing: 3. Clean the Vacuum Inlet Lid and the fan-shaped mechanism to ensure good ventilation.
- Page 11 INTELLIGENT CLEANER OPERATING MANUAL Intelligent path judgment The cleaner is intelligently controlled so that it operates powerfully to avoid any obstruction and also from falling down from the edge of the table, staircase or pathway. Please remove small objects such as a vase, small paper box etc, Caution which can be knocked down by cleaning.
-
Page 12: Troubleshooting
Troubleshooting: What should we do if the Cleaner is dropped down from the edge of stairs? Solution: Wipe away the dust for the probe at the bottom of the front plate with a dry cloth. The cleaner and light turn on, however, no movement - Make sure no obstacles in pathway - Check if carpet is under 1 inch - Clean off debris from brushes...
