C O N N E C T I O N G U I D E
AMPL IFICATION

Advertisement

loading
Need help?

Need help?

Do you have a question about the NAC 552 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NAIM NAC 552

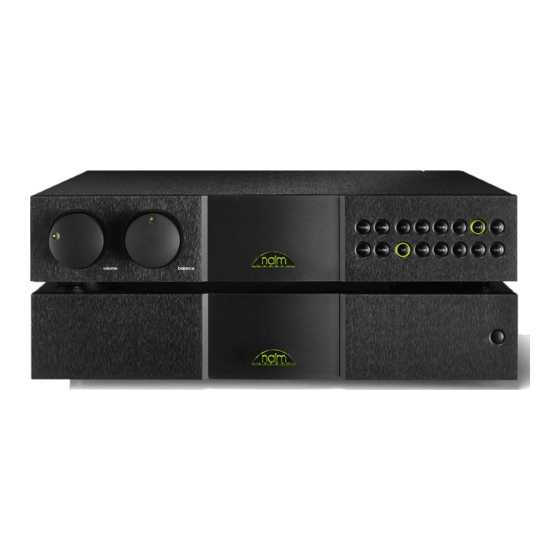

Summary of Contents for NAIM NAC 552

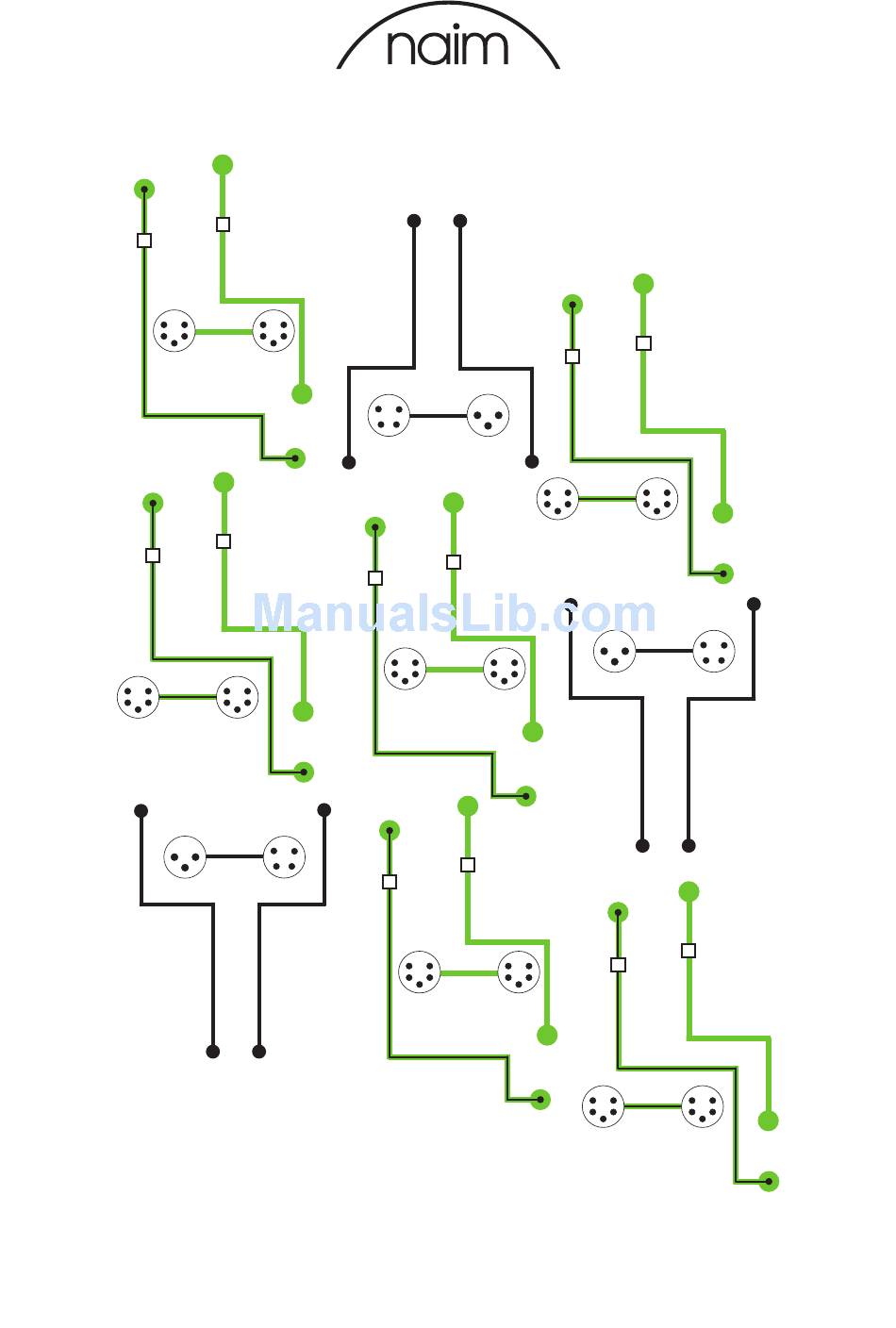

  • Page 1 C O N N E C T I O N G U I D E AMPL IFICATION...
  • Page 2 Many other connection schemes are la totalità degli schemi possibili. Ve ne sono molti altri. Il vostro possible and your local Naim retailer will be able to advise on the rivenditore Naim sarà in grado di consigliarvi le opzioni più...

  • Page 3: Table Of Contents

    NAC 552 + NAC 552PS + NAP 250 NAC 552 + NAC 552PS + NAP 500 + NAP 500PS NAC 552 + NAC 552PS + SUPERLINE + SNAXO 362 + 2 x SUPERCAP + 3 x NAP 300 NAC 252...
  • Page 4 Co n n e c t io n I co n s English • D eut sch • Fr ançai s • Ned er lan d s • Esp añ o l It a lian o • Po lsk i •...
  • Page 5 Co n n e c t io n I co n s Optional power supply • Netzteil (optional) • Connexion d’alimentation en option • Optionele aansluiting voor voedingseenheid Conexión de fuente de alimentación opcional • Connessione alimentatore opzionale • Połączenie opcjonalnego zasilacza Дополнительный...
  • Page 6 N AC 55 2 NAC 552 NAC 5 52 + NAC 552 PS + NAP 250 NAC 552 Burndy...
  • Page 7 N AC 5 5 2 NAC 55 2 + NAC 552 PS + NAP 500 + NAP 500 PS NAC 552 Burndy NAP 500 NAP 500 Burndy Burndy...
  • Page 8 N AC 5 5 2 NAC 552 + NAC 552PS + SUPERLINE + SNAXO 362 + 2 x SUPERCAP + 3 x NAP 300 NAC 552 Burndy SNAXO/SuperLine Burndy...
  • Page 9 N AC 5 5 2 SNAXO/SuperLine Burndy...
  • Page 10 N AC 252 NAC 25 2 NAC 2 5 2 + SU PERCA P + SNAXO 242 + HI -CAP + 2 x NAP 250 SuperCap Burndy...
  • Page 11 N AC 252...
  • Page 12 N AC 25 2 NAC 25 2 + SU PE RCAP + NAP 300 SuperCap Burndy NAP 300 NAP 300 Burndy Burndy...
  • Page 13 N AC 25 2 NAC 252 + SU PE RLINE + SUPE RCAP + NAP 250 SuperCap Burndy...
  • Page 14 NAC 28 2 NAC 282 NAC 282 + NAPSC + HI-CAP + NAP 250...

  • Page 15: Nac 282 + Napsc + Supercap + Nap

    N AC 28 2 NAC 282 + NAPSC + SUPERCAP + NAP 250...

  • Page 16: Nac 282 + Napsc + 2 X Hi-Cap + Nap

    N AC 28 2 NAC 282 + NAPSC + 2 x HI-CAP + NAP 2 50...

  • Page 17: Nac 282 + Napsc + Dac + Nap

    N AC 28 2 NAC 282 + NAPSC + DAC + NAP 200...

  • Page 18: Nac 202 + Napsc + Hi-Cap + Nap

    NAC 20 2 NAC 202 NAC 202 + NAPSC + HI-CAP + NAP 200...

  • Page 19: Nac 202 + Napsc + Nap

    N AC 20 2 NAC 202 + NAPSC + NAP 2 00 NAC 2 02 + NAP 200...
  • Page 20 N AC 15 2 X S NAC 1 52 XS NAC 1 52 XS + NAP 1 55 XS...
  • Page 21 N AC 15 2 X S NAC 1 5 2 XS + HI-CAP + FL ATCAP + NAP 1 5 5XS...
  • Page 22 N AC 1 5 2 X S NAC 1 52 XS + F L ATCAP (A & B) + NAP 1 5 5XS...
  • Page 23 N AC 15 2 XS NAC 1 52 XS + STAGE LINE + F L ATCAP + NAP 1 5 5XS...
  • Page 24 N AC - N 1 7 2 XS NAC-N 1 7 2 XS NAC-N 1 7 2 XS + NAP 1 00...
  • Page 25 DAC -V 1 DAC-V 1 DAC-V 1 + NAP 1 00...

  • Page 26: Supernait

    SU P E RN AI T 2 SUPERNAIT 2 SUPERNAIT 2 + NAP 2 00...
  • Page 27 SU PE R N A I T 2 SUPERNAIT 2 + STAGE LINE + NDX + HI -CAP...
  • Page 28 SU P E RN AI T 2 SUPERNAIT 2 + HI- CAP + NAP 200...
  • Page 29 NA I T X S 2 NAIT XS 2 NAIT XS 2 + FL ATCAP + STAGELINE...
  • Page 30 N A IT X S 2 NAI T XS 2 + FL ATCAP + NAP 1 55XS...
  • Page 31 N A I T 5 s i NAIT 5s i...
  • Page 32 Naim Audio Ltd, Southampton Road, Salisbury, England SP1 2LN Tel: +44 (0) 1722 426600 Fax: +44 (0)871 230 1012 W: www.naimaudio.com Part No. 12-001-0267 Iss. 1J...
