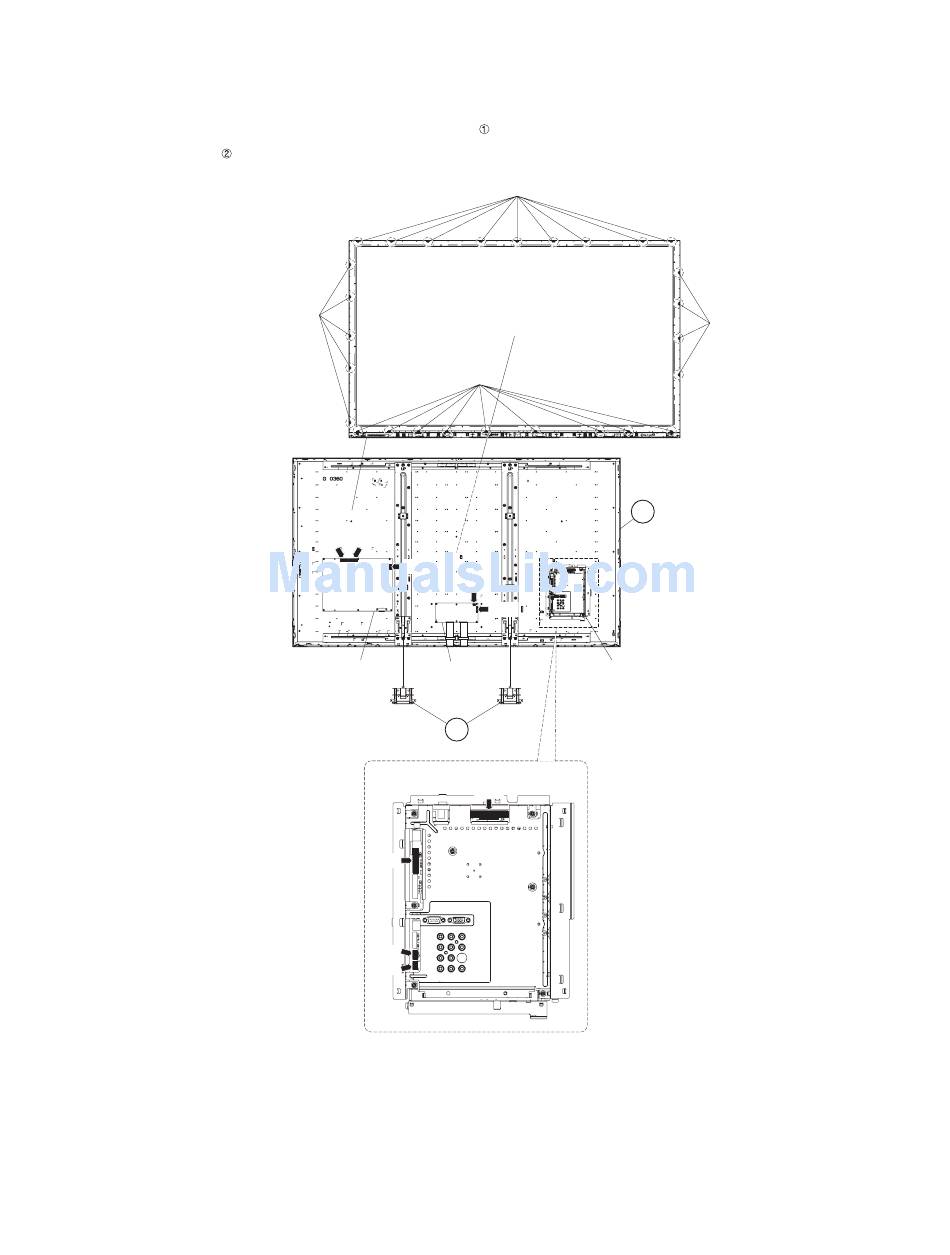

3. Removing of Connectors, 80" LCD Panel Module Unit Ass'y.
1. Disconnect the following connectors from the MAIN Unit. (LV, PD, Cl, UB)
2. Disconnect the following connectors from the POWER/DRIVE Unit. (L1, L2, PD)
3. Disconnect the following connectors from the LCD Control Unit. (PL, LW)
4. Remove the 27 Hooks and detach the 80 LCD Panel Module Unit Ass'y .
5. Detach the 2 Bottom cover
.
Hock
[L1] [L2]
[PD]
POWER/DRIVE Unit
Bottom cover
[LV]
[CI]
[UB]
Hock
Hock
[PL]
[LW]
LCD
MAIN Unit
Control
Unit
2
MAIN Unit
[PD]
4 – 6
LC-80LE632U
Hock
1 80" LCD Panel
Module
Unit Ass'y
