Page 1: Instruction Manual

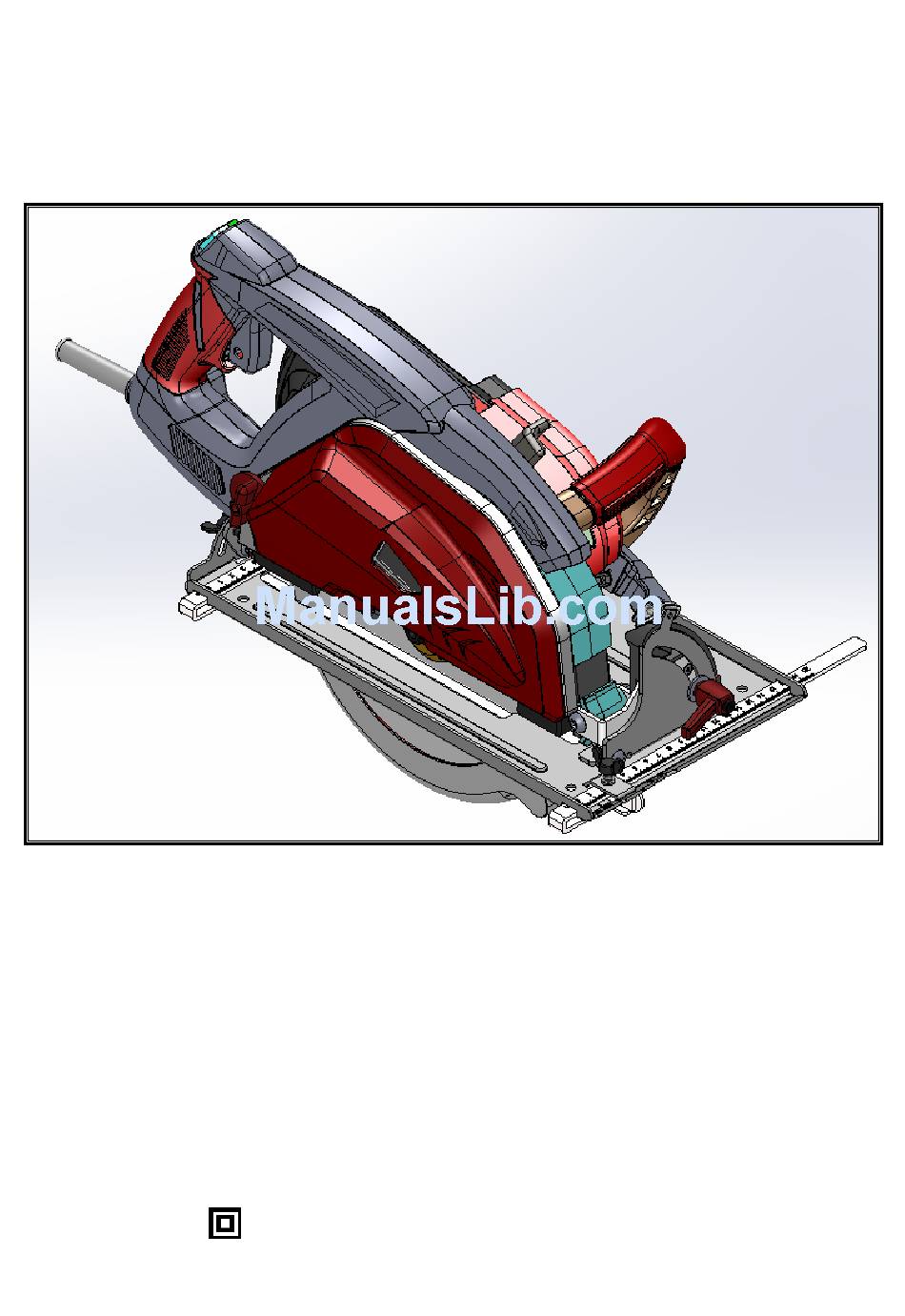

9" (230mm) SLUGGER METAL CUTTING SAW INSTRUCTION MANUAL Double Insulation Slugger order number: 69908120001 Original instruction ... -
Page 2: Table Of Contents
TABLE OF CONTENTS Additional safety rules for metal cutting saw Assembly and adjustment instruction Installing a new saw blade Laser Cutting depth adjustment Operation Guide ruler Chip removal Replacing carbon brushes Maintenance and servicing Trouble shooting Specifications Parts diagram Replacement parts Manufacturer Intended use The metal cutting saw is powerful enough to cut steel sheet metal as thick as ¼”... -
Page 3: Assembly And Adjustment Instruction
9. To avoid possible hearing damage, wear ear plugs when using power tool. Motor Specifications and Electrical Requirements Power Supply and Motor Specifications The AC motor used in this saw is a universal. Nonreversible type having the following specifications: 60250 Model No. Maximum Developed H.P... -
Page 4: Installing A New Saw Blade
Installing a New Saw Blade WARNING: To prevent an accident or personal injury, always turn off the trigger switch and disconnect the power plug from the receptacle before removing or installing a blade. Only use blades designed for metal cutting saws. The use of any abrasive wheels, alternative purpose wheels, or different size blades could void warranty. - Page 5 5. Insert new blade, flange and arbor screw in proper order. Use the open end wrench to hold the flange and use the HEX wrench to tighten the arbor screw in clockwise direction. Refer to Fig.5 Note: Put the blade on in right direction. The arrow on blade must be same direction as arbor turn.
-
Page 6: Laser
Usag ge for b bevel Relea ase the loc ck lever "A ", and the w wing nut "B B", then ch hange the b bevel plate e angle from m 0∘to 45 5∘Fix the lo ock lever "A A" and win ng nut "B". - Page 7 ALIGNING THE LASER GUIDE LINE DANGER: Laser radiation. Avoid direct eye contact with light source WARNING: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposures. When you adjust the laser please don’t tune on switch.
-
Page 8: Cutting Depth Adjustment
CUTTING DEPTH ADJUSTMENT 1. Pull up & loosen the Lock Lever (A) first Fig.15 2. Lift the back of the saw away from the base plate until the approximate depth is achieved. 3. Ensure the Lock Lever (A) Fig.16 is tightened securely after the depth adjustment is made. To adjust the lock made. To adjust the lock and unlock positions (if necessary) simply pull the lever towards the hand-grip of the saw, rotate it slightly as required. -
Page 9: Guide Ruler
DIRECTION OF SAWING Align saw blade to the right of the operator. A OVERLOAD PROTECTION Under extreme overload, the current consumption may considerably exceed the permissible nominal value. In this case, overload protection prevents the motor from burning out. The saw has a reset Fig.19 ... -
Page 10: Chip Removal
SIGHTING NOTCH FOR FREE-HAND CUTTING Sighting notches (A) near the front of the baseplate provides guidance. When performing free-hand cutting (at 90 degrees) the cutting line for the saw blade can be observed through a u-shaped sighted notch at the front of the base plate. Align the cutting line on the workpiece with the v- shaped sighting notch at the front of the base plate when cutting at 45 degree angle. -
Page 11: Replacing Carbon Brushes
LUBRICATION See Fig. 24 This tool has been properly lubricated and is ready to use. The recommended grease: Mobil HD 85W/140 Oil. Add the oil Check oil level of the gear case once a year. Follow the procedure below to check and fill the oil. Unplug the the tool. -
Page 12: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION • Saw won’t start • Loss of power supply • Check power source • Brushes worn or sticking • Check brushes • Switch is faulty • Contact repair center • Possible short circuit • Contact repair center •... -
Page 13: Parts Diagram
PARTS S DIAG GRAM M 13 ... -
Page 14: Replacement Parts
REPLACEMENT PARTS REF NO. SLUGGER ORDER NUMBER DESCRIPTION 1 69908120002 SET FLUTE COVER 2 69908120003 PIVOT 3 69908120004 GLASS 4 69908120005 DUST COVER SET 5 69908120006 DUST COVER HOOK PLATE 6 69908120007 LOCK WASHER 7 69908120008 BOLT, M4X0.7, 10MM, PAN HEAD, PHILLIPS 8 69908120009 FLAT HD SCREW 9 69908120010 DUST COVER PLATE 10 69908120009 FLAT HD SCREW 11 69908120012 ARBOR BOLT(BLADE BOLT) ... - Page 15 39 69908120041 LENS HOLDING PLATE 40 69908120004 GLASS 41 69908120038 CROSS RECESSED TRUSS HEAD SCREW 42 69908120036 FLAT WASHER 43 69908120045 CUSHION 44 69908120046 WIRE CAP 45 69908120047 BLADE GUARD PUSH LEVER 46 69908120048 AIR BAFFLE COVER 46.1 69908120049 WARNING LABEL 46.2 69908120050 WARNING LABEL 47 69908120038 CROSS RECESSED TRUSS HEAD SCREW 48 69908120052 GUARD PIVOT SCREW 49 69908120053 GRASP HANDLE 50 69908120054 ...
- Page 16 89 69908120093 BRUSH CAP 90 69908120094 REINFORCE PLATE 91 69908120095 SCREW PAN HEAD M5+WASHER 92 69908120096 MOTOR HOUSING 93 69908120097 GUIDE RULER 94 69908120098 RIVET 95 69908120099 WING SCREW 96 69908120100 WASHER 97 69908120101 BEVEL PLATE 98 69908120102 CUTTING DEPTH SCALE PLATE 99 69908120103 WASHER FENCE CIRCLE 100 69908120104 HEX BAR 101 69908120105 E‐RING (ETW) 102 69908120106 ...
- Page 17 129 69908120134 LOCK BUTTON 130 69908120135 SPRING 131 69908120136 LED BUTTON 132 69908120137 LASER BUTTON 133 69908130138 BUTTON SWIRCH ASS’Y 134 69908120025 SCREW (SELF‐TAPPING, CLAMP) 136 69908130141 SPRING 137 69908120142 LASER ASS’Y 138 69908120143 LASER FIXED RING 139 69908120144 O‐TYPE RING 140 69908120145 TERMINAL BLOCK 141 69908120146 AC TO DC TRANSFORMER MODULES 144 69908120148 TRANSFORMER 145 ...
-
Page 18: Manufacturer
Pleas e e read the instructio n n s carefull y y before st a a rting the m m achine. Wear e e ar p r otec t t ion! A lway s s wear saf e e ty glasse s s when us ing the m a a chine.
