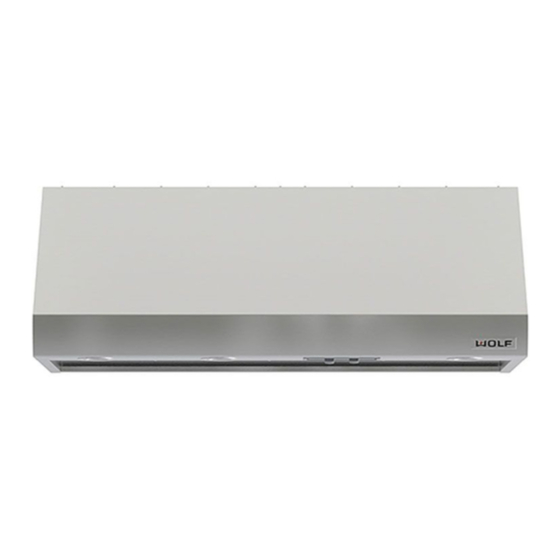

Wolf L282212I Installation Instructions Manual
Pro series
Hide thumbs
Also See for L282212I:
- Planning information (9 pages) ,
- Installation instructions manual (16 pages)
Related Manuals for Wolf L282212I
Summary of Contents for Wolf L282212I
- Page 2 Before you begin installation, read information is important for the safe The correct voltage, frequency and these instructions completely and and efficient installation of the Wolf amperage must be supplied to the carefully. Pro Series Ventilation Hood Liner. appliance from a dedicated, ground- •...
- Page 3 " (721 mm) (572 mm) • Stainless steel baffle filters • Transition included Pro-Series Hood Liner Overall Dimensions • Internal or remote blower option (Model L282212I) • Heat Sentry feature • Top discharge 12" (305 mm) WIDTH • Damper included 4"...
- Page 4 COOKING SURFACE backflow of cold air into the room. TO BOTTOM OF HOOD LINER 4) Wolf recommends the hood liner be installed 30" to 36" above the cooking surface. 5) Local building codes may require the use of make-up air. Consult your local HVAC professional for specific requirements in your area.
- Page 5 Installation Cross-Section a 4" lower reveal. Be sure to include The bottom depth and the bottom this dimension in your decorative width of the Wolf liner must meet hood selection. and fit with the bottom interior of the decorative hood.
-
Page 6: Installation Dimensions
Shipping Weights for Hood Liners Installation Dimensions Model Number Shipping Weight Refer to the following illustration HEIGHT OF TRANSITION and chart for critical dimensions L282212I 57 lbs. needed for the proper installation TO CENTER L342212 46 lbs. OF TRANSITION of the ventilation hood liner. - Page 7 " 1 /4 " 3 /16 " smaller than 8" round. IMPORTANT NOTE: Wolf recom- mends that the hood liner be 2" DIMENSION IS installed a minimum of 30" and a Mounting for Model L282212 maximum of 36" above the cooking surface.
- Page 8 TRANSITION nal blower on page 11. 5) If installing a remote blower, drill IMPORTANT NOTE: Wolf recom- 7/8" hole through the wood framing mends installing the internal blower for conduit wires. See Connect to the rough-in plate assembly prior Remote Blower on page 12 for over- to installing liner to the wall framing.
- Page 9 Step 4: Install the Rough-In Plate Step 5: Install the Hood Liner SOFFIT 1) Use rough-in plate assembly to 1) Align both ends of the liner determine stud locations. assembly with the ends of the rough- ROUGH-IN in plate. PLATE 2) Install #10 x 2"...
- Page 10 E R I E S E N T I L A T I O N O O D I N E R S I N S T A L L A T I O N Step 6: Install Wiring 1) Run 120 VAC, 15 amp (minimum) Wiring Diagram circuit electrical power cable from the Refer to the wiring diagram packaged...
- Page 11 "OFF" position. Use wire con- into receptacle(s) located near the IMPORTANT NOTE: Wolf recom- nectors or wire nuts approved by UL center of the hood liner shell. Use mends installing the internal blower or C/UL.
- Page 12 E N T I L A T O R N S T A L L A T I O N R E M O T E B L O W E R IMPORTANT NOTE: Before turning STEP 2: Connect Remote Blower Feed 6”...
- Page 13 (except Model • 60BAK/DF – 60"W x 38"H L282212I). backsplash for 60" wall hoods. For blower specifications, refer to the • 66BAK/DF – 66"W x 38"H Ventilation Recommendations backsplash for 66" wall hoods. charts found in the Wolf Design Guide.
- Page 14 If the ventilation hood liner still does not work, contact an authorized Wolf Factory Authorized Service Center. Do not attempt to repair the ventilation hood liner yourself. Wolf is not responsible for service required to correct a faulty installation. •...
- Page 15 The information and images are the copyright property of Wolf Appliance Company, LLC, an affiliate of Sub-Zero Freezer Company, Inc. Neither this book nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Wolf Appliance Company, LLC, an affiliate of Sub-Zero Freezer Company, Inc.
- Page 16 , LLC PPLIANCE OMPANY P. O. Box 44848 Madison, WI 53744 800-332-9513 • • www.wolfappliance.com 805049 REV-C 9/03...
