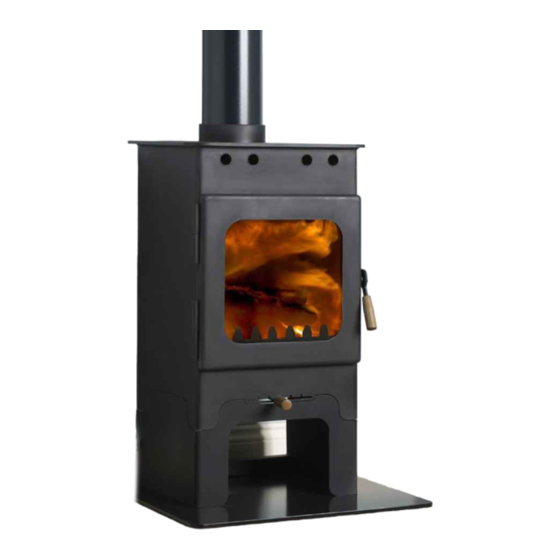

Installation Instructions
& User Manual
for the super-efficient
Wood Burning Stoves
Cross Section – Artist Impression
Applicable Appliances
Springdale (9103), Debdale (9104), Hollywell (9105),
Brampton (9108) and Wakerley (9112)
Document reference BUR/02/16
Revision date: FEBRUARY 2016
THESE INSTRUCTIONS MUST BE LEFT WITH THE USER
FOR FUTURE REFERENCE
Page 1 of 20
Advertisement
Table of Contents
Related Manuals for Burley Fireball Springdale 9103
Summary of Contents for Burley Fireball Springdale 9103
- Page 1 Installation Instructions & User Manual for the super-efficient Wood Burning Stoves Cross Section – Artist Impression Applicable Appliances Springdale (9103), Debdale (9104), Hollywell (9105), Brampton (9108) and Wakerley (9112) Document reference BUR/02/16 Revision date: FEBRUARY 2016 THESE INSTRUCTIONS MUST BE LEFT WITH THE USER FOR FUTURE REFERENCE Page 1 of 20...
-
Page 2: Table Of Contents
Table of Contents Approvals ............................4 TECHNICAL DATA ......................... 5 Stove Dimensions ..........................6 Room Sealing Options ........................6 Installation Instructions ........................7 The Clean Air Act 1993 and Smoke Control Areas ................7 Chimneys, Flues, Hearths and Surrounds ..................8 Air Supply and Room Sealing Kit ..................... - Page 3 Thank You Thank you for purchasing a Burley Fireball Wood Burning Stove; we hope you will be delighted with the super-efficient performance. Included with your stove is the Burley ‘Thank You Kit’*, which typically contains:- · A Spanner to attach and adjust the tension of the air control lever ·...
-
Page 4: Approvals
Features… Cross Section – Artist Impression You now own the world’s most efficient stove! Approvals All our wood stoves are approved to EN13240:2001 and EN13240 A2:2004. Page 4 of 20... -
Page 5: Technical Data
TECHNICAL DATA Springdale Debdale Hollywell Brampton Wakerley All built to EN13240 9103 9104 9105 9108 9112 Efficiency (Net) 88.9% 89.8% 89.1% 85.5% 84.1% CO concentration 0.1% 0.1% 0.1% 0.1% 0.1% @ 13% Oxygen Dry logs <20% Dry logs <20% Dry logs <20% Dry logs<20% H₂O Dry logs<20% H₂O H₂O... -
Page 6: Stove Dimensions
Stove Dimensions Room Sealing Options 40mm D 50mm D Page 6 of 20... -
Page 7: Installation Instructions
When installing these appliances, all local regulations, including those referring to national and European Standards need to be complied with. This manual covers the appliances: Burley Models: 9103, 9104, 9105, 9108 and 9112 The nominal space heating output is: ‘Springdale’ 9103: 3Kw ‘Debdale’... -
Page 8: Chimneys, Flues, Hearths And Surrounds
Aeration hole must be left open for use Aeration hole can be in Smoke Control closed, if not used in areas Smoke Control Areas. Chimneys, Flues, Hearths and Surrounds Chimneys The 9103 and 9104 require a minimum chimney flue of 5” (125mm), 9105, 9108 and 9112 models require a minimum chimney flue of 6”... -
Page 9: Air Supply And Room Sealing Kit
Stoves are very heavy and most materials used for hearths crack very easily. It is impossible for Burley to inspect each hearth or comment on every installation, so the onus is on the installer to ensure the construction of the hearth is suitable for the application. -
Page 10: Stove Assembly
WARNING The Burley Fireball series of stoves are primarily for burning wood (this includes logs and sawdust briquettes). In smoke control areas only wood fuels should be used. Before purchasing a stove we would strongly advise you seek the advice of a HETAS installer to ensure suitability of the product to your home. -
Page 11: Door Handle Assembly
Door Handle Assembly The Door handle is pre-assembled and fitted to your stove. The information below is for reference only. Fit the door handle and parts as per the assembly diagram below. (Please note it is very important to fit the parts in the correct sequence). Tighten up the socket screw using the Allen key provided in the ‘thank you’... -
Page 12: Air Lever Assembly
Air Lever Assembly Tilt the stove back on the rear legs and support it so you can access the underneath of the stove (A). M10 Washer above lever arm Put the M10 washer over the threaded stud, push the air lever through the slot in the front of the stove, locate the end of the lever over the air plate bar and threaded stud, ensuring that the M10 washer sits over the unthreaded shoulder of the stud. -
Page 13: Optional Convection Tube Cover Plate
Optional Convection Tube Cover Plate The cover plate is an option for those people who do not like the appearance of the convection tubes. (This is not supplied with the Springdale 3kw stove) Fitting the cover plate is easy: Offer the cover plate up to the stove and locate the clips on the rear into the tubes and push it on. -
Page 14: Assembly And Installation Of The Stove Fire Bricks And Baffle
Assembly and Installation of the Stove Fire Bricks and Baffle Having positioned your Burley stove and connected it to a chimney with flue pipe, you need to assemble the inside parts. There are five internal components: top brick, two side cheeks, a rear brick and a stainless steel baffle. -
Page 15: Commissioning The Appliance
Commissioning the Appliance On completion of the installation, when any fire cement or paint used has dried, a smoke ‘bomb’ should be burnt and all joints checked for smoke leakage and the chimney draw checked with all doors and windows closed. Please leave the instructions with the customer and inform them;- The first time the stove is lit only a small fire should be used to allow the paint to cure properly. -
Page 16: Recommended Fuels & Using The Moisture Meter
Recommended fuels & using the Moisture Meter 9103 9104 9105 9108 9112 Model Dry logs <20% Dry logs <20% Dry logs <20% Not for Dry logs<20% H₂O H₂O H₂O H₂O Requirement of fuels used in Maximum length Maximum length Maximum length Maximum length Use in Smoke Smoke Control... -
Page 17: Reasons For Premature Wear Of Internal Parts
Leaving door open Operation with the door open can cause excess smoke and a potential fire hazard. The appliance must not be operated with the door left open except as directed in the instructions. Overloading the fire The maximum amount of fuel specified in this manual should not be exceeded. -
Page 18: Chimney Sweeping And Maintenance
· The baffle should be cleaned at least twice a year with heavy use, checked, renewed as required and replaced. · Unless advised by Burley the stove should not be used with any baffle missing. · All rope and glass seals should be checked annually and replaced as necessary. -
Page 19: Warranty
HETAS installer, who will be able to provide the answers to most questions. Your Burley retailer also has a great deal of experience and will also be able to provide helpful advice. Further help is available from Burley’s Customer Services department who will be pleased to give advice, if necessary. -
Page 20: Customer & Installation Notes
Customer & Installation Notes Date of Installation: Installer Name & contact details Chimney Swept Date Notes: Made in the UK Burley Appliances Limited Further information can be found at: Lands’ End Way burley.co.uk/woodburner.php Oakham Rutland Email: sales@burley.co.uk LE15 6RB Phone: 01572 756956...
