OPERATING INSTRUCTIONS AND PARTS LIST
INSTRUCCIONES DE OPERACIÓN Y LISTA DE PIEZAS

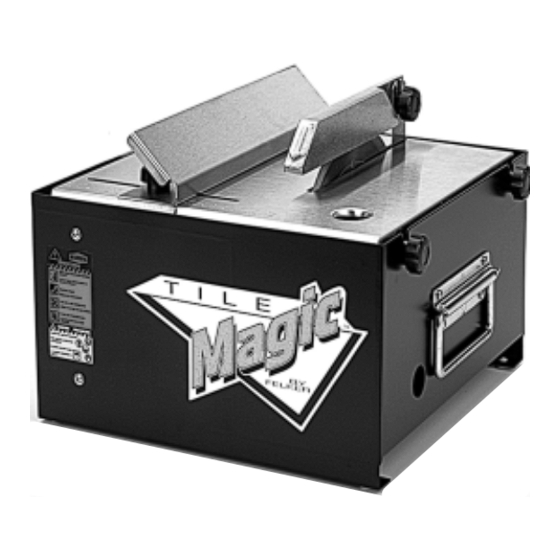

TILE MAGIC
MODEL: TMG-851
0AF04048
Copyright © October 1999 DBInc.
Printed in U.S.A.
17400 West 119th Street
Olathe, Kansas 66061
Customer Service ...... 800-365-4003
Corp. Office ................ 913-928-1000
Cust. Service FAX ...... 800-825-0028
Corp. Office FAX ........ 913-438-7951
1
Advertisement
Table of Contents
Related Manuals for Felker TILE MAGIC TMG-851
Summary of Contents for Felker TILE MAGIC TMG-851
- Page 1 OPERATING INSTRUCTIONS AND PARTS LIST INSTRUCCIONES DE OPERACIÓN Y LISTA DE PIEZAS TILE MAGIC 17400 West 119th Street Olathe, Kansas 66061 MODEL: TMG-851 Customer Service ..800-365-4003 Corp. Office ....913-928-1000 Cust. Service FAX ..800-825-0028 Corp. Office FAX ..913-438-7951 0AF04048 Copyright ©...
-
Page 2: Table Of Contents
EVERY MACHINE IS THOROUGHLY TESTED BEFORE LEAVING THE FACTORY. EACH MACHINE IS SUPPLIED WITH A COPY OF THIS MANUAL. OPERATORS OF THIS EQUIPMENT MUST READ AND BE FAMILIAR WITH THE SAFETY WARNINGS. FAILURE TO OBEY WARNINGS MAY RESULT IN INJURY OR DEATH. -
Page 3: Symbol Definitions
Symbol Definitions Definición De Los Simbolos • Please read the instructions for use prior to operating the machine for the first time. • Antes de la puesta en marcha, lea detenidamente las instrucciones y familiaricese con la máquina. • Mandatory •... - Page 4 • Use In Well Ventilated Area • Usar En Una Área Bien Ventilada • Do Not Use In Flammable Areas • No Usar In Áreas Inflamables • Machinery Hazard, Keep Hands And Feet Clear. • Máquina Peligrosa - Mantenga Manos Y Pies Alejados De La Máquina •...
- Page 5 • Number of Revolutions Per Minute, Rotational Speed • N° De Revoluciones Por Minuto, Velocidad De Rotación • Blade Flange Diameter • Diámetro De La Brida De La Hoja • Blade Cutting Depth • Profundidad De Corte De La Hoja •...
-
Page 6: Decal Descriptions And Locations
DECAL DESCRIPTIONS & LOCATION DESCRIPCIÓN DE CALCAMONIAS Y UBICACIONES P/N 171798 - TILE MAGIC™ P/N: 187043 P/N 169345 DECAL: Warning/Caution DECAL: Manual Reset CALCAMONIA: Precaución CALCAMONIA: Rearmado Manual P/N 169467 P/N 169466 MOTOR 230V MOTOR: 115V... -
Page 8: Safety Warnings - Dos & Do Nots
SAFETY FIRST! WARNINGS DO’s AND DO NOT’s WARNING: FAILURE TO COMPLY WITH THESE WARNINGS AND OPERATING INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY. read this entire operator’s manual before operating this machine. Understand all warnings, instruc tions, and controls. keep all guards in place and in good condition. - Page 9 SAFETY FIRST! WARNINGS DO’s AND DO NOT’s WARNING: FAILURE TO COMPLY WITH THESE WARNINGS AND OPERATING INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY. DO NOT DO NOT operate this machine unless you have read and understood this operator’s manual. DO NOT operate this machine without the blade guard, or other protective guards in place.
-
Page 10: Features
Your Tile Magic™ tile saw is factory assembled prior to shipment to ensure accurate cuts when the saw is delivered. However, since FELKER cannot control Before leaving our factory every machine is rough handling during shipping, it is suggested that the thoroughly tested. -
Page 11: Making Straight Cuts
Wet cutting blades can be damaged or at the most economical prices. (See front page for destroyed without sufficient water. address and phone numbers) Contact your authorized Felker ® dealer concerning maintenance and repairs. MAKING STRAIGHT CUTS 1. Loosen the knobs (item 26) and position the rip guide SPARE PARTS (item 25) at the distance required. -
Page 12: Advertencias De Seguridad Hacer & No Hacer
¡SEGURIDAD ANTE TODO! ADVERTENCIAS HACER y NO HACER ADVERTENCIA: EL NO RESPETAR ESTAS ADVERTENCIAS E INSTRUCCIONES DE OPERACION PUEDE PROVOCAR GRAVES LESIONES O LA MUERTE. HACER lea todo el manual antes de manejar esta máquina. Entienda todas las advertencias, instrucciones y controles. mantenga siempre las protecciones en su lugar y en buenas condiciones. - Page 13 ¡SEGURIDAD ANTE TODO! ADVERTENCIAS HACER y NO HACER ADVERTENCIA: EL NO RESPETAR ESTAS ADVERTENCIAS E INSTRUCCIONES DE OPERACION PUEDE PROVOCAR GRAVES LESIONES O LA MUERTE. NO HACER NO haga funcionar esta máquina sin antes haber leído y entendido este manual. NO maneje esta máquina sin tener la protección de la hoja u otras protecciones instaladas en su lugar.
-
Page 14: Caracteristica
PRECAUCIÓN: Asegúrese que el disco esté correctamente instalado. En caso contrario, se Motor Protección: dañará el disco Peso Normal: Dimensiones (La x An x Al): Mesade corte: Tanque Capacidad: En Friando la navaja: (Para información diríjase a su proveedor Felker) Instrucciones De Operación... -
Page 15: Para Hacer Cortes Rectos
PRECAUCIÓN: Mantenga el agua limpia y Protector Térmico - Rearmado Manual controle que el nivel del agua llegue al orificio de desborde. NOTA: Siga las recomendaciones del fabricante del disco para corte en seco o húmedo. Sólo se pueden usar sin refrigerante los discos específicamente disenados para corte en seco. -
Page 16: Diagrams And Spare Parts
FIGURE 1... - Page 17 FIGURE 1 - PARTS LIST TILE MAGIC Item Part Description Item Part Description Paso Paso 169451 Tank Housing 169454 Cover, Rear 169675 Bumper Plug 169456 Clip 169461 Handle 171742 Cord w/ 115 V Plug (NEMA 5-15P) 169587 Machine Screw, Pan Head, M4 x 16 171932 Cord - 250 V (No Plug) 167485...
-
Page 19: Warranty
3. Felker’s obligation under this warranty is expressly limited to the replacement or repair at Felker, Olathe, KS 66061, or at a service facility designated by Felker, of such parts as inspection shall disclose to have been defective. This warranty does not cover labor, except for gas powered Quickie Super saws and does not cover maintenance items such as belts, air filters, bearings and wheels.
