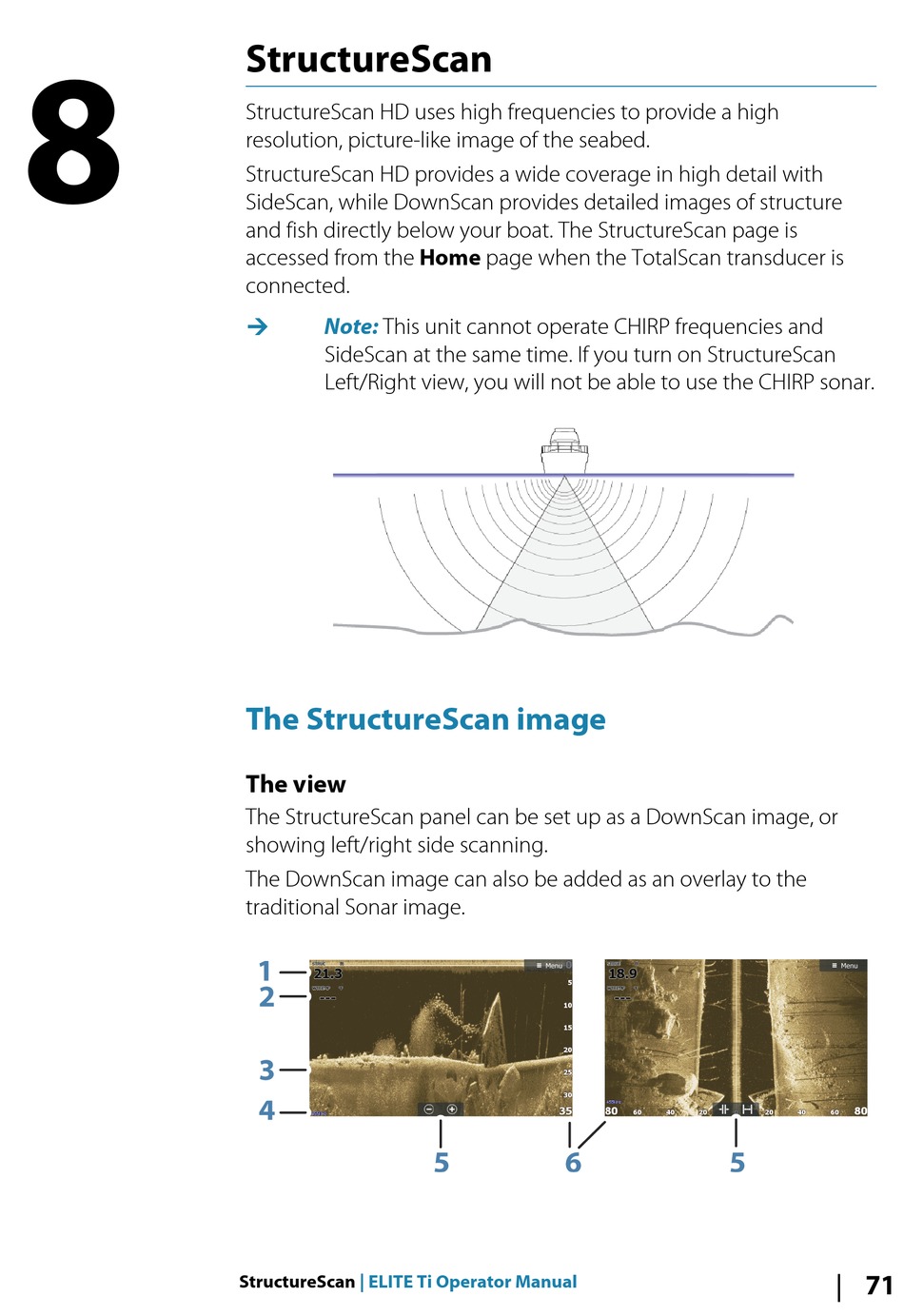

StructureScan

StructureScan HD uses high frequencies to provide a high
resolution, picture-like image of the seabed.
StructureScan HD provides a wide coverage in high detail with
SideScan, while DownScan provides detailed images of structure
and fish directly below your boat. The StructureScan page is
accessed from the Home page when the TotalScan transducer is
connected.
Note:
Ú This unit cannot operate CHIRP frequencies and
SideScan at the same time. If you turn on StructureScan
Left/Right view, you will not be able to use the CHIRP sonar.

The StructureScan image

The view
The StructureScan panel can be set up as a DownScan image, or
showing left/right side scanning.
The DownScan image can also be added as an overlay to the
traditional Sonar image.
