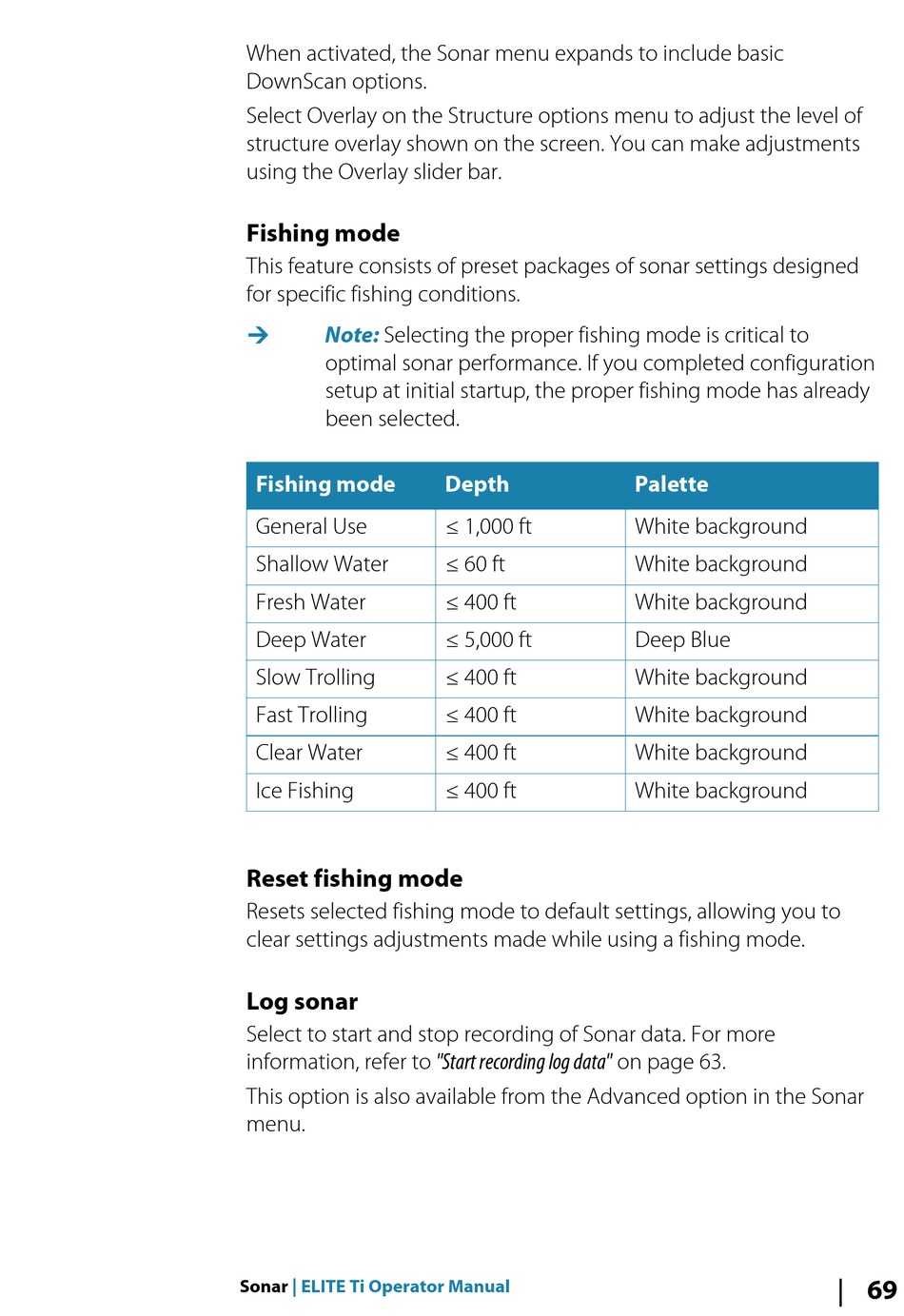

Lowrance ELITE Ti Operator's Manual page 69

When activated, the Sonar menu expands to include basic
DownScan options.
Select Overlay on the Structure options menu to adjust the level of
structure overlay shown on the screen. You can make adjustments
using the Overlay slider bar.
Fishing mode
This feature consists of preset packages of sonar settings designed
for specific fishing conditions.
Note:
Ú Selecting the proper fishing mode is critical to
optimal sonar performance. If you completed configuration
setup at initial startup, the proper fishing mode has already
been selected.
Fishing mode
General Use
Shallow Water
Fresh Water
Deep Water
Slow Trolling
Fast Trolling
Clear Water
Ice Fishing
Reset fishing mode
Resets selected fishing mode to default settings, allowing you to
clear settings adjustments made while using a fishing mode.
Log sonar
Select to start and stop recording of Sonar data. For more
information, refer to "Start recording log data" on page 63.
This option is also available from the Advanced option in the Sonar
menu.
Sonar | ELITE Ti Operator Manual
Depth
≤ 1,000 ft
≤ 60 ft
≤ 400 ft
≤ 5,000 ft
≤ 400 ft
≤ 400 ft
≤ 400 ft
≤ 400 ft
Palette
White background
White background
White background
Deep Blue
White background
White background
White background
White background
