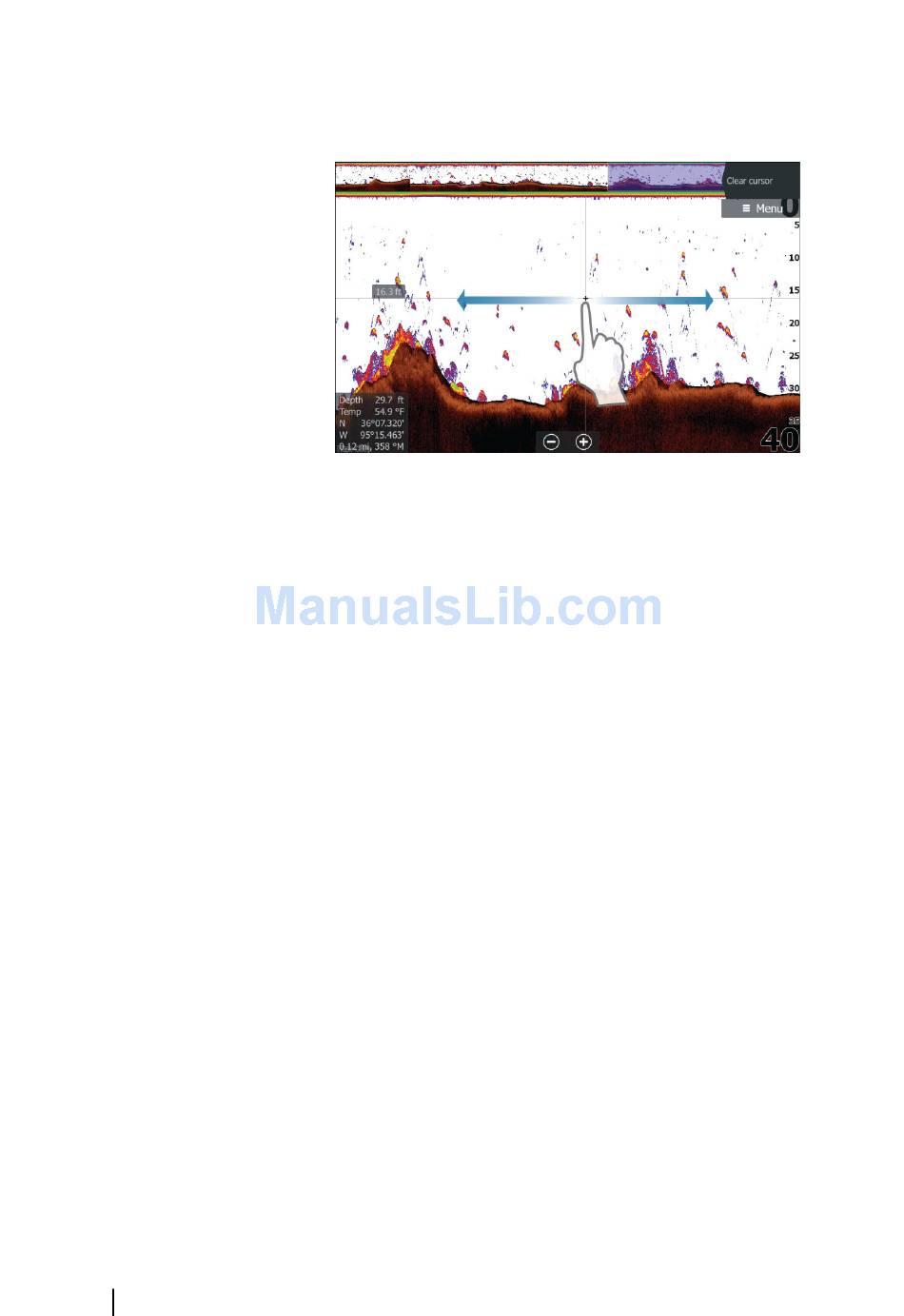

You can view sonar history by panning the image. You can also use
the preview feature to pan history, refer to "Preview" on page 67.
To resume normal scrolling, select the Clear cursor menu option.

Setting up the image

Use the Sonar menu options to set up the image. When the cursor
is active, some options on the Sonar menu are replaced with cursor
mode features. Select Clear cursor to return to the normal Sonar
menu.
The range
The range setting determines the water depth that is visible on the
screen.
Auto range
By default, the range is set to Auto. With Auto, the system
automatically displays the whole range from the water surface to
the bottom. Auto is the preferred setting for most fish finding sonar
use.
Preset range levels
Allows for the selection of a specific depth range that is not tied to
the depth of the water.
Custom range
This option allows you to manually set both upper and lower range
limits.
60
Sonar
| ELITE Ti Operator Manual
