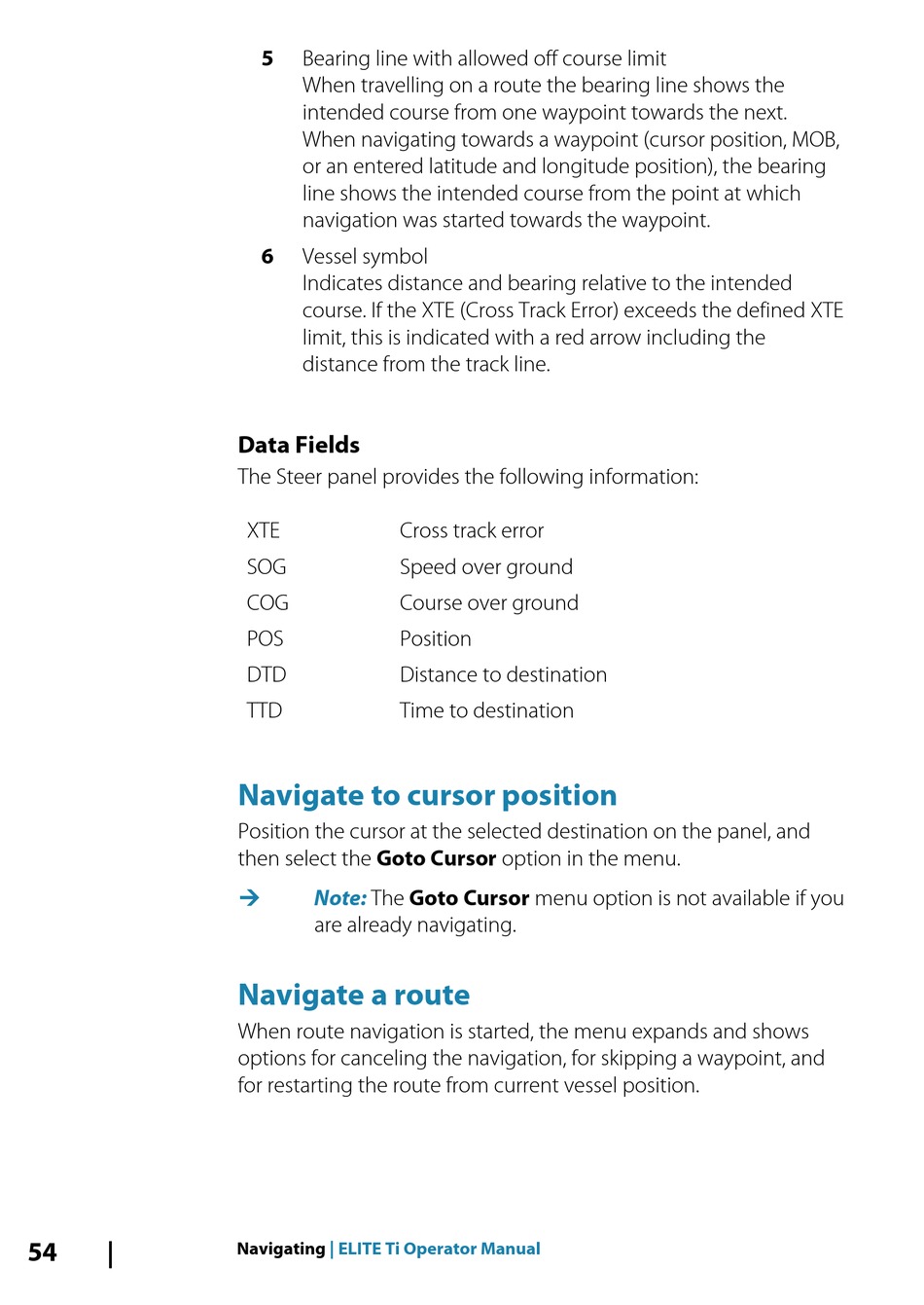

54
5
Bearing line with allowed off course limit
When travelling on a route the bearing line shows the
intended course from one waypoint towards the next.
When navigating towards a waypoint (cursor position, MOB,
or an entered latitude and longitude position), the bearing
line shows the intended course from the point at which
navigation was started towards the waypoint.
6
Vessel symbol
Indicates distance and bearing relative to the intended
course. If the XTE (Cross Track Error) exceeds the defined XTE
limit, this is indicated with a red arrow including the
distance from the track line.
Data Fields
The Steer panel provides the following information:
XTE Cross track error
SOG Speed over ground
COG Course over ground
POS Position
DTD Distance to destination
TTD Time to destination

Navigate to cursor position

Position the cursor at the selected destination on the panel, and
then select the Goto Cursor option in the menu.
Note: The Goto Cursor menu option is not available if you
Ú
are already navigating.

Navigate a route

When route navigation is started, the menu expands and shows
options for canceling the navigation, for skipping a waypoint, and
for restarting the route from current vessel position.
Navigating | ELITE Ti Operator Manual
