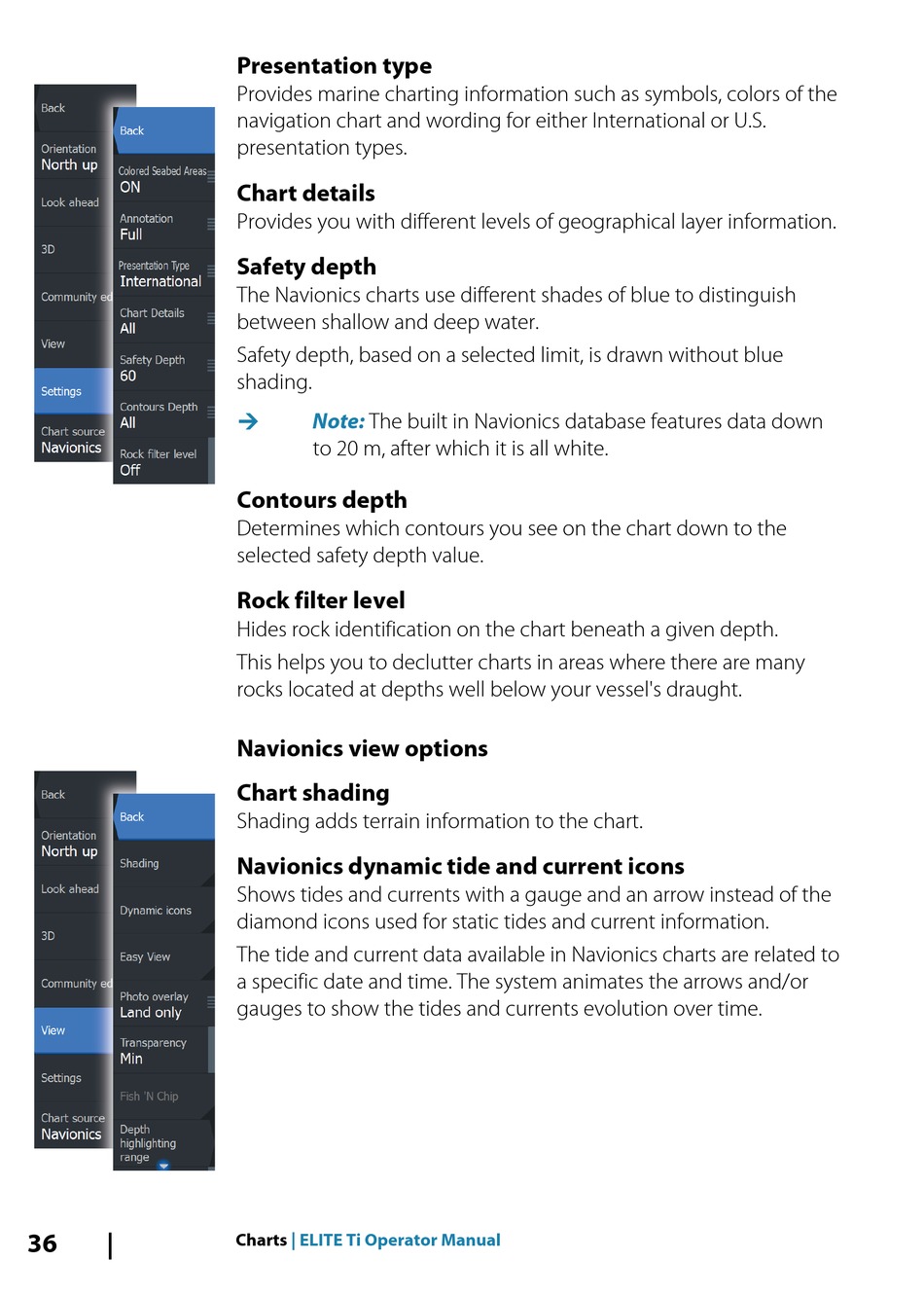

Presentation type
Provides marine charting information such as symbols, colors of the
navigation chart and wording for either International or U.S.
presentation types.
Chart details
Provides you with different levels of geographical layer information.
Safety depth
The Navionics charts use different shades of blue to distinguish
between shallow and deep water.
Safety depth, based on a selected limit, is drawn without blue
shading.
Note:
Ú The built in Navionics database features data down
to 20 m, after which it is all white.
Contours depth
Determines which contours you see on the chart down to the
selected safety depth value.
Rock filter level
Hides rock identification on the chart beneath a given depth.
This helps you to declutter charts in areas where there are many
rocks located at depths well below your vessel's draught.

Navionics view options

Chart shading
Shading adds terrain information to the chart.
Navionics dynamic tide and current icons
Shows tides and currents with a gauge and an arrow instead of the
diamond icons used for static tides and current information.
The tide and current data available in Navionics charts are related to
a specific date and time. The system animates the arrows and/or
gauges to show the tides and currents evolution over time.
