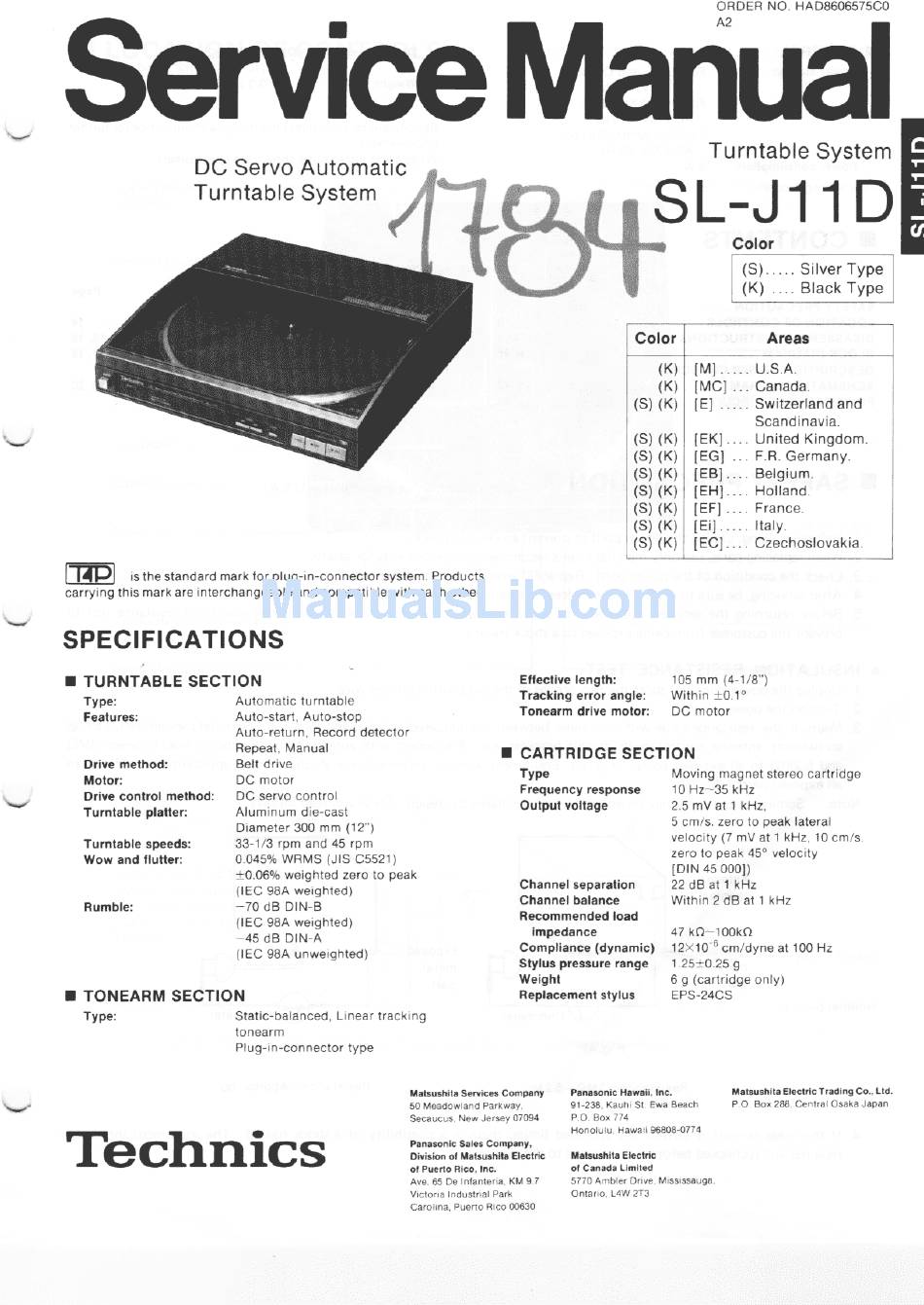

Technics SL-J11D Service Manual

" ' -
DC Servo Automatic
Turntable System
ORDER NO. HAD8606575CO
ariual
Turntable System
SL-J11 D
Color
(S) ..... Silver Type
(K) .... Black Type
Color Areas
(K) [MJ ..... U.S.A.
(K) [MC] ... Canada.
(S) (K ) [E) ..... Switzerland and
Scandinavia.
(S) (K) [EK] .... United Kingdom.
(S) (K) [EG ] .. . F.R. Germany.
(S) (K) (EB) .... Belg ium.
(S) (K) (EH) .... Holland.
(S) (K)
[EFJ ....
France.
(S) (K) [Ei] ..
...
Italy .
(S) (K) [EC] . . .. Czechoslovakia.
l~I
is th e standard mark for plug-in-connector system. Products
carrying this mark are interchangeable and compatible w ith each other.
SPECIFICATIONS
• TURNTABLE SECTION
Effective length: 105 mm (4-1 /8")
Within ± 0.1°
DC motor
Type:
Features:
Drive method:
Motor:
Drive control method:
Turntable platter:
Turntable speeds:
Wow and flutter:
Rumble:
Automatic turntable
Auto-start. Auto-stop
Auto-return. Record detector
Repeat, Manual
Belt drive
DC motor
DC servo control
Aluminum die-cast
Diameter 300 mm (12")
33-1 / 3 rpm and 45 rpm
0.045% WRMS (JIS C5521)
± 0 .06% weighted zero to peak
(IEC 98A weighted)
-70 dB DIN-B
(IEC 98A weighted)
-45 dB DIN-A
(I EC 98A unweighted)
Tracking error angle:
Tonearm drive motor:
• CARTRIDGE SECTION
Type
Frequency response
Output voltage
Channel separation
Channel balance
Recommended load
impedance
Compliance (dynamic)
Stylus pressure range
Weight
Moving magnet stereo cartridge
10 Hz- 35 kHz
2.5 mV at 1 kHz.
5 cm/ s. zero to peak lateral
velocity (7 mV at 1 kHz, 10 cm/ s.
zero to peak 45° velocity
[DIN 45 000))
22 dB at 1 kHz
Within 2 dB at 1 kHz
47 k0- 100k0
12x 10·
6
cm/dyne at 100 Hz
1.25± 0.25 g
• TONEARM SECTION Replacement stylus
6 g (cartridge only)
EPS-24CS
Type:
Static-balanced, Linear tracki ng
tonearm
Plug-in-connector type
Matsushita Services Company
50 Meadowland Parkway.
Secaucus. New Jersey 07094
Technics
Panasonic Sales Company,
Division ol Matsushita Electric
of Puerto Rico, Inc.
Ave 65 De lnfantena. KM 9.7
V1ctor18 Industrial Park
Carolina. Pueno Rico 00630
Panasonic Hawaii, Inc.
9 1-238. Kauhi St Ewa Beach
P.O. Box 774
Honolulu. Hawaii 96808-0774
Matsushita Electric
of Canada limited
5770 Ambl er Drive. Mississauga.
Ontano. L4W 2T3
Matsushita Electric Trading Co., Lid.
P.O Box 288, Central Osaka Japan
