GE JGBS07PEAWW Dimensions And Installation Information

GE Appliances
JGBS07PEAWW—30" Free-Standing XL44

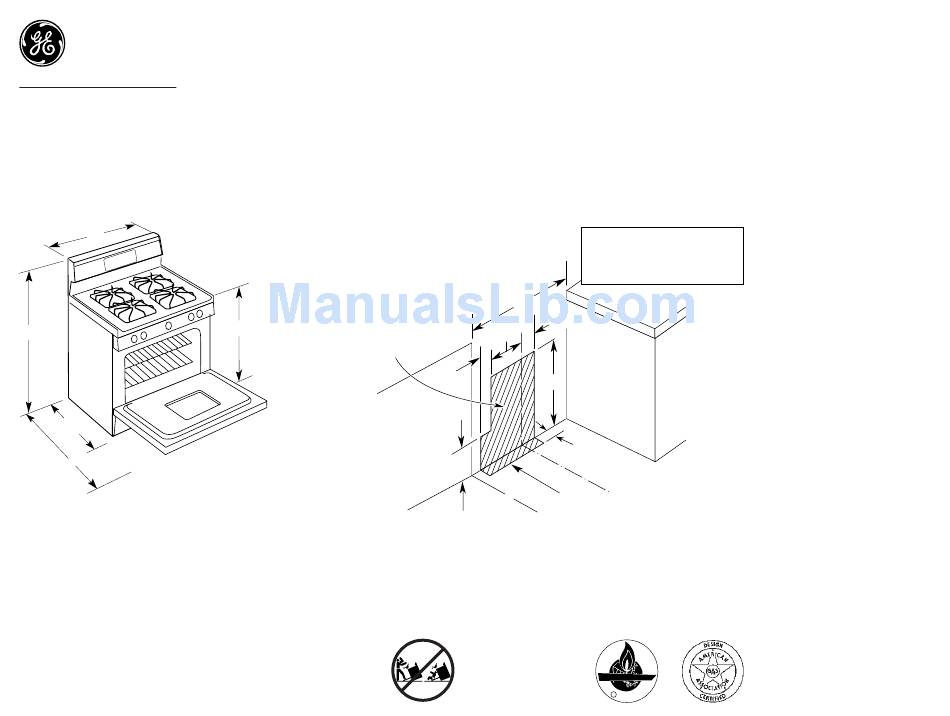

Dimensions (in inches) and Installation Information

30
45-1/2
29*
46-1/4
*Depth including handle
26-1/4"—Depth to front of closed oven door
25-1/4"—Depth to front top edge of cooktop
Created 2/98
™ Gas Range
Recommended area for
120V outlet on rear wall
and area for thru the wall
36±1/4
connection of pipe stub
and shut-off valve
For answers to your Monogram,
Performance Series,
GE appliance questions, call
GE Answer Center
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
30
C L
2-1/2
8
4
24
2
9
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
® GE Profile
™ GE Profile, ™ and
® service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
CANADIAN GAS ASSOCIATION
required step in the installation
of the range.
R APPROVED
Optional Gas Range
Accessory Drip Pans for Sealed
and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-848-7722.
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before
installing, consult installation
instructions packed with product
for current dimensional data.
