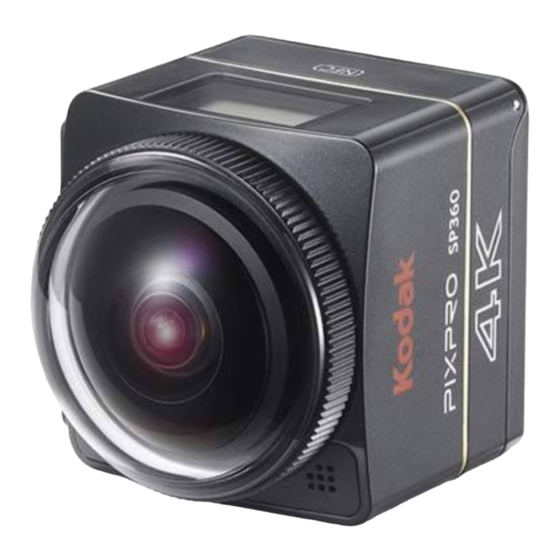

- Page 1 User Manual PIXPRO SP360 4K ( PC Version ) KODAK PIXPRO SP360 4K Action Cam Ver. 1.2...
-
Page 2: Before You Start
All trademarks mentioned in this manual are used for identification purposes only and are properties of their respective owners. This manual provides you with information on how to use the PIXPRO SP360 4K application (PC version). JK Imaging Ltd. has tried its utmost to ensure the correctness of the user manual contents, but reserves the right to modify as necessary. -
Page 3: Table Of Contents
Contents Before You Start ............................1 Contents ............................... 2 Connecting the Camera with the computer ..................4 Download and Install App .........................................4 Establish a Connection ........................................4 Wi-Fi Connections (supports remote Viewfinder, Playback & Edit) ......................4 USB connection (Playback & Edit) ..................................5 Operation Methods ........................... - Page 4 Unfold Mode ........................................9 Control Area ........................................12 Shooting Method ........................................14 Video recording ......................................14 Shooting ..........................................15 Playback & Edit ...........................................16 Playback & Edit interface .......................................16 Playback & Edit menu settings .....................................17 View Mode ........................................17 Unfold Mode ........................................17 Control Area ........................................18 Path ..........................................20 Control bar ........................................21 YouTube sharing ......................................23 More ..........................................24...
-
Page 5: Connecting The Camera With The Computer
Connecting the Camera with the computer Download and Install App Download Application "PIXPRO SP360 4K" (for PC) installation package from the official website, and install it on your computer by following the prompts on the interface. Americas Europe http://kodakpixpro.com/Americas/support/downloads.php http://kodakpixpro.com/Europe/support/downloads.php After successful installation, this icon will appear on the desktop. -
Page 6: Usb Connection (Playback & Edit)
USB connection (Playback & Edit) 1. Use the Micro USB cable to connect a computer (the computer should be on) to the camera. During the connection, the camera will display "Connecting ...", and the computer will automatically detect the camera's signal. 2. -
Page 7: Operation Methods
Operation Methods Remote Viewfinder Once connected via Wi-Fi, this interface can be used to capture photos and video. Remote Viewfinder Interface A. Setup area Display area Original image file Remote Viewfinder Playback & Edit Unfold image General Settings View Mode • Press and hold the left mouse button to Capture Mode drag the image. -
Page 8: Remote Viewfinder Menu Settings
Remote Viewfinder menu settings The menu is set by clicking the option icon or on the left of the option. Remote Viewfinder Playback & Edit Remote Viewfinder Playback & Edit General Settings General Settings View Mode View Mode Capture Mode Capture Mode Movie Photo... -
Page 9: Capture Mode
Capture Mode There are 2 options: • Movie Enter video mode. • Photo Enter shooting mode. Movie Size Set the video resolution. There are 8 options: • 2880P30 2880x2880 1:1 30p • 4KP30 3840x2160 16:9 30p • 2048P30 2048x2048 1:1 30p •... -
Page 10: Unfold Mode
Unfold Mode Select from several different viewing effects. Remote Viewfinder Playback & Edit General Settings View Mode Capture Mode Movie Photo Movie Size 2880P30 2048P30 1440P60 1072P60 4KP30 1080P60 720P60 FWVGA60 Unfold Mode 16:9 Global Front Quad Panorama Magic flat Ring Dome Control Area... - Page 11 The files shot in Front mode are saved as square files and cannot be expanded. The files shot in the other 7 modes are saved as spherical files with the following expanding effects:...
- Page 12 Corresponding table for Movie size and Unfold mode: (O means "available", X means "not available") Unfold mode 4:3 16:9 Movie size 2880P30 2048P30 1440P60 1072P60 4KP30 1080P60 720P60 FWVGA60 Corresponding table for Photo size and Unfold mode: (O means “available”, X means “not available”) Unfold mode 4:3 16:9 Photo size...
-
Page 13: Control Area
Control Area Calibration Fine-tune video image range (This function allows adjustment of the imaging area before shooting). Follow these steps to fine tune the image area: 1. Click the "Calibration" button in the setup area and the red calibration line will appear in the display area. 2. - Page 14 Up / Down / Left / Right / These buttons provide functions such as moving, flipping or zooming the image. Buttons Up / Down Left / Right Unfold Mode Move counterclockwise /Move clockwise No effect No effect No effect 4:3 16:9 Move to the left/right Move Up/ down Move clockwise/Move counterclockwise...
-
Page 15: Shooting Method
Shooting Method Video recording Click the "REC" button to start video recording. Click the "STOP" button to stop video recording. Remote Viewfinder Playback & Edit Remote Viewfinder Playback & Edit General Settings General Settings View Mode View Mode Capture Mode Capture Mode Movie Photo... -
Page 16: Shooting
Shooting Click the "Shutter" button to shoot a photo. Remote Viewfinder Playback & Edit General Settings View Mode Capture Mode Movie Photo Photo Size 8MP(1:1) 4MP(4:3) 2MP(16:9) Unfold Mode 16:9 Global Front Quad Panorama Magic flat Ring Dome Control Area Left Center Right... -
Page 17: Playback & Edit
Playback & Edit Click the “Playback & Edit” tab to enter the interface that enables playback or editing files. Playback & Edit interface A. Setup area Display area Index Unfold image Remote Viewfinder Playback & Edit General Settings More • Press and hold the left mouse button to View Mode drag the image. -
Page 18: Playback & Edit Menu Settings
Playback & Edit menu settings View Mode See Page 7 for explanations. Unfold Mode There are 11 options: • Global • • Ring • Front • Quad • Magic flat • Front • Panorama • Dome 16:9 See Page 10 for visual representations of the first 9 options. •... -
Page 19: Control Area
mode, click the icon below the index view to show the preview, and click the icon below the preview to show the index view. Control Area Calibration See Page 12 for explanations. - Page 20 Up / Down / Left / Right / Button Up / Down Left / Right Unfold Mode No effect No effect Move counterclockwise /Move clockwise 16:9 Move to the left/right Move Up/ down Move clockwise/Move counterclockwise Zoom In/Out No effect Move to the left/right Flip Up/Down Move counterclockwise /Move clockwise...
-
Page 21: Path
Path Camera (Wi-Fi Connection) Click on this icon to browse the files in the camera when the Wi-Fi is connected. Remote Viewfinder Playback & Edit General Settings View Mode YYYY/MM/DD 00:00:00 Name:100_0341 Unfold Mode 16:9 Global Front Front Quad Magic flat Panorama Extraction Throw-out... -
Page 22: Control Bar
Control bar Camera (Wi-Fi Connection) Movie: Download Photo: Download When connected to Wi-Fi, the camera cannot play the movie directly. You will need to download the movie onto your computer before playing. Camera (USB Connection) or PC Save as Movie: Photo: Save as Features of buttons on the control bar... - Page 23 • Video progress bar 00:09:10 01:03:00 The video can be quickly jumped to a particular frame by sliding the slider below the progress bar. The starting and ending points of video capture can be selected by sliding the two sliders above the progress bar. •...
-
Page 24: Youtube Sharing
YouTube sharing Round film can be converted into the format compatible with YouTube (Viewing angle can be adjusted by mouse while playing on YouTube). 1. Move the two sliders above the progress bar to select a time frame, click 2. Select the direction of the camera body while recording, check if the image direction is correct via the preview on the right side of the interface. -
Page 25: More
More When connected to Wi-Fi this function is not displayed while camera’s file is being played back. 1. Click to enter the “Advanced Settings” interface. More Advanced Settings Enable Sharpness Contrast Control Area Brightness Saturation Default Close 2. Slide the arrow to the left or right to adjust the Sharpness/Contrast/Brightness/Saturation. Before adjusting Sharpness, first click "Enable". -
Page 26: About Version
About Version Click "About Version X.X" to enter the About Interface. About PC Software for xxxxx xx v x.x About Version X.X Software version UP © 2015 JK Imaging Ltd. All Rights Reserved. For More Information http://kodakpixpro.com 1. View the current version of software. 2. - Page 27 © 2015 JK Imaging Ltd. All Rights Reserved. JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA JK Imaging Europe, 71 Clarendon Road, Watford, WD17 1DS, UK http://kodakpixpro.com...
