Sandstrom S32LDIB10 Instruction Manual

Sandstrom S32LDIB10 Instruction Manual

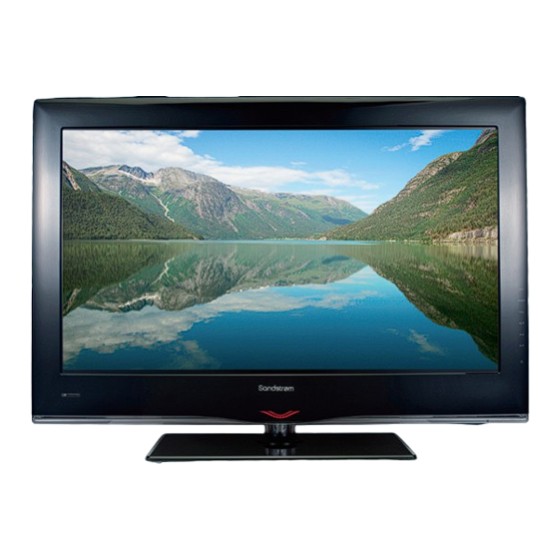

32" hd ready 1080p led backlit lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Sandstrom S32LDIB10

Summary of Contents for Sandstrom S32LDIB10

  • Page 3: Table Of Contents

    Contents Preparation ....................................3 Unpacking the TV ........................................3 Installing / Removing the Base Stand ................................4 Front View and Controls .......................................5 Rear View and Sockets ......................................6 Installing Batteries in the Remote Control ..............................7 Remote Control Operation Range ..................................7 Remote Control ........................................8 Connections ....................................
  • Page 4 Digital Teletext (DTV Mode) ..................................... 33 − Teletext within Digital Service ................................33 EPG (Electronic Programme Guide) (DTV Mode) ............................. 33 − Switch On/Off EPG ....................................33 − View a Programme ....................................34 Using the Features via USB Port ............................35 Picture ............................................

  • Page 5: Preparation

    Preparation Congratulations on the purchase of your new Sandstrøm TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features.

  • Page 6: Installing / Removing The Base Stand

    Installing / Removing the Base Stand The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.

  • Page 7: Front View And Controls

    Front View and Controls Item Description Receives IR signals from the remote control. IR (Infrared Receiver) Do not put anything near the sensor, as this will affect its performance. Illuminates red when the TV is in standby mode and flashes for a few seconds when POWER LED you turn on the TV.

  • Page 8: Rear View And Sockets

    Rear View and Sockets Item Description MAINS CABLE Connect the mains cable to the mains socket. VGA / PC AUDIO Connect to a computer or other devices with a VGA out / PC audio out interface. USB port Allows the insertion of a USB storage device to play video, audio, photo (DMP Mode). Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video VIDEO / AUDIO (L/R) devices by using the audio adapter cable provided.

  • Page 9: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control Slide the back cover to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.

  • Page 10: Remote Control

    Remote Control 1 Transmission Indicator Illuminates red when you press a button. Source Switch the TV between on and standby mode. 3 TV A short-cut to switch the input source to TV mode directly. 4 Source Select from the different input signal sources: TV / AV / Component / SCART / VGA / HDMI1 / HDMI2 / HDMI3 / DMP.
  • Page 11 21 Lang. Change the audio language or audio channel. (For Source digital TV programmes with multiple audio language in TV mode) A short-cut to switch to DMP mode directly. Play/Pause Press to start playback or pause. (DMP mode) Stop Press to stop playback. (DMP mode) Use to advance or reverse playback rapidly.

  • Page 12: Connections

    Connections Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

  • Page 13: Connecting A Computer With A Vga Cable

    Connecting a Computer with a VGA Cable Audio Cable (not included) VGA Cable (not included) Computer Use a VGA cable to connect the TV’s VGA input socket to a computer’s VGA output socket. Use an audio cable to connect the TV's PC AUDIO input socket to the computer’s audio output socket.

  • Page 14: Connecting An Av Device With Scart Adapter Cable

    Connecting an AV Device with a SCART Adapter Cable SCART Adapter Cable (included) Set-top Box SCART DVD Player / Recorder Satellite Receiver Cable (not included) SCART adapter cable to the TV's SCART input socket. Connect the other end of SCART adapter cable to Connect the included a SCART cable.

  • Page 15: Connecting Earphones

    Connecting Earphones Earphones Cable (not included) Connect your earphones to the TV's HEADPHONE socket. Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level. Listening to loud sounds for prolonged periods of time may permanently damage your hearing. Connecting a USB Storage Device USB Cable (not included)

  • Page 16: Initial Setup

    Turning the TV On for the First Time Connect the mains cable to the mains socket after you have completed all the connections. I/O POWER ON/OFF switch at the bottom of the Switch on the TV. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
  • Page 17 buttons to highlight Country and then press the Press the Startup Menu OK button or the button to enter Country option. OSD Language English Country Use Mode Home Mode Auto Install : Exit buttons and then press the OK button to select the Press the country where you will operate the TV.

  • Page 18: Selecting The Input Source

    buttons to highlight Auto Install and then press Press the Startup Menu the OK button or the button to confirm. OSD Language English Country Use Mode Home Mode Auto Install : Exit Auto install will commence. This operation may take up to 5 minutes.

  • Page 19: Channel Selection

    Channel Selection Channel List 5 five buttons on the remote control repeatedly or the 0-9 • Press the 15 Ch 15 16 800 buttons to select a channel. 17 UK Gold 23 bid-up.tv DTV Channel 25 TCM Alternative ATV Channel 27 800 Press the CH List button to display the Channel List.

  • Page 20: Using The Features

    Using the Features Customising the Picture Setting Allows you to set your preferred picture mode. Press the Menu button to display main menu. Press the buttons to select the Picture menu and then press the OK button or the button to enter the Picture menu.

  • Page 21: Video Size (Aspect Ratio)

    Video Size (Aspect Ratio) Allows you to watch the screen in various picture formats: Auto / 16:9 / 4:3 / Zoom / Expand / Smart Zoom / Dot to Dot. Press the Zoom button repeatedly to select the desired format. Input Signal 4:3 Input Signal 16:9 Auto...

  • Page 22: Customising The Sound Setting

    Customising the Sound Setting Allows you to select an audio-enhancement technique. Press the Menu button to display the main menu. Press the buttons to select the Sound menu and then press the OK button or the button to enter the Sound menu. : Exit Press the buttons to select the following options.

  • Page 23: Customising The Function Setting

    Press the buttons to select the following options. Press the buttons to adjust the setting or press the OK button or the button to enter the option. Image Position Adjusts the position of the picture in the window. Press the buttons to adjust the horizontal position and the buttons to adjust the vertical position.

  • Page 24: Startup Menu

    Startup Menu Allows you to set the Initial Setup Menu On / Off the next time you turn on the TV. Press the Menu button to display the main menu. Press the buttons to select the Function menu and then press the OK button or the button to enter the Function menu.

  • Page 25: Timer

    Press the buttons to select the following options and then press the buttons to adjust the setting. Digital Subtitle Allows you to select your desired primary Language / secondary subtitle language or turn off the subtitle. (Available for digital channels if multiple subtitle languages are broadcast.) Subtitle Type Allows you to select your desired subtitle type...
  • Page 26 Press the buttons to select the following options and then press the buttons to adjust the setting. Sleep Timer The sleep timer automatically switches the TV to standby after the preset time has elapsed. Time must be set before using Sleep Timer function. Press the buttons to select a period of time after which the TV automatically switches to standby mode: Off / 10 / 20 / 30 / ...

  • Page 27: Version Info

    Version Info Allows you to view the software version of the TV. Press the Menu button to display the main menu. Press the buttons to select the Function menu and then press the OK button or the button to enter the Function menu. buttons to select Version Info and then press the OK button Press the or the...

  • Page 28: Parental Rating

    Parental menu. Press the You must enter the password before entering the 0-9 buttons to enter the password. Input Password : Return The default password is “0000”. If you change the password, be sure to remember the new password! If you forget the new password, press the master password “8087”...

  • Page 29: Channel Block

    buttons to select Parental Rating and then press the OK Press the button to enter Parental Rating. button or the : Back Press the buttons to adjust the Age Rating: None, 4, ...,18. Press the Menu button to return to the previous menu. Press the Exit button to exit the menu.

  • Page 30: Customising The Channel Setting (Tv Or Radio Mode)

    Customising the Channel Setting (TV or Radio Mode) Manual Install Allows you to make manual fine tuning adjustments if the channel reception is poor under TV mode. Press the Menu button to display the main menu. Press the buttons to select the Channel menu and then press the OK button or the button to enter the Channel menu.

  • Page 31: Auto Install

    Auto Install Use this to automatically find and store all available channels. Normally recommended if some channels have been added/ removed by the broadcaster or you have moved house. Press the Menu button to display the main menu. Press the buttons to select the Channel menu and then press the OK button or the button...

  • Page 32: Channel Edit

    Channel Edit Allows you to edit TV programmes in the Channel List. Menu button to display the main menu. Press the Press the buttons to select the Channel menu and then press the OK button or the button to enter the Channel menu. Channel Edit Press the buttons to select the Channel Edit and then press the OK...

  • Page 33: Ci (Common Interface) (Dtv Mode)

    CI (Common Interface) (DTV Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the service provider.

  • Page 34: Teletext (Tv Mode)

    Teletext (TV Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

  • Page 35: Digital Teletext (Dtv Mode)

    Digital Teletext (DTV Mode) Some programmes are broadcast with digital teletext and special services, these can be identified in the Info screen when "MHEG" is displayed. Subtitles will vanish while the digital teletext is displayed. Teletext within Digital Service CH List button to display the Channel List. Press the In DTV mode, press the buttons and then press the OK button to select the teletext channel.

  • Page 36: View A Programme

    View a Programme Press the buttons to select the desired channel and the buttons to view the programme schedule. Button Functions in a 7 Days Guide Remote Control Button Function GREEN Press the GREEN button to view the next day programme in the Schedule List. Press the RED button to view the previous day programme in the Schedule List BLUE (Programme Type BLUE button to display...

  • Page 37: Using The Features Via Usb Port

    Picture Press the Source button to display the Input Source List. Press the Picture 01/01 buttons to select DMP and then press the OK button or the button to enter the DMP menu. Alternative You may press the DMP button to enter DMP menu directly. Press the buttons to select Picture and then press the OK button to confirm.

  • Page 38: Video

    Press the button to pause the music playback and press again to resume spring.mp3 00:00:03/00:04:03 128kbps 44kHz the playback. Press the buttons to set the play speed: x2, x4. Press the button to resume the normal playback. Press the buttons to play the previous or next music. Press the RED button to set the cycle mode.
  • Page 39 Exit button again to exit the menu. Press the 00:00:03/00:04:03 .avi • File formats supported: MPEG1 (.dat), MPEG2 (.mpg), MPEG4 (.mpg). Title: Director: N/A • File with resolution above 720p will not be displayed. Copyright: N/A Date: Genre: Duration: 00:04:03 Next: .avi Picture Mode...

  • Page 40: Maintenance

    Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to switch off the I/O POWER ON/OFF switch and disconnect the mains cable from the mains socket before you start any cleaning. Use a soft dry cloth to wipe away the dust from the screen and surfaces. If the surfaces are extremely dirty, clean the TV with a cloth which has been dipped in a weak soapy water.
  • Page 41 The audio function does not work. buttons on the right side of the front panel or the VOL • Press the buttons on the remote control. Picture OK but no sound • Sound muted? Press the button. • Try another channel. The problem may be caused by the broadcaster. No output from one of the speakers Balance settings in the Sound menu.

  • Page 42: Display Modes

    Display Modes The screen resolution has been optimised during production for the display modes listed below. Whilst the TV is capable of accepting a 1080p input, it is not capable of displaying this screen resolution and therefore the display will be scaled to fit the native resolution of the screen automatically. YPbPr Mode Resolution Vertical Frequency (Hz)

  • Page 43: Specification

    Specification Model S32LDIB10 Panel System 32 inch LCD Panel Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical) Television System PAL I/BG/DK SECAM L/BG/DK Brightness 450 cd/m Contrast Ratio 1000:1 Inputs/Output SCART HDMI PC AUDIO YPbPr (3.5mm) COMMON INTERFACE VIDEO IN (3.5mm) AUDIO IN (3.5mm)

  • Page 44: Safety Warnings

    Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting/disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit.
  • Page 45 Earphones The lightning flash with arrowhead symbol, • Listening to loud sounds for prolonged periods of time within an equilateral triangle, is intended to may permanently damage your hearing. alert the user to the presence of uninsulated • Before putting on earphones, turn the volume down “dangerous voltage”...
  • Page 46 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number TV Base 1063101 Screws x 4 1031741 Remote Control 1068126 AAA Batteries x 2 1028333 SCART Adapter Cable 1064813 Audio Adapter Cable 1064814...
