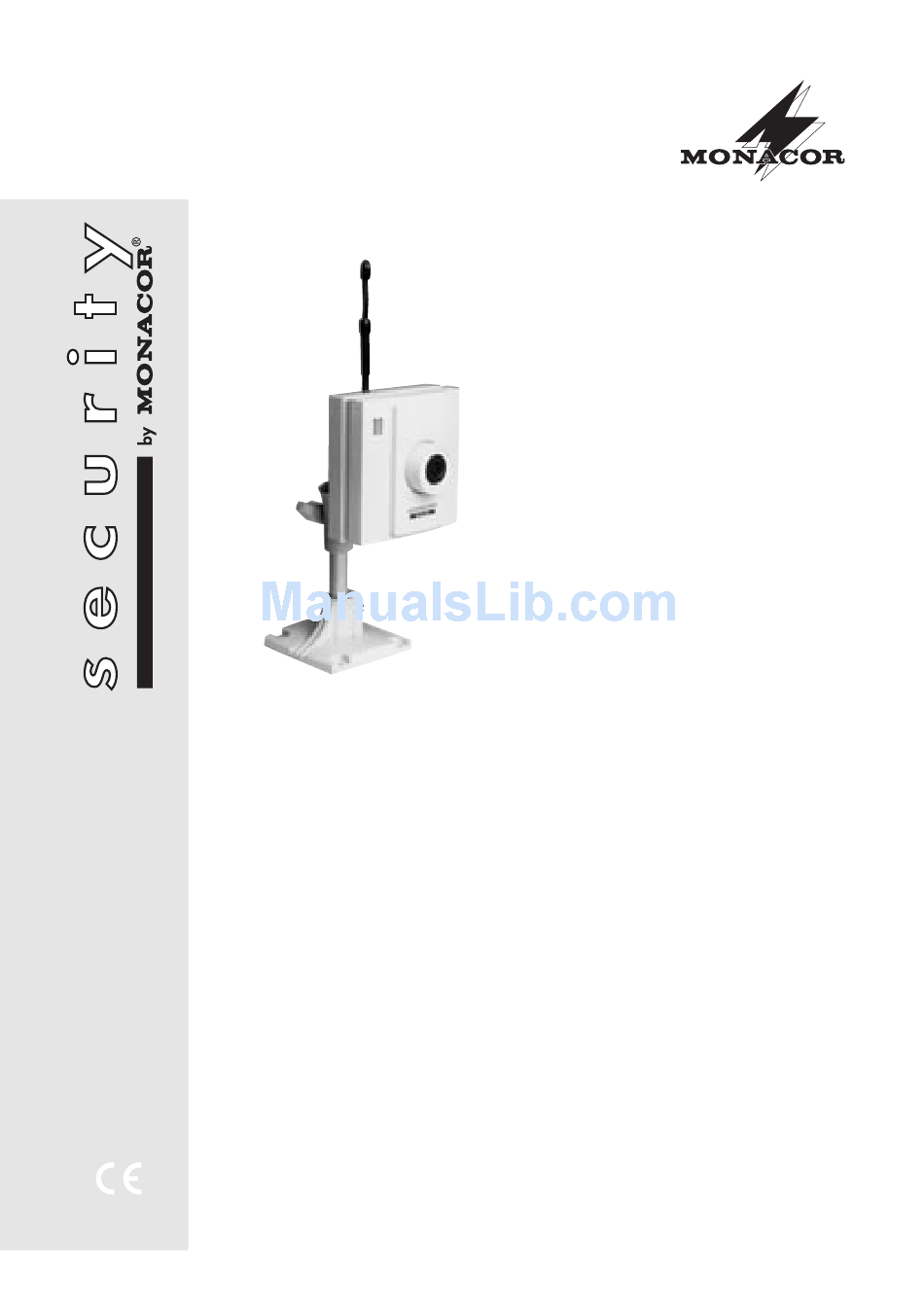

2,4-GHz-FUNKSYSTEM
25-mW-FUNKKAMERA
2.4 GHz WIRELESS TRANSMISSION SYSTEM
25 mW WIRELESS CAMERA
AV-3010CCD
Best.-Nr. 19.5030
BEDIENUNGSANLEITUNG
INSTRUCTION MANUAL
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-3010CCD and is the answer not in the manual?

Questions and answers

Summary of Contents for Monacor AV-3010CCD

  • Page 1 2,4-GHz-FUNKSYSTEM 25-mW-FUNKKAMERA 2.4 GHz WIRELESS TRANSMISSION SYSTEM ® 25 mW WIRELESS CAMERA AV-3010CCD Best.-Nr. 19.5030 BEDIENUNGSANLEITUNG INSTRUCTION MANUAL...
  • Page 3 Bevor Sie einschalten ... Wir wünschen Ihnen viel Spaß mit Ihrem neuen Gerät von MONACOR. Dabei soll Ihnen diese Bedienungsanleitung helfen, alle Funktions- möglichkeiten kennen zu lernen. Die Beachtung der Anleitung vermeidet außerdem Fehlbedie- nungen und schützt Sie und Ihr Gerät vor even- tuellen Schäden durch unsachgemäßen Ge-...
  • Page 4: Übersicht Der Bedienelemente Und Anschlüsse

    STABILISIERTES NETZGERÄT AV-3010CCD 5.5 X2.1 5.5X2.1 ® Best.-Nr. 12.2850 Sender G750 Transmitter 817J IMHB-2025 Serial- No. P01/ 001184 - 01 12 9 7.5 6 4.5 3 SPANNUNG 1 Übersicht der Bedienelemente 2 Hinweise für den sicheren Gebrauch und Anschlüsse Die Kamera und das beiliegende Netzgerät entspre- chen der Richtlinie 89/336/EWG für elektromagneti-...
  • Page 5: Montage

    1) Am Netzgerät die Ausgangsspannung auf 12 V einem 2,4-GHz-Empfänger der Serie „AV-...R“ von einstellen. Den Schalter SPANNUNG (7) ganz MONACOR und einem Monitor zur drahtlosen Video- nach links in die Position „12“ schieben. Überwachung. Die Übertragungsreichweite hängt stark von den 2) Dem Netzgerät liegen acht Adapter bei.
  • Page 6: Operating Elements And Connections

    STABILISIERTES NETZGERÄT AV-3010CCD 5.5 X2.1 5.5X2.1 ® Best.-Nr. 12.2850 Sender G750 Transmitter 817J IMHB-2025 Serial- No. P01/ 001184 - 01 12 9 7.5 6 4.5 3 SPANNUNG 1 Operating Elements and Connections 2 Safety Notes The camera and the supplied power supply unit cor-...
  • Page 7: Operation

    1) Set the output voltage on the power supply unit to In combination with a 2.4 GHz receiver of the 12 V. Slide the switch SPANNUNG (7) fully to the MONACOR “AV-...R” series and a monitor, the wire- left to position “12”. less B/W camera AV-3010CCD with integrated elec- tret microphone serves for wireless video surveillance.
  • Page 8 Copyright by MONACOR INTERNATIONAL GmbH & Co. KG, Bremen, Germany © ® All rights reserved. www.monacor.com A-0048.98.01.11.2002...
