- Page 1 PULSE AR III Metal Detector on the basis of pulse induction Instruction Manual KTS-Electronic Germany...
-
Page 2: Table Of Contents
Table of Content Introduction .................. 3 Volume of delivery ............... 3 III. Installation ..................3 Appropriate handling ..............4 Adjustment ................... 4 Application of the RESET-button ..........5 VII. Indication of metal ............... 5 VIII. Search process ................6 Electronic unit (front side) ............6 Electronic unit (back) .............. -
Page 3: Introduction
(gold, silver, platinum). To avoid possible operating errors please read this instruction manual carefully. We wish you much success with your new PULSE AR III and will be at your disposal, if any questions should arise. -
Page 4: Appropriate Handling
(no jogging). Adjustment The metal detector PULSE AR III can be adjusted in no time. By using the turning knob “MODE” you activate the metal detector. Briefly press the RESET-button in order to obtain a zero balance which is necessary for a failure-free search. -
Page 5: Application Of The Reset-Button
(e.g. a tube), a high tone in any direction calls for a circular object. During search it often happens that side noises appear to be disruptive. Therefore we recommend the use of the provided headphones. KTS-Electronic – PULSE AR III... -
Page 6: Search Process
The MODE-knob can be switched to 4 positions: DISC: In this search mode the discriminator comes into operation. Thereby an optical and acoustical discrimination takes place. The different metals will be signaled through varying tones and conductivity values. KTS-Electronic – PULSE AR III... - Page 7 4. VOLUME: Volume control. 5. RIGHT-HAND LED: The right-hand LED serves the purpose of discrimination in DISC mode; the left-hand LED flashes when the optical indicator appears in the ALLM and DISC mode. KTS-Electronic – PULSE AR III...
-
Page 8: Electronic Unit (Back)
2. Headphone socket: Any commercial headphones with 6.3mm jack can be plugged in. If you use the headphones, the speaker is turned off. Matching, light-weight headphones are provided with this device. KTS-Electronic – PULSE AR III... -

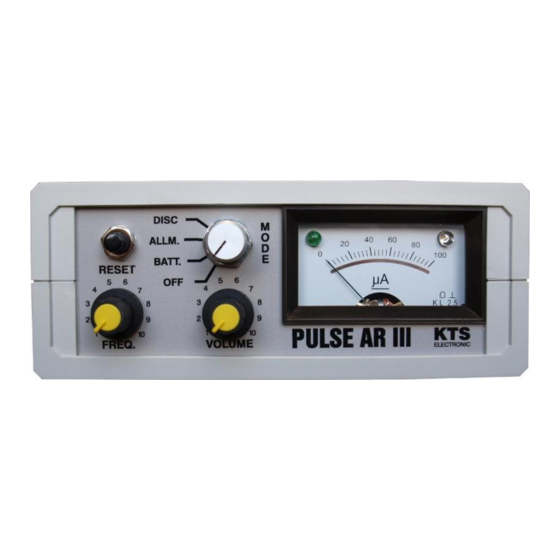

Page 9: Usage Of Appropriate Searchcoils
Usage of appropriate searchcoils According to the purpose PULSE AR III is applicable with various searchcoils. 25 cm searchcoil The 25 cm searchcoil is the standard tube of PULSE AR III and is particularly suitable for the search after small metal objects. - Page 10 Arrange the searchframe on a flat surface and be sure that the frame is straight. Afterwards the cable has to be placed on the pipe and fixed at the corners through the provided tape. Please be sure that the cable and searchframe are firmly connected to each other. KTS-Electronic – PULSE AR III...
-
Page 11: Accumulator And Battery Charger
To prevent damages at the accumulator (e.g. by overheating) always pay attention to the loading times. Close the loading process immediately after the accumulator is fully loaded. Never load the metal detector without attendance or overnight. KTS-Electronic – PULSE AR III... -
Page 12: Technical Data
XIV. Error signals In line with the development of your PULSE AR III great emphasis was placed on stability and the avoidance of incidences. Despite the multiplicity of filters and modulators it is unfortunately possible that certain soil conditions cause disturbances, which can effect your measured values. -
Page 13: Care
XV. Care Your PULSE AR III does„nt need much care, yet there are some points, which you should consider, in order to receive its optimal readiness for operation. Protect the electronic housing with a plastic bag in case you should get caught by rain, fog or dust. -
Page 14: Warranty
Kurhessenstr. 1 D-64546 Mörfelden-Walldorf Germany Tel: +49-(0)6105 9111-50 Fax: +49-(0)6105 9111-55 www.kts-electronic.com eMail: mail@kts-electronic.com Copyright 2008 by KTS-ELECTRONIC/Germany. A duplication or usage of visual and textual content of this publication is not allowed without explicit consent. KTS-Electronic – PULSE AR III...
