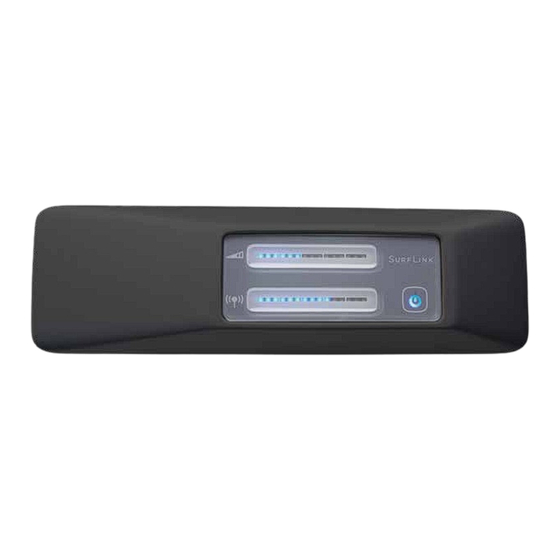

MEDIA 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Media 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SurfLink Media 2

Summary of Contents for SurfLink Media 2

  • Page 1 MEDIA 2...

  • Page 2: Table Of Contents

    Table of Contents Introduction � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Rear Panel Overview �...

  • Page 3: Introduction

    Streaming – Audio or sound transmitted wirelessly from SurfLink Media directly to your hearing instruments� Electronic Audio Source – These provide the audio content that can be streamed through SurfLink Media to your hearing instruments� Examples include television, radio, computer, MP3 player, DVD player and cable box�...
  • Page 4 Typical Setup Cable Box Back View (Audio Outputs) SurfLink Media Back View Audio Out Typical Cable Box SurfLink Media Wall Socket...

  • Page 5: Rear Panel Overview

    LED: The LED indicator provides helpful information 4. Coaxial S/PDIF Jack: Digital Coaxial S/PDIF about the current state of SurfLink Media� cables are available at most consumer electronic stores� These cables can also be obtained from 1. Microphone Jack: Mono external microphones your professional (ask for part #52643-000)�...

  • Page 6: Basic Use

    2� Power on your electronic audio source� 3� Attach the other end of RCA cable to the rear of SurfLink Media (jack #2)� 4� Choose appropriate settings for Mono/Stereo switch: • MONO (left position) – if you wear one hearing instrument�...
  • Page 7 ) can stream audio from top switch position� If unsure, contact your hearing All Hearing Instruments professional� 6� Plug the power adaptor into the wall socket� 7� Insert the power adaptor microUSB connector into the rear of SurfLink Media (jack #5)�...
  • Page 8 Turn on SurfLink Media by pressing the front power button until it glows blue� 9� If the rear LED glows solid green, then SurfLink Media is detecting an incoming audio signal� Tip: If the LED does not illuminate, recheck your setup or review Troubleshooting section below.

  • Page 9: Connecting To Power

    Connecting to Power To apply power to SurfLink Media: 1� Plug the power adaptor into a wall socket� Power Supply 2� Insert the power adaptor cable into Power Supply (jack #5)�...

  • Page 10: Using With External Microphone

    1� If there are no AUDIO OUT jacks available on your electronic audio source, then an External Microphone can capture audio� External Microphone 2� Insert the microphone cable into rear of SurfLink Media (jack #1)� 3� Place the microphone near an active speaker� TIP:...

  • Page 11: Connecting To Electronic Audio Sources

    TOSLINK S/PDIF Stereo Fidelity Supply Use jack #4 TIP: If your electronic audio source has multiple AUDIO OUT jacks, only use one. You can connect SurfLink Media to multiple electronic audio sources by using a combination of different cable styles.

  • Page 12: Configuring Audio Settings

    Configuring Audio Settings Mono/Stereo Audio The Mono/Stereo switch supports both Mono and Stereo audio streaming� When Mono is chosen, SurfLink Media merges the left and right audio channels and streams combined audio to a hearing instrument� Appropriate settings for Mono/Stereo switch are: •...

  • Page 13: Led Indicator

    When initially setting up SurfLink Media, a solid green LED confirms that an electronic audio source is outputting audio at a detectable level and the cable is properly attached to SurfLink Media� If you are not hearing streamed audio, troubleshoot by changing memories in your hearing instruments or by pressing the Favorite button (start/stop...
  • Page 14 For example, most television and computer headphone jacks allow a user to turn up the audio being sent from the Audio Out jack� TIP: During initial setup, a solid green LED confirms a proper cable hookup between SurfLink Media and your electronic audio source.

  • Page 15: Front Panel Overview

    Volume adjustments made on SurfLink Media do not affect a hearing instrument microphone volume level, nor do they affect the volume setting of the electronic audio source�...

  • Page 16: Streaming To Hearing Instruments

    On a remote control, the Favorite button ( ) can be used to start and stop audio streaming� To use a remote control during audio streaming, aim the remote control directly at SurfLink Media as the command is actually relayed by SurfLink Media to the hearing instruments�...

  • Page 17: Troubleshooting

    Turn on the electronic audio source� appears to be on� Electronic audio source output is Set the digital output on your electronic audio source to PCM� Audio formats not compatible with SurfLink Media include RAW, Dolby Digital ® correct format� AC3 and MPEG�...

  • Page 18: Safety Information

    International Use Your SurfLink Media 2 is approved to operate at a radio frequency that is specific to your country or region and might not be approved for use outside your country or region� Be aware that operation during international travel may cause interference to other electronic devices, or other electronic devices may cause interference to your SurfLink Media 2�...

  • Page 19: Regulatory Notices

    Such modifications could void the user’s authority to operate the equipment� Hereby, Paradigm declares that SurfLink Media is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC� A copy of the Declaration of Conformity can be obtained from the address indicated to the right�...
  • Page 20 Dolby Digital is a registered trademark of Dolby Laboratories. © 2015 Paradigm, Inc. All Rights Reserved. 81922-007 9/15 BKLT2822-01-EE-XX...
