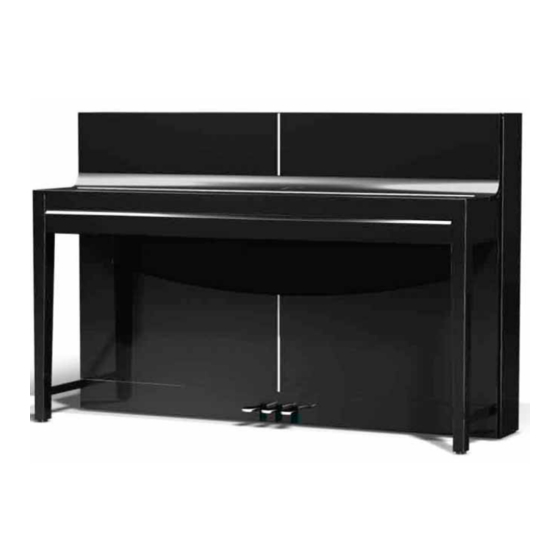

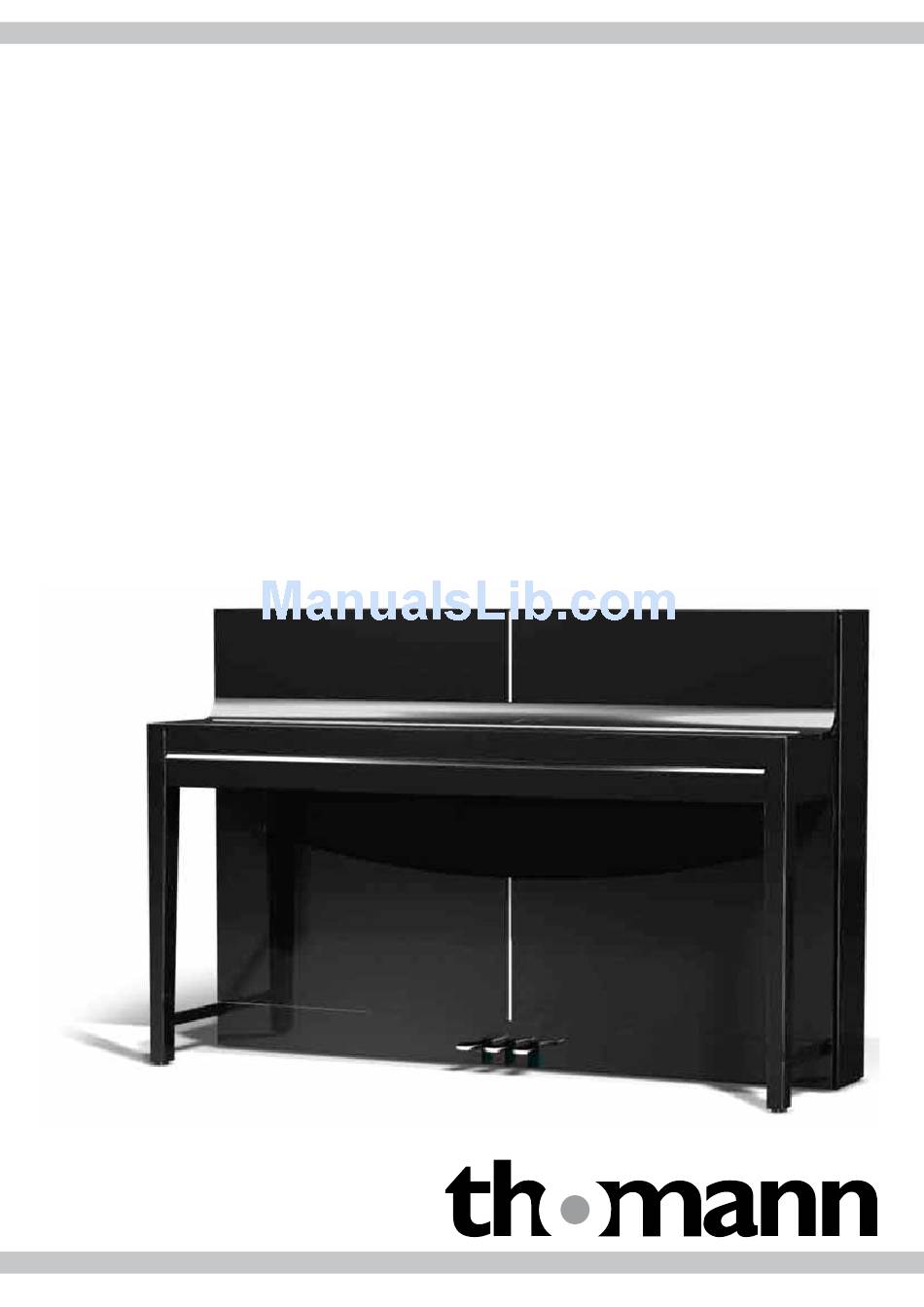

- Page 1 DP-S 307 UP E/P Owner‘s Manual Digital Piano...
-
Page 2: Table Of Contents
Connection to a computer .........................12 Connections ..........................12 Driver software installation ....................... 12 How to adjust audio settings ....................13 Technical specifications ........................14 Protecting the environment .......................15 Disposal of the packaging material ..................15 Disposal of your old device ...................... 15 Thomann DP-S 307 UP... -
Page 3: Safety Notes
Always install and use the device in accordance with these instructions. Notice Malfunction or damage to equipment! This device has been designed for indoor use only. Do not expose the device to any liquid or moisture. Do not install the unit near any direct heat source. Keep the unit away from naked flames. Do not block areas of ventilation. Failure to do so could result in fire. www.thomann.de... -
Page 4: Handling
Notice Damage to equipment! When the top cover is closed, you can put any objects on it. To avoid falling objects, be careful where you place monitors, a laptop, speakers or other devices on the piano. Thomann DP-S 307 UP... -
Page 5: Main Features
Unlimited sound samples The Thomann DP-S 307 UP can be connected to a computer with a USB cable. That means, you can use any VSTs installed in your computer as the sound samples of the Thomann DP-S 307 UP. -
Page 6: Control Panel
Control panel Please open the top cover of the Thomann DP-S 307 UP to access the control panel. It is located inside the cabinet. For reasons of better visibility, the left-hand and the right- hand side of the control panel are shown separately in the following two figures. -
Page 7: Functions
REVERB is preselected when you turn on the Thomann DP-S 307 UP. FX DEPTH This allows you to control the amount of the effect that is mixed in with the Thomann DP-S 307 UP. Choices include HIGH, MID, and LOW. LOW is preselected when you turn on the Thomann DP-S 307 UP. - Page 8 C6 on the keyboard decreases the microphone input level, and E6 increases the microphone input level. You need to use a high-impedance microphone with the DP-S307 UP. MIC LEVEL DOWN (-) UP (+) Thomann DP-S 307 UP...
-
Page 9: Rear Panel
Connectors that are used to connect other MIDI devices such as a sequencer, keyboards, etc. MIDI OUT: MIDI data output (to be connected to the MlDl IN connector of another MlDl device). MIDI IN: Data input (to be connected to the MlDl OUT connector of another MlDl device). USB connector You can connect the provided USB cable to the Thomann DP-S 307 UP for using it with the com- puter. LINE IN/OUT connectors These jacks can be connected to external audio devices with RCA cables. LINE IN: You can connect an MP3 player, a CD player, a radio or any audio player to LINE IN. -
Page 10: Wireless Audio Setup
• Search for and connect with the other Bluetooth device according to your Bluetooth device user’s guide. (Bluetooth PIN: 0000, 4 zeros) Note When the wireless audio module and the other Bluetooth device are paired, press [ ] to reconnect via the previously connected Headset Profile or Hands-Free Profile, or press [ ] to reconnect via the Advanced Audio Distribution Profile. Using music control functions • Press [ ] to listen to music / pause and resume playback. • Press and hold [ ] to stop playback. • Press [] to skip backward or [] to skip forward. • Press and hold [] to scan backward or [] to scan forward in a file. • Press [] or [] to adjust the volume. Specifications • Supported profiles: Hands-free headset, advanced audio distribution, audio/video remote control • Operating range: Up to 10 meters (30 feet) Thomann DP-S 307 UP... -
Page 11: Connection To External Devices
DP-S 307 UP Connections Connect the MIDI OUT connector of the transmitting (master) device to the MlDl IN connector of the receiving (slave) device. To connect the Thomann DP-S 307 UP to a computer, you need a MlDl interface for the com- puter, sequencing or musical notation software, and two standard MlDl cables. MIDI IN MIDI OUT... -
Page 12: Connection To A Computer
Thomann DP-S 307 UP by simply connecting it without a special interface. After connecting, you can use the function of the audio and MIDI interface. Connections It is very easy to connect the Thomann DP-S 307 UP with your computer. Find the USB port on the rear of the Thomann DP-S 307 UP. Connect the provided USB cable (plug type series B) to the Thomann DP-S 307 UP and find the USB port on the computer. Next, plug the Thomann DP-S 307 UP’s USB cable (plug type series A) into the USB port of the computer. MIDI... -
Page 13: How To Adjust Audio Settings
Thomann DP-S 307 UP via external audio equipment. You can also record the sound from the Thomann DP-S 307 UP by using an external audio recorder. You can connect an audio player to the Thomann DP-S 307 UP to listen to music through speakers of the Thomann DP-S 307 UP. -
Page 14: Technical Specifications
Mac OS X (10.3 or later) Dimensions (W × H × D) 144 cm × 105.5 cm × 48 cm (56.7 in. × 41.5 in. × 18.9 in.) 144 cm Weight 115 kg (254 lbs) Thomann DP-S 307 UP... -
Page 15: Protecting The Environment
At the end of its operating life- time, do not dispose the device with your normal household waste. This device is subject to the European directive 2002/96/EC. Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the unit, comply with the rules and regulations that ap- ply in your country. If in doubt, consult your local waste disposal facility. www.thomann.de... - Page 16 16 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de Thomann DP-S 307 UP...
