Adapter Configuration
Wizard • Link Info. • Configuration • Security • Site Survey • About

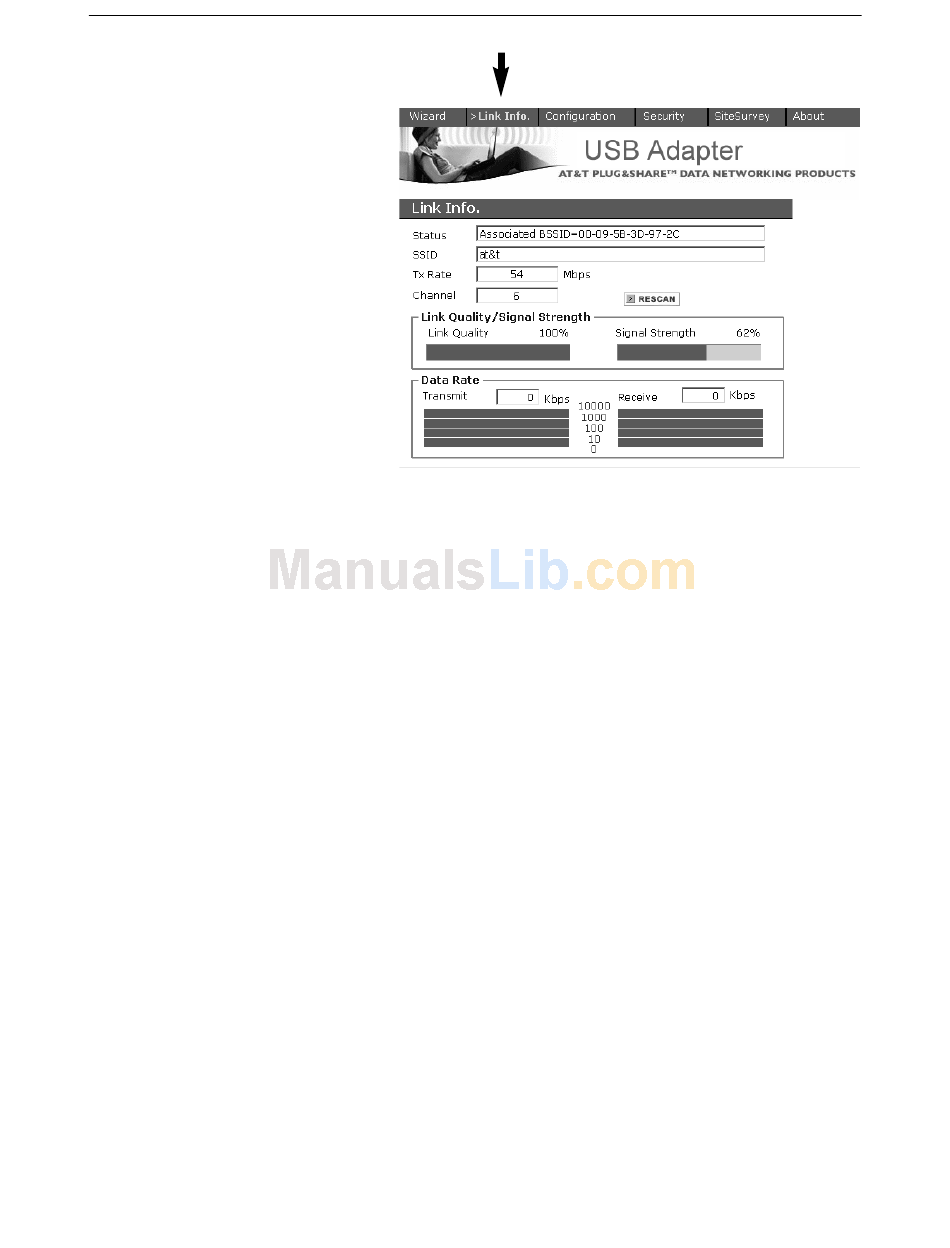

Link Info
This screen displays current settings.
(To change any of these settings, click
Configuration at the top of the screen.)
Status: The MAC address of the
router, or access point, associated
with the wireless adapter.
SSID: The Service Set Identifier of
the network. This is the setting given
to the access point, or router.
TX Rate: The current transmission
speed setting.
Channel: The current channel setting
of the wireless network.
Rescan: Refresh the text fields.
Link Quality/Signal
Strength/Data Rate: The lower part
of the screen displays the current
quality of the network link, strength of
the signal, and the current transmit
and receive rates.
AT&T Plug&Share Wireless USB Adapter 54 Mbps 6602G 7
™
