Description

Description
Purpose and application
The.EASY.Touch.Panel.is.used.to.directly.control.4.light.groups.(expandable.to.16).
and.to.retrieve.as.many.as.64.light.scenes..Integrated.switch.contacts.can.be.used.to.
switch.4.non-dimmable.loads.or.operate.two.blinds/screens..RGB.elements.or.lamps.
with.changeable.colour.temperatures.can.be.controlled.statically.and.dynamically..
Integrating.the.DALI.EASY.makes.the.Touch.Panel.a.full.control.unit.used.to.control.up.
to.4.light.groups.without.the.need.for.additional.components.
On.the.Touch.Panel,.the.operating.elements.can.be.arranged.as.required.and.dis-
played.in.multiple.languages.on.up.to.three.screen.pages.

Function

When.the.user.touches.the.operating.elements,.the.Touch.Panel.evaluates.and.
converts.the.signals.to.digital.control.commands..The.commands.are.transmitted.via.a.
control.line.to.the.respective.electronic.control.gear.units.

Design

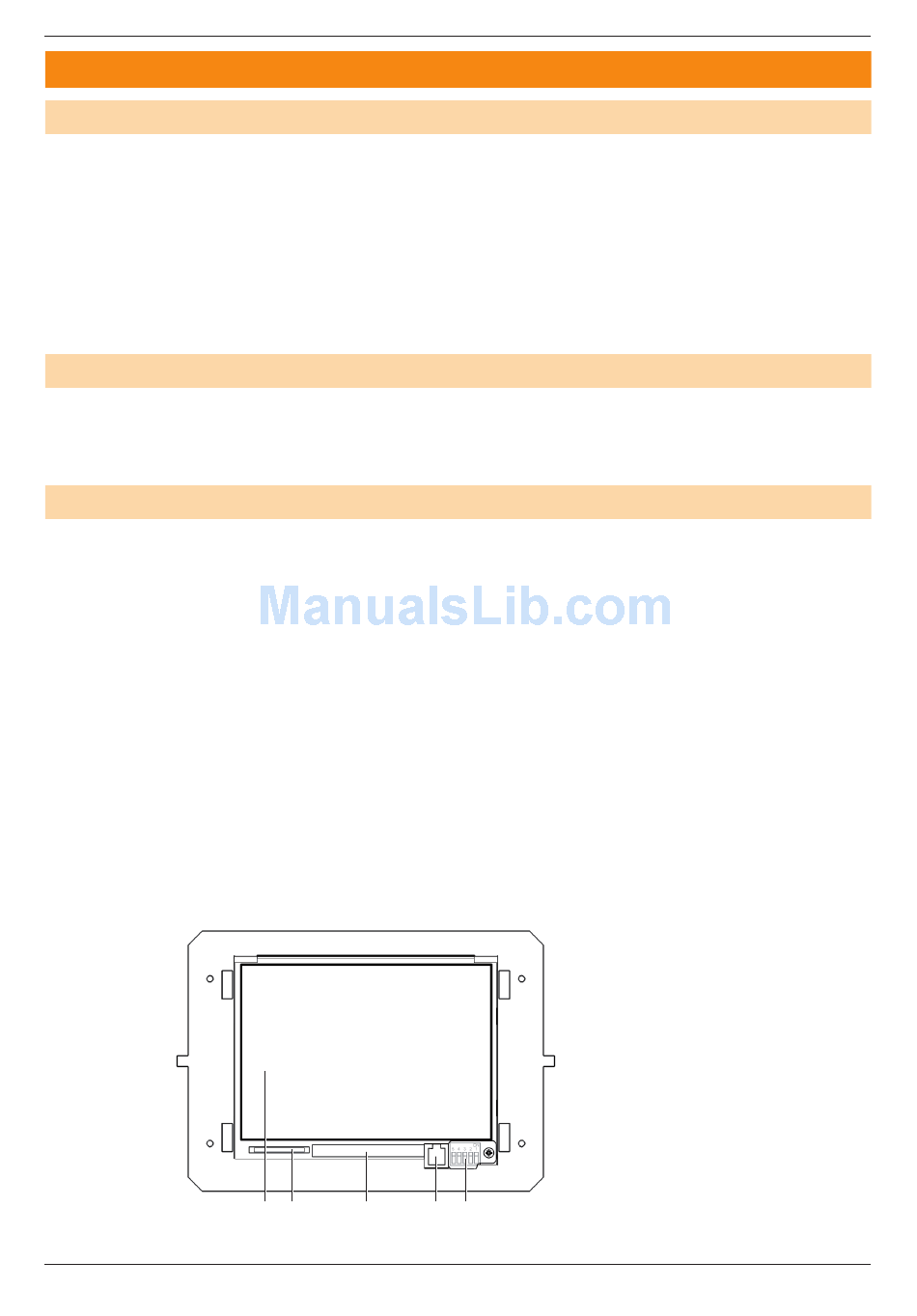

The.touch.panel.consists.of.the.following.components:
•.
Magnetically.fixed,.removable.front.frame
•.
Electronic.box.with.backlit.LCD.and.touch-sensitive.surface.(A)
•.
SD.card.slot.(B)
•.
Operating.LED.(C)
•.
EASY.bus.socket.(D).for.programming.via.PC
•.
DIP.switches.(E).behind.panel
•.
Connector.on.the.right.side:
. –
EASY.bus
•.
Rear.connectors:
. –
Power.supply
. –
DALI.output
. –
EASY.bus
. –
Relays
4
A B C D E
EASY.Touch.Panel
XII.2010
