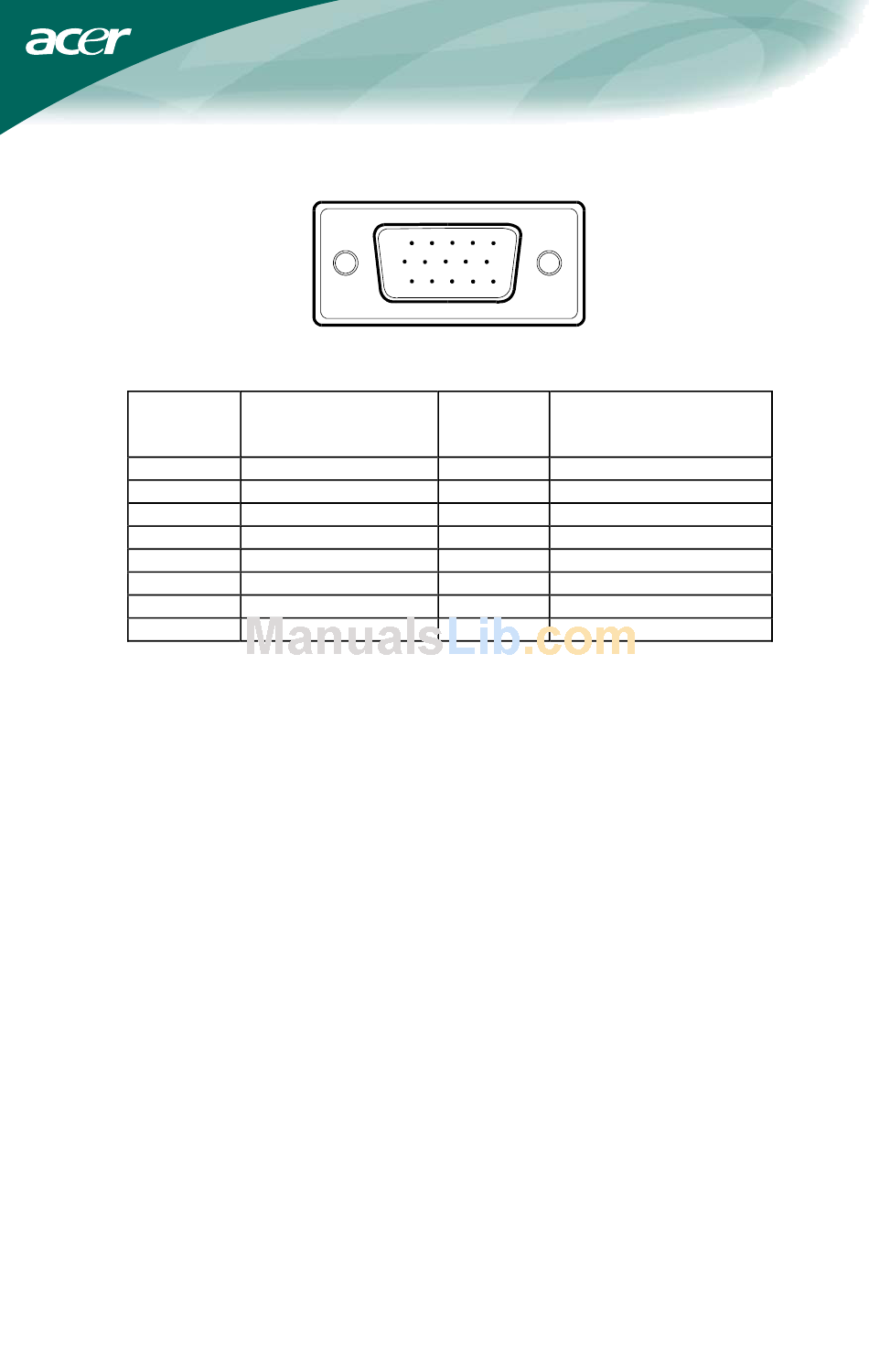

CONNECTOR PIN ASSIGNMENT

15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION
1. Red
2. Green
3. Blue
4. Monitor Ground
5. DDC-return
6. R-Ground
7. G-Ground
8. B-Ground
1 5
6
10
11 15
PIN NO.
9.
10.
11.
12.
13.
14.
15.
19
DESCRIPTION
+5V
Logic Ground
Monitor Ground
DDC-Serial Data
H-Sync
V-Sync
DDC-Serial Clock
