Phone & Feature Guide
AT&T Z223
Find More Information
On The Web:
• Find tutorials at att.com/DeviceHowTo.
• Find device specifications, user manuals, troubleshooting, and user forums
at att.com/DeviceSupport.
• Manage your wireless account, including suspending service if your phone is
stolen, at www.att.com/myatt.
Give Us a Call:
Call AT&T Customer Care at 1-800-901-9878 or dial 611 from any AT&T mobile
phone for assistance with your service or device.
© 2015 AT&T Intellectual Property. All rights reserved. AT&T, the AT&T logo and all other AT&T
marks contained herein are trademarks of AT&T Intellectual Property. All other marks contained
herein are the property of their respective owners.
Printed in China
P/N 081704100474

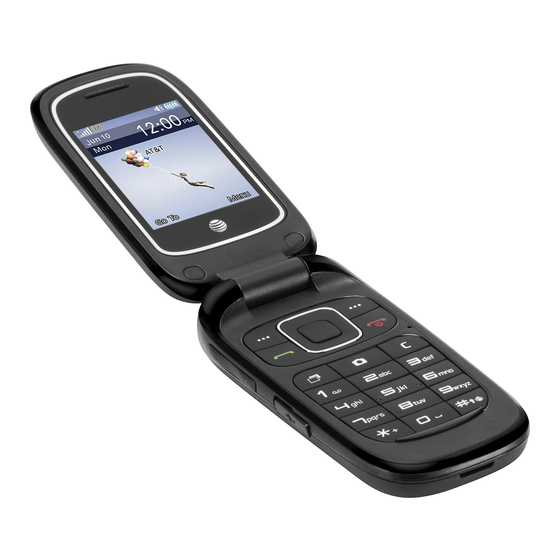

Get to Know Your Phone
(back)
Earpiece
Internal
display
Speaker
Volume up/
down keys
Micro USB
charging port
4-way navigation key
OK key
Right soft key
Left soft key
Power/end key
Send key
Camera key
Microphone
Task key
Clear &
Tips
back key
Voicemail
4-way
From standby mode:
key
navigation
Up: Messaging
key
Down: Address Book
Vibrate
Right: Calendar
Left: My Stuff
mode key
Send key
From standby mode, press to
view call history.
# key
From standby mode, hold
Note: For more information on your device,
to activate silent mode with
vibration.
visit att.com/DeviceHowTo.
Accessories
Accessories for your phone are available at att.com/WirelessAccessories or
visit your local AT&T store.
Bluetooth Headset
Headset
USB Cable
Vehicle Power Charger
Insert a SIM/Install Battery
You'll need to set up your Z223 before you
can explore all of its great features.
Remove the back cover of your phone.
Your new GoPhone SIM card is pre-
installed. If you are an existing AT&T
customer, replace it with your current SIM
(see instruction #3 below).
Camera
If your SIM does not fit, call Customer
lens
Care at 800-331-0500. Enter your mobile
number, select the option for Technical
Support, and then follow the prompts to
External
speak to a representative.
display
To insert a SIM card, push the SIM into the
card slot with the gold-colored contacts
facing down and the cut corner at the
upper left.
Insert the battery, making sure the
connectors align. Gently push down on
the battery until it clicks into place.
Replace the back cover.
Using Bluetooth
®
Take advantage of Bluetooth wireless technology to
pair your phone with headsets, computers, and more.
Pairing
Before you begin, place your Bluetooth device
into pairing mode.* From standby mode, press the
Right Soft Key for Menu.
Select Settings (9).
Select Connections (4) and then choose
Bluetooth (1).
Press the OK Key
to enable Bluetooth.
Select Search for new device (5).
Highlight the name of the device that you would like
to pair with and press the OK Key
.
If prompted for a passkey,* enter the passkey and
press the Left Soft Key for Pair.
Connecting
If your device did not automatically connect, you
can connect to it from the Bluetooth menu. Select
My devices (3).
Highlight the device name and press the OK Key
for Connect.
Please consult the documentation included with the
*
Bluetooth device for information on placing the device
into pairing mode and entering the passkey (typically
0000 – four zeros).
Taking and Sending Pictures
Capture those special moments right from your phone,
and then edit your photos for a custom feel. It's easy.
Taking a Picture
From standby mode, press Camera Key
to
access the camera.
Line up your shot in the camera viewfinder.
Press the OK Key
for Capture to take the photo.
Sending a Picture
After taking a picture, press the Left Soft Key for
Options.
Select Send (1) and then Via Message (1).
Enter the recipient's phone number(s). You can also
press the OK Key
for Contacts to add recipients
from the Address Book.
Scroll down to the Text field and compose your
message.
When you are finished typing, press the OK Key
to
send your message.
Mobile Web
Browse the web directly from your mobile phone!
Check the weather, visit your favorite websites, and
enjoy access to the Internet on the go.
From standby mode, press the OK Key
.
To visit a particular website, press the Left Soft Key
for Options and select Open (3).
Choose New Link (1), enter the web address, and
press the OK Key
.
To add a bookmark, press the Left Soft Key for
Options, select Add to Bookmarks (5), and press
the OK Key
for Save.
To access your bookmarks, press the Left Soft Key
for Options and select Open (3) Bookmark (3).
