• Details of DIAG menu

With full-bit output specified in some modes, it is possible to execute 0dBFS output without head margin in each channel.
1. YSS938
This function is for YSS938 only. Main DSP of YSS938 is selected for MAIN L/R output.
Using the sub-menu, it is possible to select the analog bypass, 0dB output level or full-bit output.
ANALOG BYPASS
Analog A/D
Digital

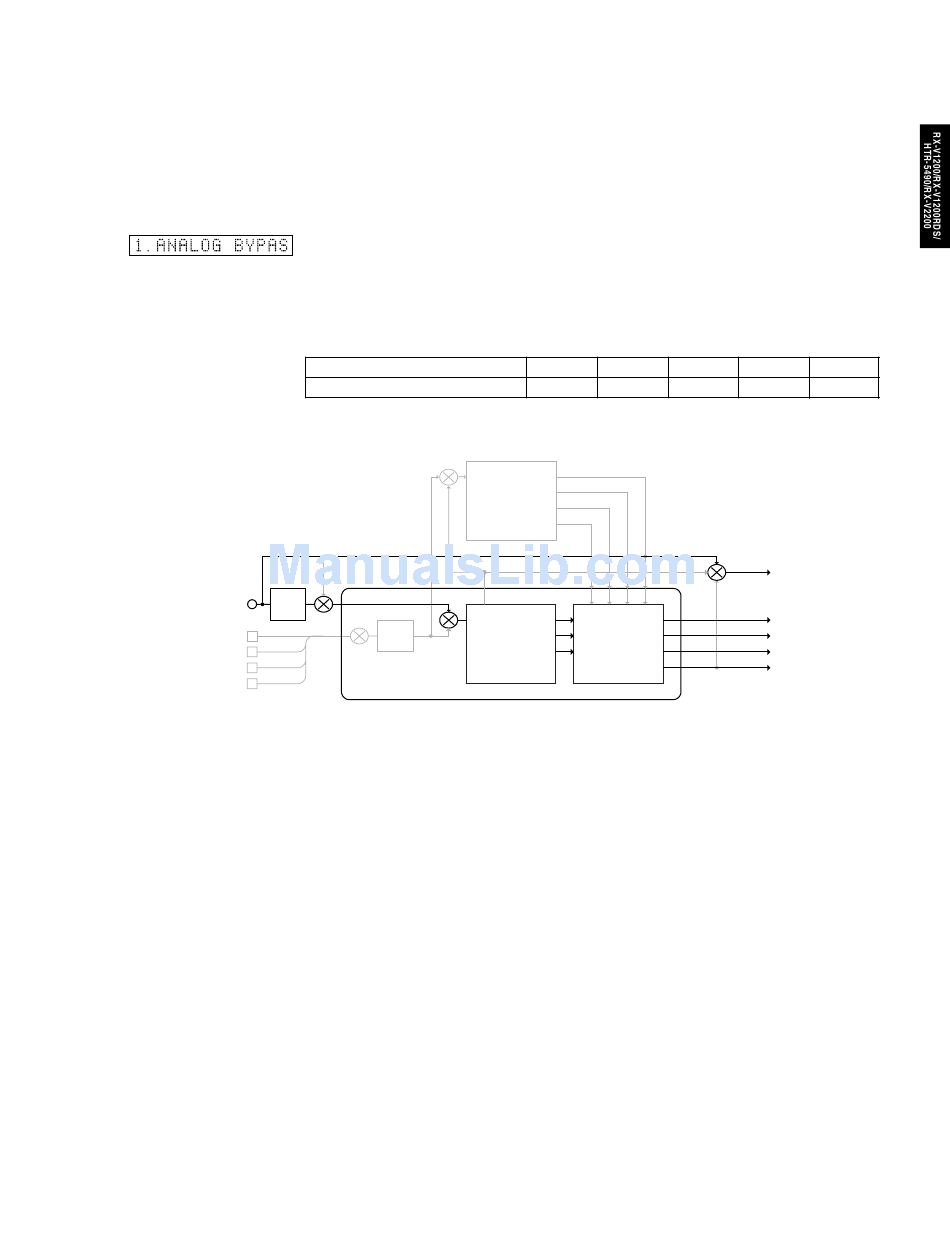

• The signal is output through the signal path as shown below.
• The signal for L/R is output as it is without passing through the DSP section.
Reference data (PRE OUT)
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
Condition
Both ch, -20 dBV, volume -10 dB -5.5 dBV
Main DSP
DIR
YSS938
RX-V1200/RX-V1200RDS/HTR-5490/RX-V2200
MAIN L/R CENTER REAR C
-5.5 dBV
CS49329
Sub DSP
DD/dts Through
SWFR RL/RR
-5.5 dBV -2.5 dBV -5.5 dBV
L/R
C
RC/SW
FL/FR
RL/RR
20
