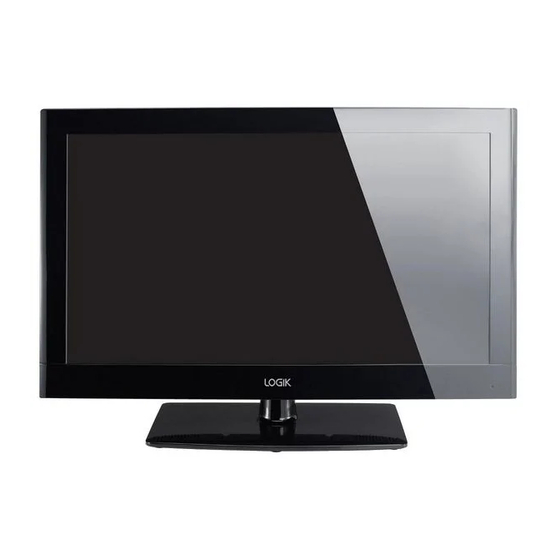

32" 3D Ready LCD TV
Instruction Manual
L323CD11
L323CD11_IB_111011_Zell.indd 1
11/10/2011 9:14 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L323CD11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Logik L323CD11

Summary of Contents for Logik L323CD11

  • Page 1 32" 3D Ready LCD TV Instruction Manual L323CD11 L323CD11_IB_111011_Zell.indd 1 11/10/2011 9:14 PM...
  • Page 2 L323CD11_IB_111011_Zell.indd 2 11/10/2011 9:14 PM...

  • Page 3: Table Of Contents

    Contents Preparation ......................................5 Unpacking the TV ..........................................5 Installing / Removing the Base Stand ..................................6 Front / Right Side View and Controls ...................................7 Rear View and Sockets ........................................8 Installing Batteries in the Remote Control ................................9 Remote Control Operation Range ....................................9 Remote Control ..........................................10 Connections ......................................12 Making Video and Audio Connections ..................................12 Connecting an AV Device with an HDMI Cable ..............................12...
  • Page 4 Using the Features ...................................41 EPG (Electronic Programme Guide) (DTV Mode) ..............................41 − Switch On / Off EPG ......................................41 − Select a Programme ......................................41 Teletext (ATV Mode) ........................................42 − To Turn on Teletext Function................................... 42 Digital Teletext (DTV Mode) ......................................42 −...

  • Page 5: Preparation

    Thank you for purchasing your new Logik 32" 3D Ready LCD TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual in order that you fully understand these features.

  • Page 6: Installing / Removing The Base Stand

    Installing / Removing the Base Stand The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it.

  • Page 7: Front / Right Side View And Controls

    Front / Right Side View and Controls Item Description Receives IR signals from the remote control. IR (Infrared Receiver) Do not put anything near the sensor, as its function may be affected. Illuminates green when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode.

  • Page 8: Rear View And Sockets

    Rear View and Sockets Common Interface AC POWER IN POWER SWITCH Headphone out Digital HDMI1 HDMI2 HDMI3 PC audio SCART Audio out R in L in Aerial Audio out 10 11 Socket Description To connect to a DVD player, Digital Set-Top-Box, or other AV devices with audio input AUDIO OUT (L/R) sockets.

  • Page 9: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control 1. Press and lift the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment.

  • Page 10: Remote Control

    Remote Control Mutes and restores your TV sound. Switches the TV between on and standby mode. 3. Source Select among the different input signal sources: DTV / ATV / AV / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / USB.
  • Page 11 Allows you to navigate the OSD menus and adjust the system settings to your preference. • Confirm the selection in the OSD menus. • Display channel list. (ATV / DTV mode) 20. P • Press the P button once and then press the buttons to select picture mode: Dynamic / Standard / Mild / Personal.

  • Page 12: Connections

    Connections Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete.

  • Page 13: Connecting A Computer With A Vga Cable

    Connecting a Computer with a VGA Cable 1. Use a VGA cable to connect the TV’s PC input Rear View of TV socket to a computer’s VGA output socket. Use an Common Interface audio cable to connect the TV’s PC AUDIO input AC POWER IN POWER SWITCH Headphone out...

  • Page 14: Connecting An Av Device With A Scart Cable

    Connecting an AV Device with a SCART Cable Rear View of TV 1. Use a SCART cable to connect the TV’s SCART input Common Interface socket to an external AV device’s SCART output socket. AC POWER IN POWER SWITCH Headphone out Digital HDMI1 HDMI2...

  • Page 15: Connecting A Digital Audio Receiver

    Connecting a Digital Audio Receiver For better sound quality, you may want to play the audio through your multi-channel audio receiver. 1. Use an audio cable to connect the TV’s Digital Rear View of TV Audio out socket to an external audio receiver’s Common Interface audio coaxial input socket.

  • Page 16: Connecting Headphones

    Connecting Headphones Rear View of TV Connect your headphones to the TV’s socket. Common Interface Before putting on headphones, turn the volume down then put the headphones on and slowly increase the AC POWER IN POWER SWITCH Headphone out Digital HDMI1 HDMI2 HDMI3...

  • Page 17: Initial Setup

    Initial Setup Turning the TV on for the First Time 1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the Aerial socket at the rear bottom of your TV. Do not connect the TV to the mains supply until you have completed all the connections.

  • Page 18: Target Region Descriptor

    6. Press the buttons to navigate the menu and change the Please select an OSD Language settings. Press the OK button to confirm. English Español Français OSD Language Select your desired language to be displayed on the menu. The default on-screen menu language Deutsch Português Italiano...

  • Page 19: Selecting The Input Source

    Selecting the Input Source 1. Press the TV/AV button at the front right side of the TV or the Source button Input Source on the remote control to display the Input source list. 2. Press the buttons to select the input source that you want: DTV / ATV / AV / SCART / YPBPR / HDMI1 / HDMI2 / HDMI3 / PC / USB.

  • Page 20: Customising Tv Settings

    Customising TV Settings Channel Setting (TV, DTV or Radio Mode) Auto Tuning (ATV / DTV mode) Use this to automatically find and store all available channels. This is normally recommended if some channels have been added or removed by the broadcaster or if you have moved house. 1.

  • Page 21: Atv Manual Tuning (Atv Mode)

    ATV Manual Tuning (ATV mode) Allows you to make manual fine tuning adjustments if the channel reception is poor under ATV mode. 1. Press the Menu button and then press the buttons to select the CHANNEL menu and then press the OK button. CHANNEL PICTURE SOUND...

  • Page 22: Channel Edit (Atv Mode)

    2. Press the buttons to select DTV Manual Tuning and then press the OK button. Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(USB) 3. The DTV Manual Tuning screen will pop up. Press the buttons DTV Manual Tuning to select the desired UHF channel and then press the OK button to UHF CH 21...

  • Page 23: Channel Edit (Dtv Mode)

    d. Skip Press the BLUE button to select the channels that you want to skip when you are selecting channels. Press the BLUE button again to undo it. 4. Press the Menu button to return back to the main menu. 5.

  • Page 24: Ci (Common Interface) (Dtv Mode)

    2. Press the buttons to select Signal Information and then press the OK button to view the signal information. Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(USB) 3. Press the Menu button to return to the previous menu. Signal Information 4.

  • Page 25: Software Update (Usb)

    2. Press the buttons to select CI Information and then press the OK button. Auto Tuning DTV Manual Tuning Channel Edit Signal Information CI Information Software Update(USB) 3. A CI Information Main menu will pop up. Press the buttons to CI Information display the module information, smart card information, language, Conax Conditional Access...

  • Page 26: Picture Setting

    Picture Setting Allows you to set your preferred picture mode. 1. Press the Menu button and then press the buttons to select the PICTURE menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION LOCK EXIT 2. Press the buttons to select the following picture options and then Picture Mode Standard...

  • Page 27: Sound Setting

    PC SETUP Press the buttons to adjust the PC desktop content and then press the OK button to confirm. (PC mode only) Auto Allows you to synchronise a PC signal Adjust automatically. H-Offset Adjusts the position of the picture Auto Adjust left and right in the window.

  • Page 28: Stereo / Dual Sound Reception (Atv Mode)

    2. Press the buttons to select the following sound options and then press the OK button. Sound Mode Standard Treble Bass Balance Auto Volume SRS TruSurround HD SPDIF Mode Auto AD Switch Sound Mode Press the buttons to select an audio-enhancement technique: Standard / Sound Mode Music / Movie / Sports / Personal and then press the OK button to confirm.

  • Page 29: Speaker Sound Output Selection (Dtv Mode)

    Speaker Sound Output Selection (DTV Mode) Audio Language While watching a DTV programme, you can press the S button to display English MPEG the audio language list (only applicable when the TV programme has this English MPEG V.I. feature). Press the buttons to select an audio language or audio format if available and then press the buttons to select sound track between...

  • Page 30: Option Setting

    Sleep Timer The sleep timer automatically switches the TV to standby Sleep Timer after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be 10min set before using Sleep Timer function. 20min 30min Press the...

  • Page 31: Tt Language

    2. Press the buttons to select OSD Language and then press the OK button. The default on-screen menu language is set as English. OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired PVR File System Aspect Ratio Auto Blue Screen...

  • Page 32: Audio Language (Dtv Mode)

    Audio Language (DTV Mode) Allows you to select your desired audio language. (Available for digital channels if multiple audio languages are broadcast.) 1. Press the Menu button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND...

  • Page 33: Hearing Impaired

    3. Press the buttons to select the Primary / Secondary Subtitle Subtitle language Primary Language. Press the button and then press the buttons to select your desired subtitle language. Press the OK button to confirm Česky English Français and return to the previous menu. 4.
  • Page 34 2. Press the buttons to select PVR File System and then press the OK button. OSD Language English TT Language West Audio Language English Subtitle Language English Hearing Impaired PVR File System Aspect Ratio Auto Blue Screen Restore Factory Default Select Disk Select the disk where you want to store your recorded content.

  • Page 35: Aspect Ratio

    Aspect Ratio Allows you to watch the screen in various picture formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Subtitle / Dot to Dot. 1. Press the Menu button and then press the buttons to select the OPTION menu and then press the OK button.

  • Page 36: Blue Screen

    Blue Screen Allows the blue background to turn On or Off during weak or no signal conditions. 1. Press the Menu button and then press the buttons to select the OPTION menu and then press the OK button. CHANNEL PICTURE SOUND TIME OPTION...

  • Page 37: Lock Setting

    Lock Setting To access the LOCK menu, you must enter the password. Enter the default password “0000” for first time use. To change the password, please refer to page 37 "Set Password”. Lock System The Lock System is designed to prevent accidental retuning of the TV / losing channels and prevent children watching unsuitable programmes.

  • Page 38: Block Channel

    2. Press the buttons to select Set Password and then press the OK button. Lock System Set Password Block Channel Parental Guidance Key Lock 3. Use the 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for confirmation. Please enter old password • The default password is “0000”.

  • Page 39: Parental Guidance

    4. Press the buttons to select Block Channel and then press the OK button. Lock System Set Password Block Channel Parental Guidance Key Lock 5. A Block Channel screen will pop up. Press the buttons to select a Block Channel channel.

  • Page 40: Key Lock

    4. Press the buttons to select Parental Guidance and then press the OK button. Lock System Set Password Block Channel Parental Guidance Key Lock 5. Press the buttons to select an age rating: Off, 4-18. Then press the OK Parental Guidance button to confirm to return to the previous menu.

  • Page 41: Using The Features

    Using the Features EPG (Electronic Programme Guide) (DTV Mode) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster).

  • Page 42: Teletext (Atv Mode)

    Teletext (ATV Mode) Teletext is a free service broadcast by some TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics. Using the Teletext control buttons you can view pages of information that are listed in the teletext index.

  • Page 43: Entertainment

    Entertainment 3D Imaging 3D Technology This TV can display in 3D via 3D broadcasting or when the TV is connected to a compatible device, such as a Blu-ray 3D Player. You need such a device to watch the TV in 3D. The 3D TV displays two separate pictures formatted for each eye. The viewer needs to wear 3D glasses in order to see these images in 3D format.

  • Page 44: 3D Imaging Viewing Range

    3D Imaging Viewing Range TV size, viewing angle & other circumstances may change the viewing distance and the angle of view. Top View Side View 10° 150 - 200 cm 35° 10° 150 - 200 cm 35° Watching 3D TV 1.

  • Page 45: Connecting A Usb Storage Device

    2. Press the buttons to select the following picture options and then Picture Mode Standard press the OK button. Contrast Brightness Colour Tint Sharpness Colour Temp Normal Noise Reduction PC SETUP 3D Type Exchange 3D L/R 2D to 3D 3D to 2D 3D Type Press the buttons to choose a suitable 3D playback mode by matching the format of your 3D...

  • Page 46: Viewing Photos

    Viewing Photos 1. Press the TV/AV button at the front right side of the TV or the Source button on the remote control and then press the buttons to select the USB mode and then press the OK button to display the root menu. 2.

  • Page 47: Watching Movies

    3. Press the buttons to select your storage device and then press the OK button. 4. Press the buttons to navigate in the music folder and then press the OK button. Select the music you want to play and then press the OK button to play it.

  • Page 48: Viewing Texts

    5. Press the Info button or the OK button to display the function bar. buttons and then press the OK button to select the Press the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info / Aspect Ratio.

  • Page 49: Pvr (Personal Video Recorder)

    PVR (Personal Video Recorder) Time Shift Function (DTV Mode) This function allows the TV to virtually record the live viewing broadcast programme. If the transfer rate of the USB storage device is too slow • Time Shift Mode and Recording functions for recording or time shift function, a warning statement may not work if the signal strength is weak.

  • Page 50: Recording Dtv Programme Onto A Usb Storage Device

    Recording DTV Programme onto a USB Storage Device Use this function to record the DTV programme you are watching on the main screen and save them for future viewing. Make sure that your connected USB storage device has enough available memory space. 1.

  • Page 51: Play Recorded Programme

    3. After finishing all the recorder adjustments, press the OK button to confirm your settings. A Timer Save Success screen will display. Timer Save Success 800 TVE 1 11 Mar 2008 10:00 4. The Schedule List will then be displayed with your preset reminders shown. Schedule List 15:30 10th Mar Delete...
  • Page 52 5. Press the Info button or the OK button to display the function bar. 6. Press the buttons and then press the OK button to select the function: Pause / FB / FF / Prev. / Next / Stop / Repeat All / Set A / Playlist / Info. 7.

  • Page 53: Maintenance

    Maintenance Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to press the STANDBY button at the front right side of the TV when viewed from the front or the button on the remote control. Disconnect the mains cable from the mains socket before any cleaning.
  • Page 54 The audio function does not work. • Press the VOL + / - buttons. Picture OK but no sound • Sound muted? Press the button. • Try another channel. The problem may be caused by the broadcaster. No output from one of the speakers • Adjust the Balance settings in the SOUND menu.

  • Page 55: Display Modes

    Display Modes Display Modes The screen resolution has been optimised during production for the display modes listed below. YPbPr Mode Resolution Vertical Frequency (Hz) Aspect Ratio 480I: 720 x 480 480P: 720 x 480 576I: 720 x 576 576P: 720 x 576 Auto / Smart Zoom / Zoom / 16:9 / 720P: 1280 x 720 4:3 / Dot to Dot / Subtitle...

  • Page 56: Specifications

    Specifications Specifications Model L323CD11 Panel System 32 inch LCD Panel Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical) Television System PAL I / BG / DK / SECAM BG/DK Brightness 340 cd/m Contrast Ratio 1100:1 Power Source 100-240V~50/60Hz Energy Efficiency Class Screen Size (measured diagonally) Approx.
  • Page 57 ENERG L323CD11 kWh/annum Watt inch - 2011 2010/1062 L323CD11_IB_111011_Zell.indd 57 11/10/2011 9:14 PM...

  • Page 58: Safety Warnings

    Safety Warnings Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting / disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit.
  • Page 59 Headphones Service • Listening to loud sounds for prolonged periods of time • To reduce the risk of electric shock, do not remove may permanently damage your hearing. screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified •...
  • Page 60 TruSurround HD, SRS and the symbol are trademarks of SRS Labs, Inc. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: 120010001-L323CD11) L323CD11_IB_111011_Zell.indd 60 11/10/2011 9:14 PM...
